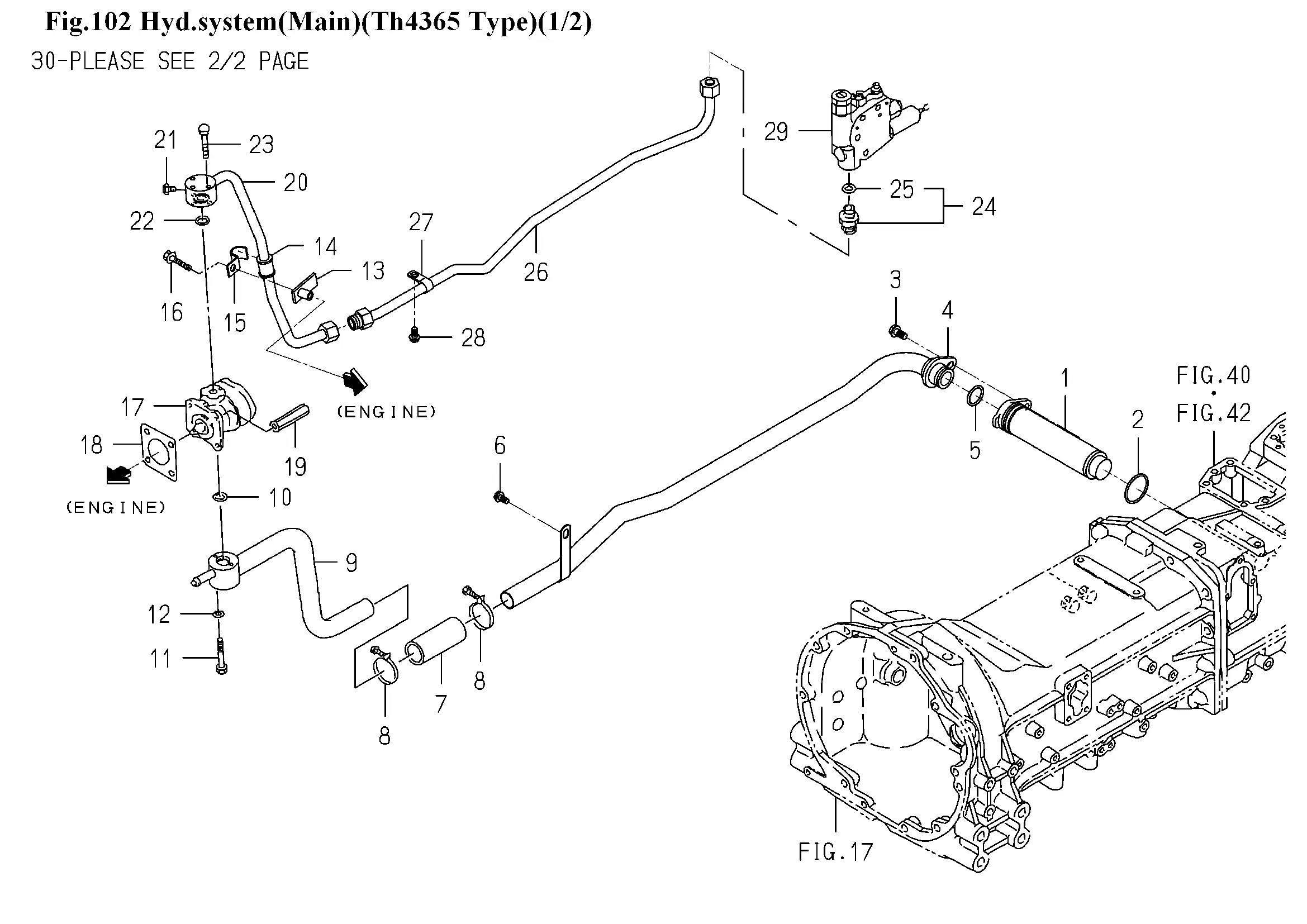

Hydraulikpumpe, Hydraulikleitung
Ersatzteile (44 Teile)
1
Hydraulikfilter
2
O-RING/1A,G45
3
V231-361-002-00
4
PIPE/SUC/R/HST COMP
5
O-RING/1A,P28
6
FLANGEBOLT/M8X16
7
Schlauch
8
J061-232-040-00
9
1772-508-210-10
10
O-RING/1B,P20
11
BOLT/M6X55/7T
12
V401-160-006-00
13
HOLDER COMP
14
HOLDER/PIPE
15
1710-508-551-00
16
BOLT,SP/M8X30/7T
17
PUMP/GEAR ASSY
18
PACKING,OIL PUMP
19
NUT/M08
20
PIPE/DEL/FRONT COMP
21
PLUG/SCREW/SEAL
22
O-RING/1B,P20
23
BOLT,S/M6X35/7T
24
1729-508-290-20
25
O-RING/1B,P14
26
PIPE/DEL/M/HST COMP
27
1675-508-003-00
28
FLANGEBOLT/M8X16
29
VALVE/INDEPENDENT
30
O-RING/1B,P10A
31
O-RING/1B,P12
32
O-RING/1B,P14
33
1773-508-250-20
34
O-RING/1B,P14
35
BOLT,S/M8X35
36
1729-508-290-20
37
O-RING/1B,P14
38
PIPE/PTO/HST COMP
39
ADAPTOR/PF1/4 ASSY
40
O-RING/1B,P11
41
ADAPTER/L/PF1/4 ASSY
42
O-RING/1B,P11
43
HOLDER/10
44
V231-360-801-20
