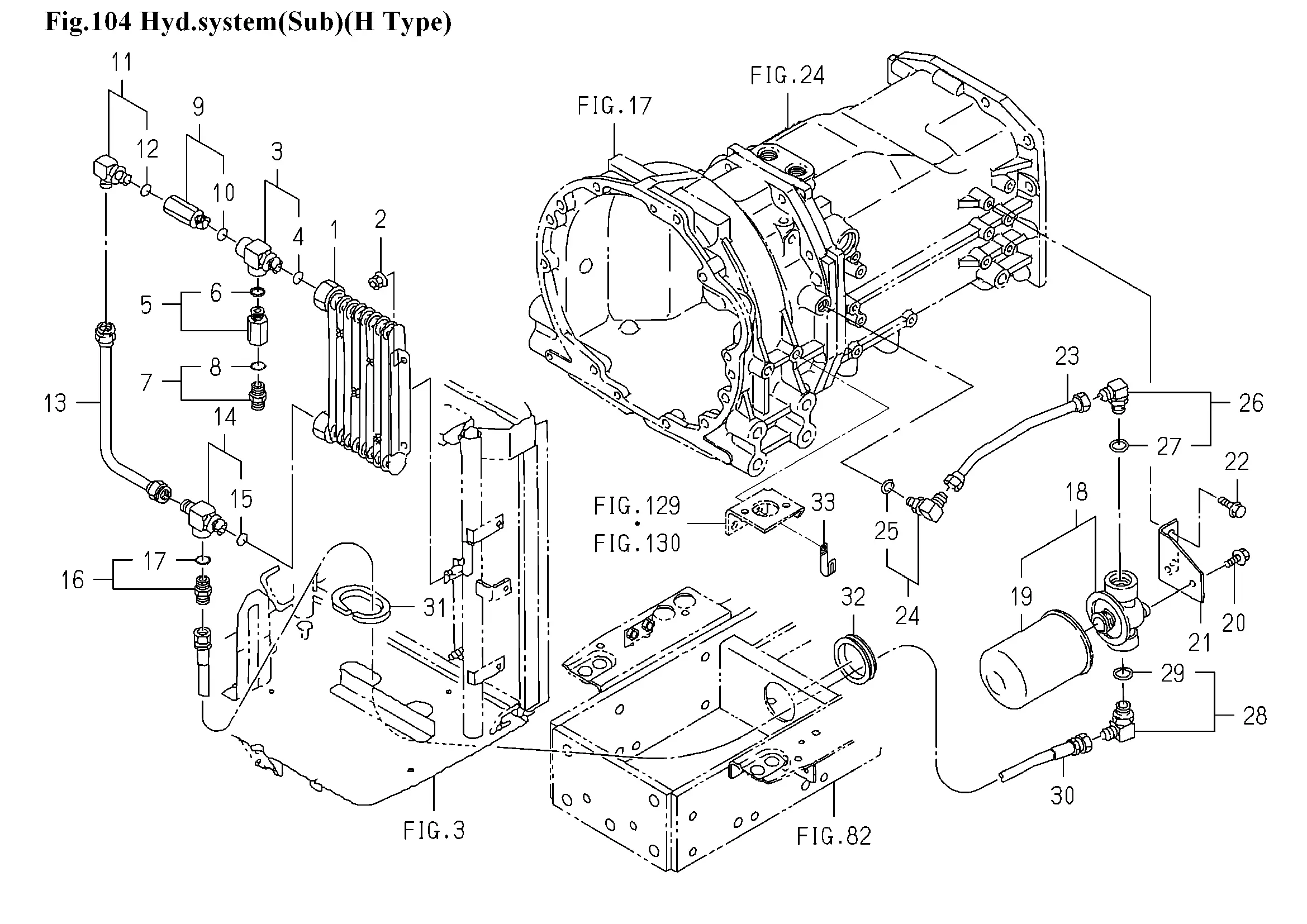

Ölkühler
Ersatzteile (33 Teile)
1
COOLER/OIL ASSY
2
Kombimutter-M8
3
ADAPTER/G3/8ASSY
4
O-RING/1B,P14
5
ADAPTER/G3/8-PF1/4
6
O-RING/1B,P14
7
ADAPTER/G1/4 ASSY
8
O-RING/1B,P11
9
VALVE/CHECK ASSY
10
O-RING/1B,P14
11
ADAPTER/L/PF3/8 ASSY
12
O-RING/1B,P14
13
PIPE/CHECKVALVE COMP
14
ADAPTER/G3/8ASSY
15
O-RING/1B,P14
16
ADAPTER/PF3/8 ASSY
17
O-RING/1B,P14
18
FILTER/CHARGE ASSY
19
Hydraulikfilter
20
FLANGEBOLT/M8X16
21
1743-509-003-00
22
FLANGEBOLT/M8X16
23
PIPE/HST COMP
24
ADAPTER/L/PF3/8 ASSY
25
O-RING/1B,P14
26
ADAPTER/L/G3/4 ASSY
27
O-RING/1B,P24
28
ADAPTER ASSY
29
O-RING/1B,P24
30
HOSE/1520 ASSY
31
PAD/190
32
1725-410-078-00
33
CLAMP,HARNESS
