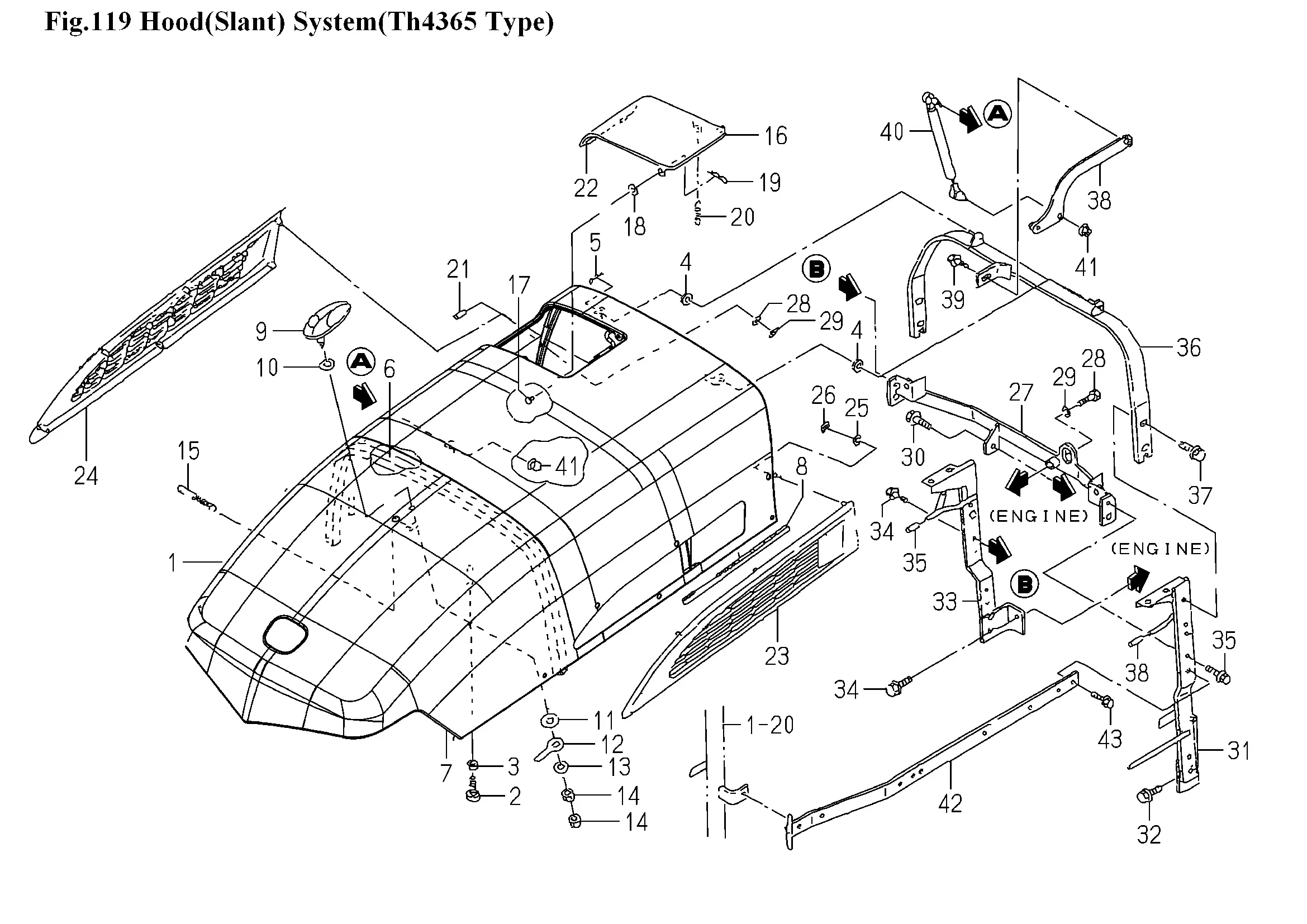

Motorhaube
Ersatzteile (43 Teile)
1
Motorhaube
2
1421-602-005-10
3
NUT/M8/7T
4
CUSHION/RUBBER/10X25
5
PIN/SNAP
6
1729-601-004-20
7
TRIM/150
8
TRIM/270
9
Handgriff
10
WASHER/12X25X02
11
3610-440-018-00
12
ARM/PLATE
13
WASHER,PL/M8
14
NUT/M8
15
SPRING/HE089
16
COVER COMP
17
PIN/06X07
18
V411-260-006-00
19
PIN/SNAP
20
SPRING/HE036
21
TUBE/06X10X20
22
TRIM/20
23
1729-601-002-20
24
1729-601-003-20
25
WASHER/6X14X3
26
NUT,SPEED/M6
27
1729-601-300-10
28
V203-361-003-50
29
WASHER,SP/M10
30
FLANGEBOLT/M8X16
31
1733-601-200-10
32
V231-360-802-00
33
1733-601-210-00
34
V231-360-802-00
35
TUBE/07X09X30
36
1729-601-240-10
37
BOLT,SP/M8X20
38
1729-601-250-20
39
V231-360-802-00
40
DUMPER/HOOD ASSY
41
Kombimutter-M8
42
1729-601-260-30
43
V231-360-802-00
