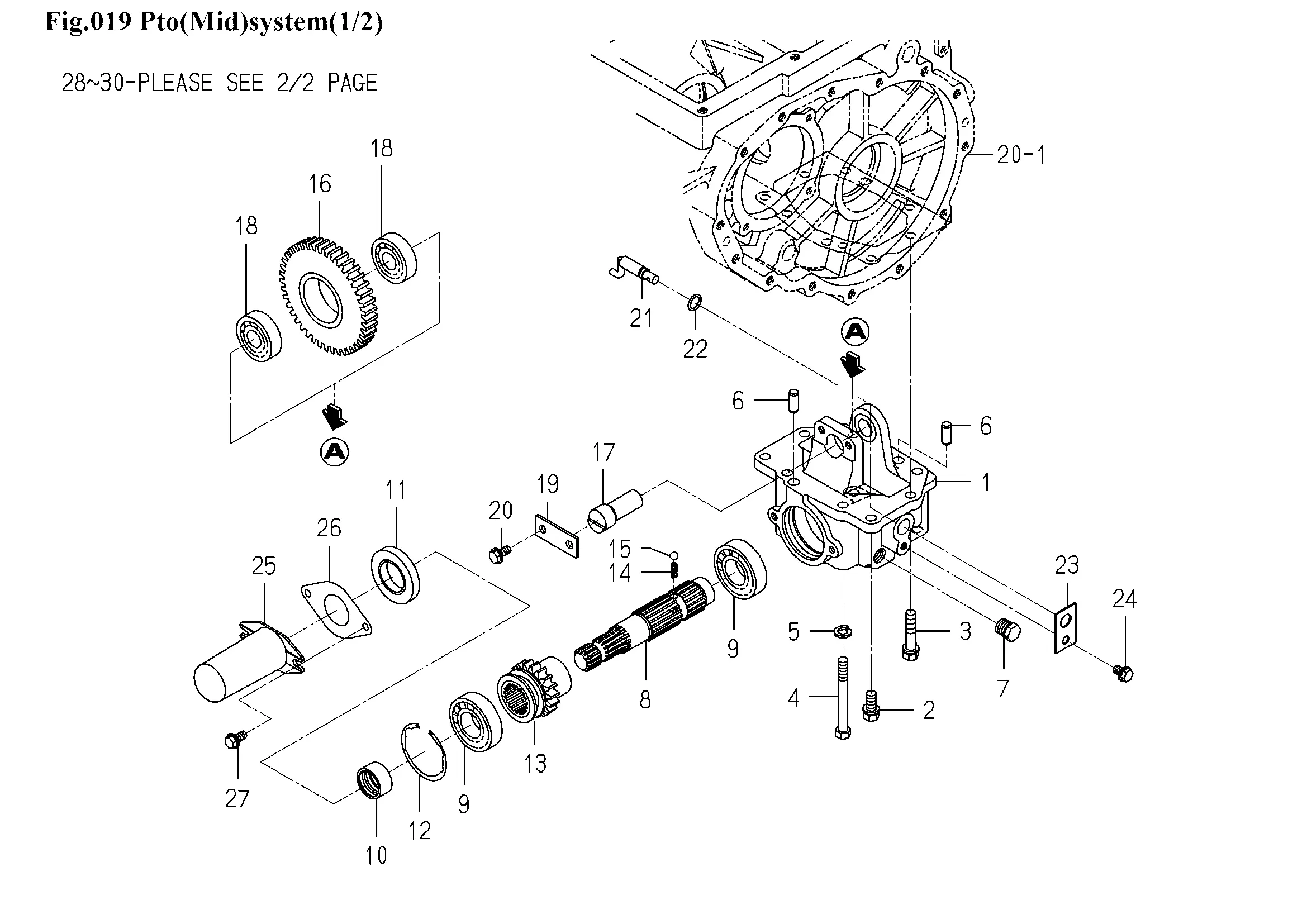

Zwischenachs PTO
Ersatzteile (42 Teile)
1
1848-229-001-00
2
BOLT,S/M10X25/7T
3
V211-561-005-00
4
V201-361-009-00
5
WASHER,SP/M10
6
PIN,ST,B/10X24
7
PLUG/SCREW/SEAL
8
1848-229-002-00
9
BEARING/BALL
10
1480-212-004-10
11
SEAL/OIL
12
RING,SNAP/R62
13
GEAR/SPUR/18
14
SPRING,SHIFTER
15
BALL,STEEL
16
GEAR/SPUR/41
17
1620-255-207-10
18
1603-322-003-00
19
PLATE/I 25X60
20
FLANGEBOLT/M8X16
21
ARM/SHIFT/MID COMP
22
O-RING/1A,P14
23
PLATE/I/30X50
24
V231-360-801-20
25
1444-314-009-10
26
PLATE
27
V231-360-801-20
28
ARM/PTO/MID COMP
29
PIN,SPRING/6X25 W
30
ROD/MID COMP
31
WASHER/6X24X2
32
V401-160-006-00
33
V301-260-006-00
34
1848-229-240-10
35
BUSH/22X25X25
36
1514-312-003-00
37
RING,SNAP/22 C
38
1848-229-005-00
39
BOLT,SP/M8X16
40
GRIP/PTO/E1
41
1758-505-002-00
42
TRIM/30
