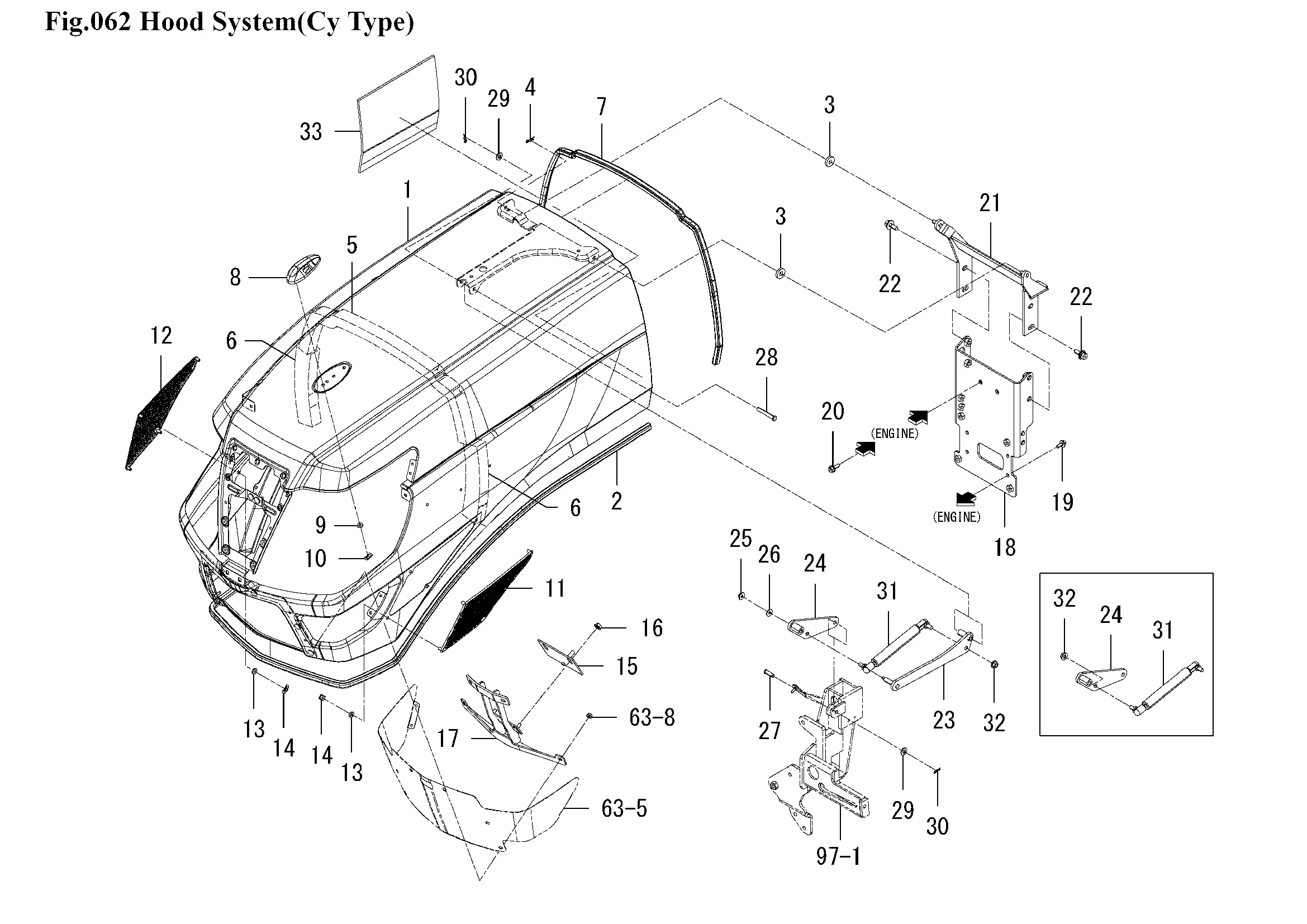

Motorhaube
Ersatzteile (33 Teile)
1
HOOD/SHORT COMP
2
INSULATOR/2510
3
CUSHION/RUBBER/10X25
4
PIN/SNAP
5
1801-601-001-10
6
INSULRATOR/30X45X260
7
INSULATOR/HOOD
8
ORNAMENT
9
WASHER/6X14X3
10
NUT,SPEED/M6
11
NET/LH
12
NET/RH
13
WASHER/6X14X3
14
NUT,SPEED/M6
15
1792-601-800-00
16
1746-816-001-00
17
1799-601-710-10
18
1848-601-230-10
19
FLANGEBOLT/M8X16
20
V231-360-802-00
21
1848-601-250-00
22
BOLT,SP/M10X25/7T
23
STAY/HOOD/UPPER COMP
24
1848-601-220-00
25
NUT,WASHER/M6
26
1146-601-002-00
27
PIN/08X25
28
1750-312-054-10
29
WASHER,PL/M8
30
PIN/SNAP
31
DAMPER/HOOD ASSY
32
Kombimutter-M8
33
INSULATOR/200X250
