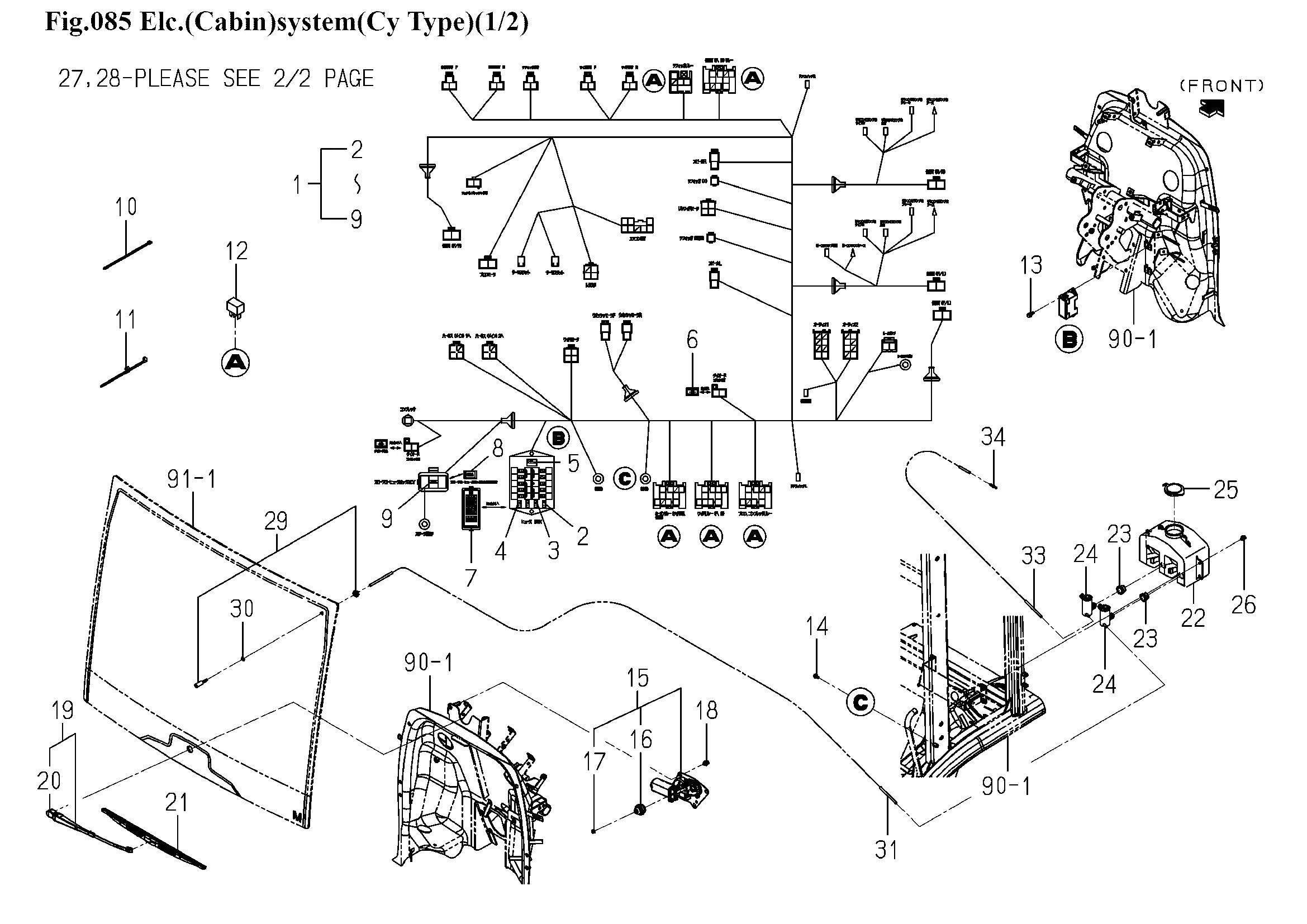

Elektrik, Kabine oben
Ersatzteile (69 Teile)
1
1848-658-200-10
2
FUSE/BLADE/32V7.5A
3
FUSE/BLADE/32V10A
4
FUSE/BLADE/32V15A
5
TOOL/FUSE
6
DIODE/3.0A
7
1848-658-202-00
8
1848-658-203-00
9
FUSE/SLOW BLOW/60A
10
BAND,WIRE/140
11
1560-666-004-00
12
RELAY/5P ASSY
13
V210-360-602-00
14
FLANGEBOLT/M6X12
15
MOTER/WIPER/115 ASSY
16
GROMMET
17
V301-260-006-00
18
BOLT/M6X16X16
19
ARM/WIPER/350 ASSY
20
1696-658-301-00
21
BLADE/WIPER/450 ASSY
22
TANK/WASHER/2M
23
GROMMET/W/T
24
PUMP/W/T
25
CAP/TANK/WASHER
26
BOLT/M6X16X16
27
Switch Wiper Assy
28
1746-658-002-00
29
Nozzle Washer Assy
30
1800-721-005-00
31
1719-658-002-00
32
CAP/22X38
33
1673-666-054-00
34
VALVE/CHECK
35
LAMP/WORKING/LE ASSY
36
1848-658-002-10
37
1848-658-003-00
38
V231-360-801-20
39
FLANGEBOLT/M8X16
40
FLANGEBOLT/M8X55
41
Kombimutter-M8
42
REAR DIFF SWITCH
43
DIFF LOSTING MARK
44
1711-666-052-10
45
1711-666-053-10
46
1848-658-006-00
47
FLANGEBOLT/M6X12
48
1742-658-001-10
49
1729-705-008-00
50
1742-658-220-10
51
1719-720-051-00
52
SPEAKER ASSY
53
COVER/SPEAKER
54
V111-174-001-60
55
V360-260-004-00
56
ANTENNA ASSY
57
BAND,WIRE/140
58
LAMP/ROOM ASSY
59
1792-658-301-00
60
1792-658-302-00
61
1792-658-310-20
62
SCREW,SP/M5X20
63
V210-360-601-20
64
SWITCH/DOOR ASSY
65
NUT/M10
66
REAR DIFF SWITCH
67
DIFF LOSTING MARK
68
1848-658-005-00
69
CAP/22X38
