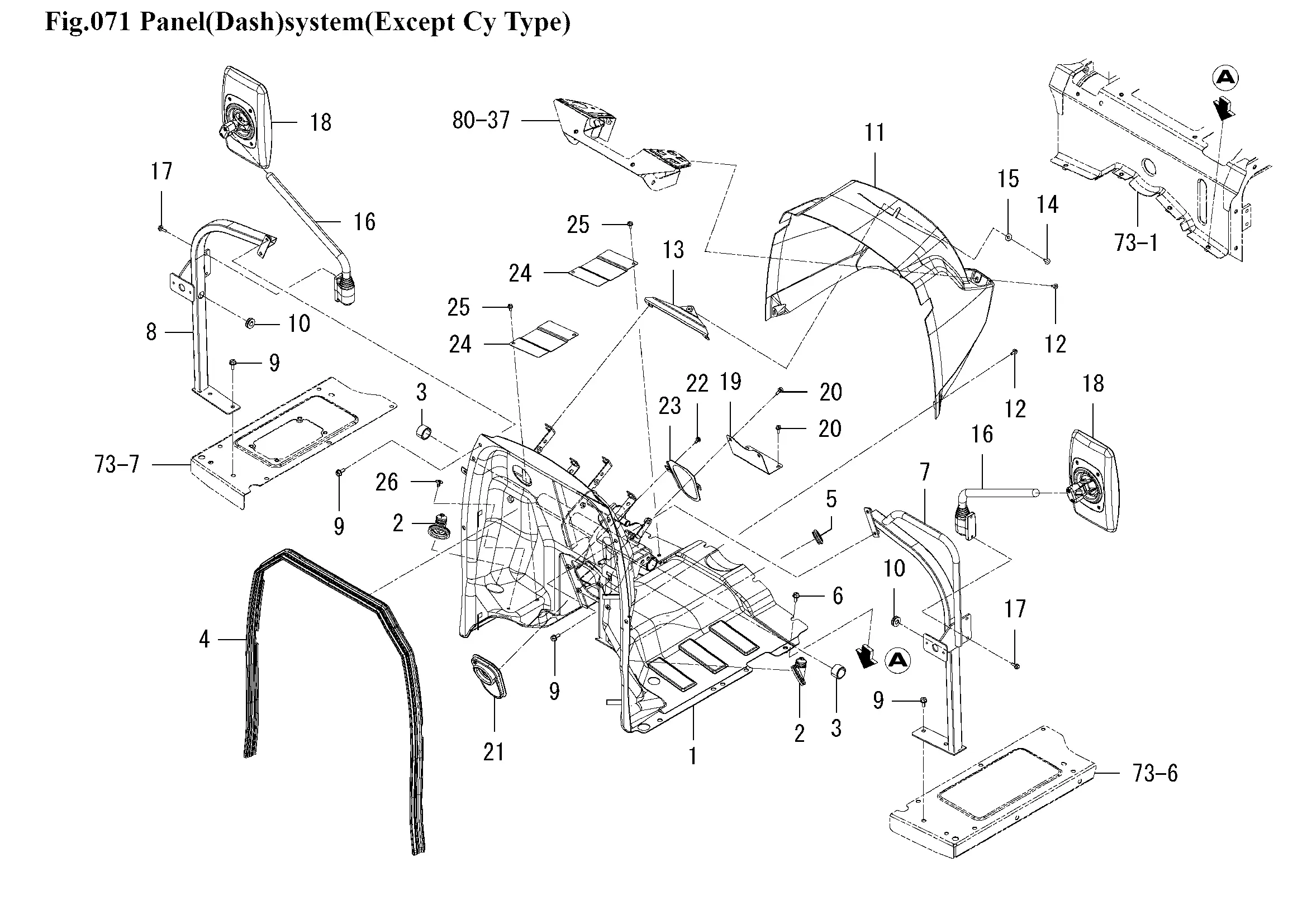

Spiegel, Anbauteile
Ersatzteile (26 Teile)
1
1848-630-200-20
2
BOOT
3
BEARING
4
1848-630-004-00
5
CAP/30
6
FLANGEBOLT/M8X16
7
1848-630-210-10
8
1848-630-220-10
9
FLANGEBOLT/M8X16
10
GROMMET/12X17X04
11
1792-630-001-20
12
SCREW,SP/M6X16
13
1800-630-230-00
14
SCREW/TRUSS/M06X16
15
3819-261-005-00
16
ARM/MIRROR ASSY
17
FLANGEBOLT/M6X16
18
MIRROR ASSY
19
1848-630-002-00
20
FLANGEBOLT/M6X16
21
BOOT
22
SCREW,SP/M6X12
23
1848-630-001-00
24
1848-630-003-00
25
FLANGEBOLT/M6X10
26
CLIP(B)
