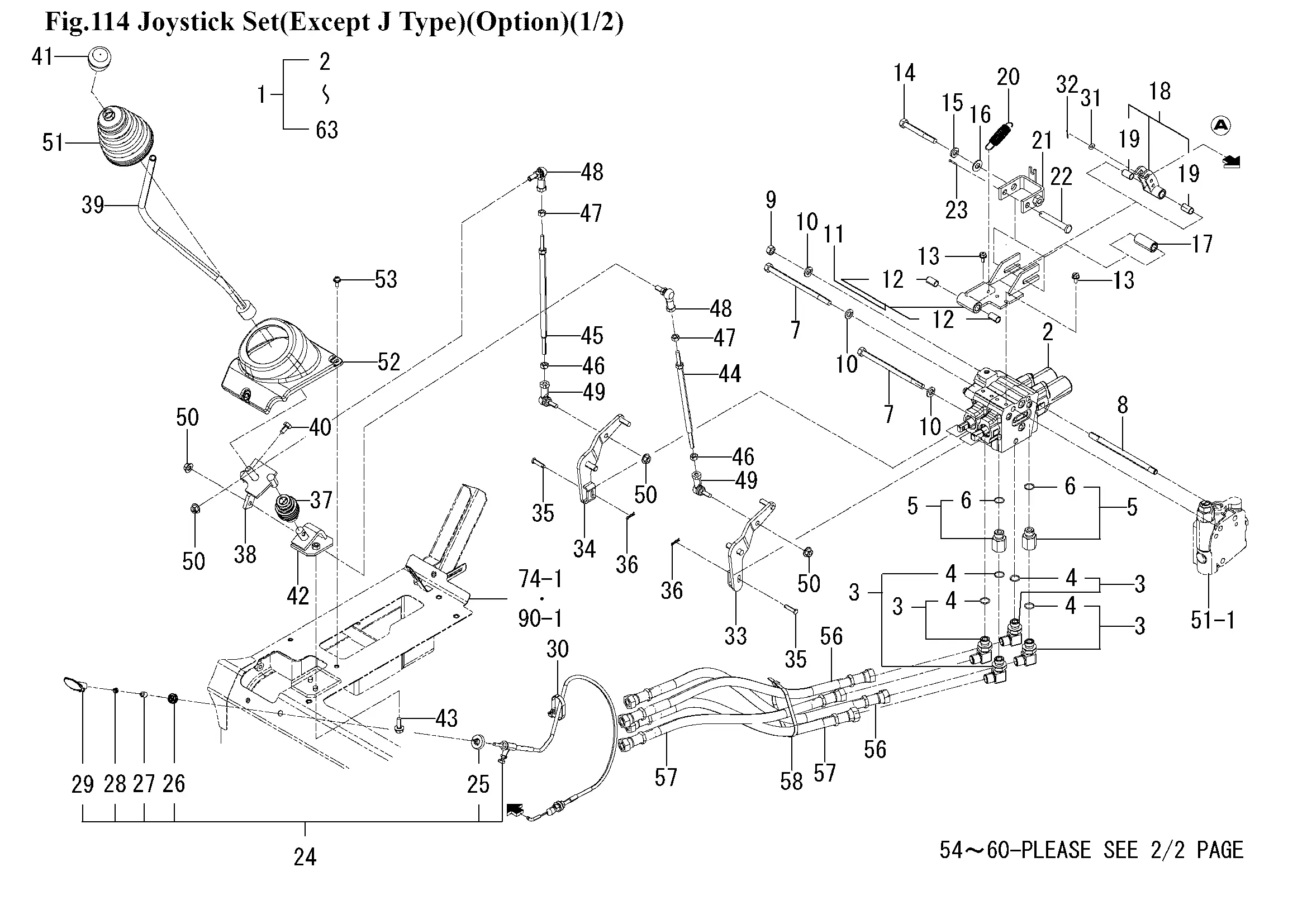

Joystick Set
Ersatzteile (63 Teile)
1
1848-511-200-20
2
VALVE/CONTROL/116
3
ADAPTER/L/G3/8 ASSY
4
O-RING/1B,P14
5
ADAPTER/G3/8 ASSY
6
O-RING/1B,P14
7
V201-261-015-00
8
1848-511-001-00
9
NUT/M10
10
WASHER,SP/M10
11
1742-511-710-00
12
BUSH/10X12X20
13
FLANGEBOLT/M6X12
14
BOLT/M10X75/7T
15
WASHER,SP/M10
16
V411-260-010-00
17
1742-511-071-00
18
1742-511-770-10
19
BUSH/10X12X20
20
SPRING/HE055
21
1742-511-760-10
22
PIN/10X070
23
PIN,SPLIT/2.5X20
24
1815-511-350-30
25
1742-511-791-00
26
1742-511-792-00
27
1742-511-793-00
28
1742-511-794-00
29
KNOB
30
BAND,WIRE/140
31
V411-260-005-00
32
PIN,SPLIT/1.6X15
33
ARM/BOOM COMP
34
ARM/BUCKET COMP
35
PIN/06X23
36
PIN/SNAP
37
JOINT ASSY
38
1848-511-300-00
39
1848-511-220-10
40
BOLT/M8X16
41
GRIP
42
1848-511-230-00
43
V231-360-802-00
44
1848-511-270-00
45
1848-511-280-10
46
NUT/LH/M08
47
NUT/M8
48
1560-695-021-00
49
1560-695-022-00
50
Kombimutter-M8
51
BOOT
52
COVER/JOY
53
SCREW,SP/M6X16
54
1848-511-210-00
55
V231-360-802-00
56
1848-511-250-00
57
1848-511-260-10
58
1342-402-006-00
59
ADAPTER/45/R3/8XG3/
60
PLUG/SCREW/SEAL
61
1817-512-002-10
62
LABEL/PORT/2ND/E4/+
63
1848-511-002-10
