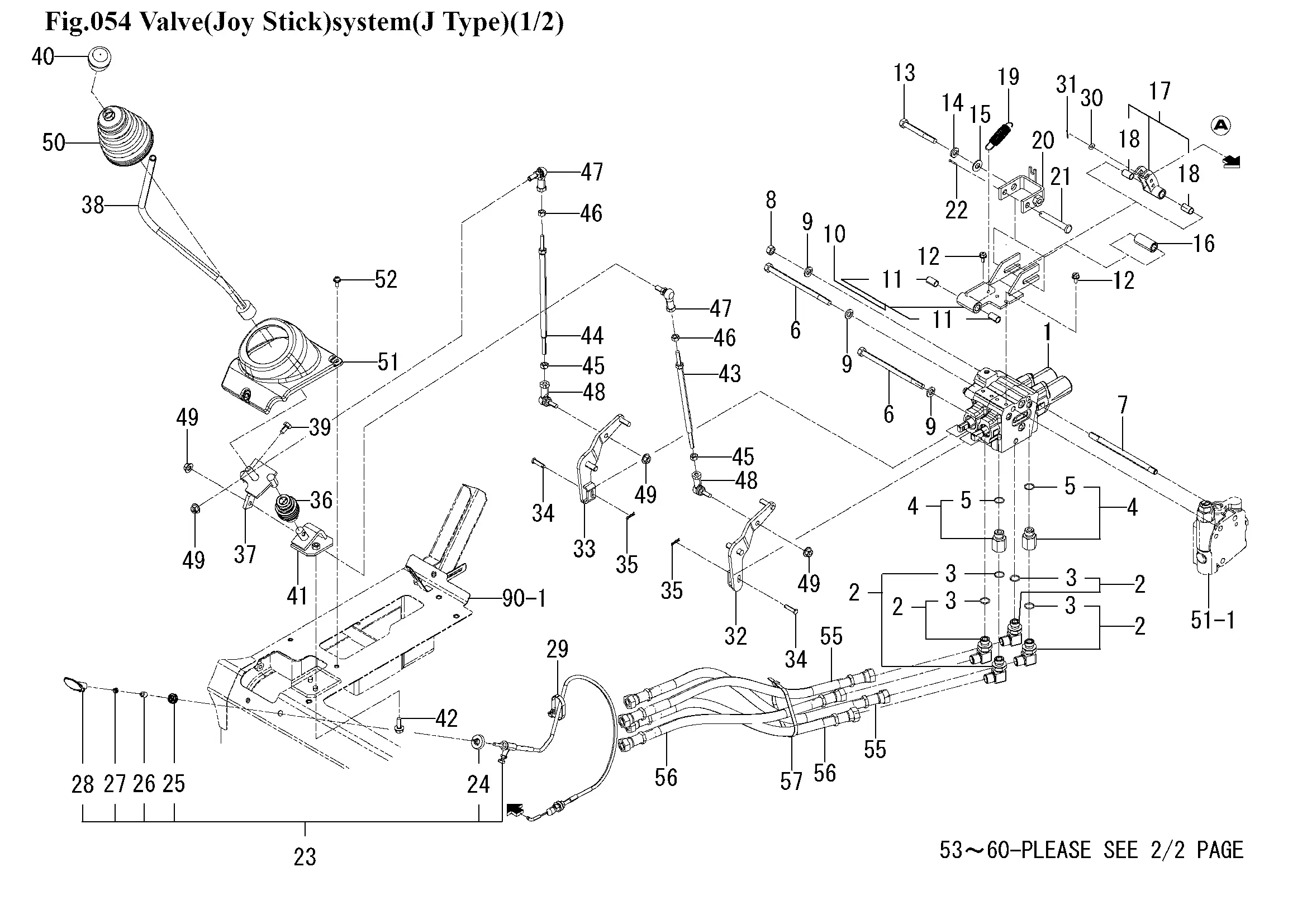

Kreutzhebel, Joy Stick
Ersatzteile (62 Teile)
1
VALVE/CONTROL/116
2
ADAPTER/L/G3/8 ASSY
3
O-RING/1B,P14
4
ADAPTER/G3/8 ASSY
5
O-RING/1B,P14
6
V201-261-015-00
7
1848-511-001-00
8
NUT/M10
9
WASHER,SP/M10
10
1742-511-710-00
11
BUSH/10X12X20
12
FLANGEBOLT/M6X12
13
BOLT/M10X75/7T
14
WASHER,SP/M10
15
V411-260-010-00
16
1742-511-071-00
17
1742-511-770-10
18
BUSH/10X12X20
19
SPRING/HE055
20
1742-511-760-10
21
PIN/10X070
22
PIN,SPLIT/2.5X20
23
1815-511-350-30
24
1742-511-791-00
25
1742-511-792-00
26
1742-511-793-00
27
1742-511-794-00
28
KNOB
29
BAND,WIRE/140
30
V411-260-005-00
31
PIN,SPLIT/1.6X15
32
ARM/BOOM COMP
33
ARM/BUCKET COMP
34
PIN/06X23
35
PIN/SNAP
36
JOINT ASSY
37
1848-511-300-00
38
1848-511-220-10
39
BOLT/M8X16
40
GRIP
41
1848-511-230-00
42
V231-360-802-00
43
1848-511-270-00
44
1848-511-280-10
45
NUT/LH/M08
46
NUT/M8
47
1560-695-021-00
48
1560-695-022-00
49
Kombimutter-M8
50
BOOT
51
COVER/JOY
52
SCREW,SP/M6X16
53
1848-511-210-00
54
V231-360-802-00
55
1848-511-250-00
56
1848-511-260-10
57
1342-402-006-00
58
ADAPTER/45/R3/8XG3/
59
PLUG/SCREW/SEAL
60
1817-512-002-10
61
LABEL/PORT/2ND/E4/+
62
1848-511-002-10
