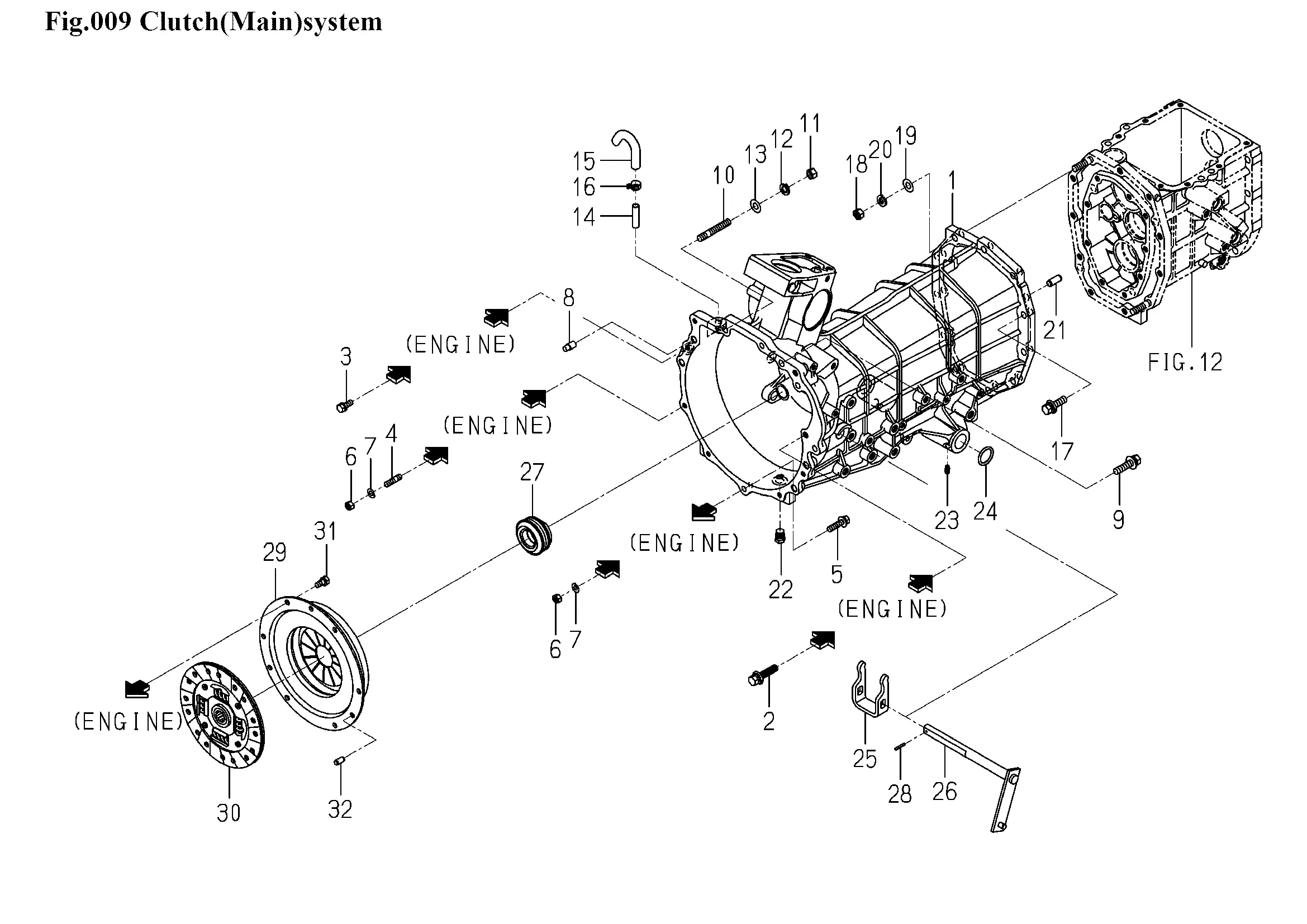

Kupplung
Ersatzteile (32 Teile)
1
1776-120-072-00
2
V211-661-004-50
3
BOLT,SP/M8X25/7T
4
STUD/M8X20/7T
5
BOLT,SP/M8X40/7T
6
NUT/M8/7T
7
WASHER,SP/M8
8
PIN,KNOCK
9
BOLT,SP/M10X40/7T
10
STUD/M10X50/7T
11
V304-460-010-00
12
WASHER,SP/M10
13
V411-260-010-00
14
PIPE,BREATHER
15
1716-501-006-10
16
J062-138-148-00
17
BOLT,SP/M10X35/7T
18
V304-460-010-00
19
V411-260-010-00
20
WASHER,SP/M10
21
PIN,ST,B/10X24
22
PLUG/SCREW/SEAL
23
NIPPLE,GREASE
24
O-RING/1A,P25
25
FORK
26
1776-120-240-10
27
RBB/CLUTCH/RELEASE
28
PIN,SPRING/3X20 W
29
COVER/CLUTCH/18 COMP
30
DISC/CLUTCH/180 COMP
31
V211-260-801-60
32
1776-120-099-00
