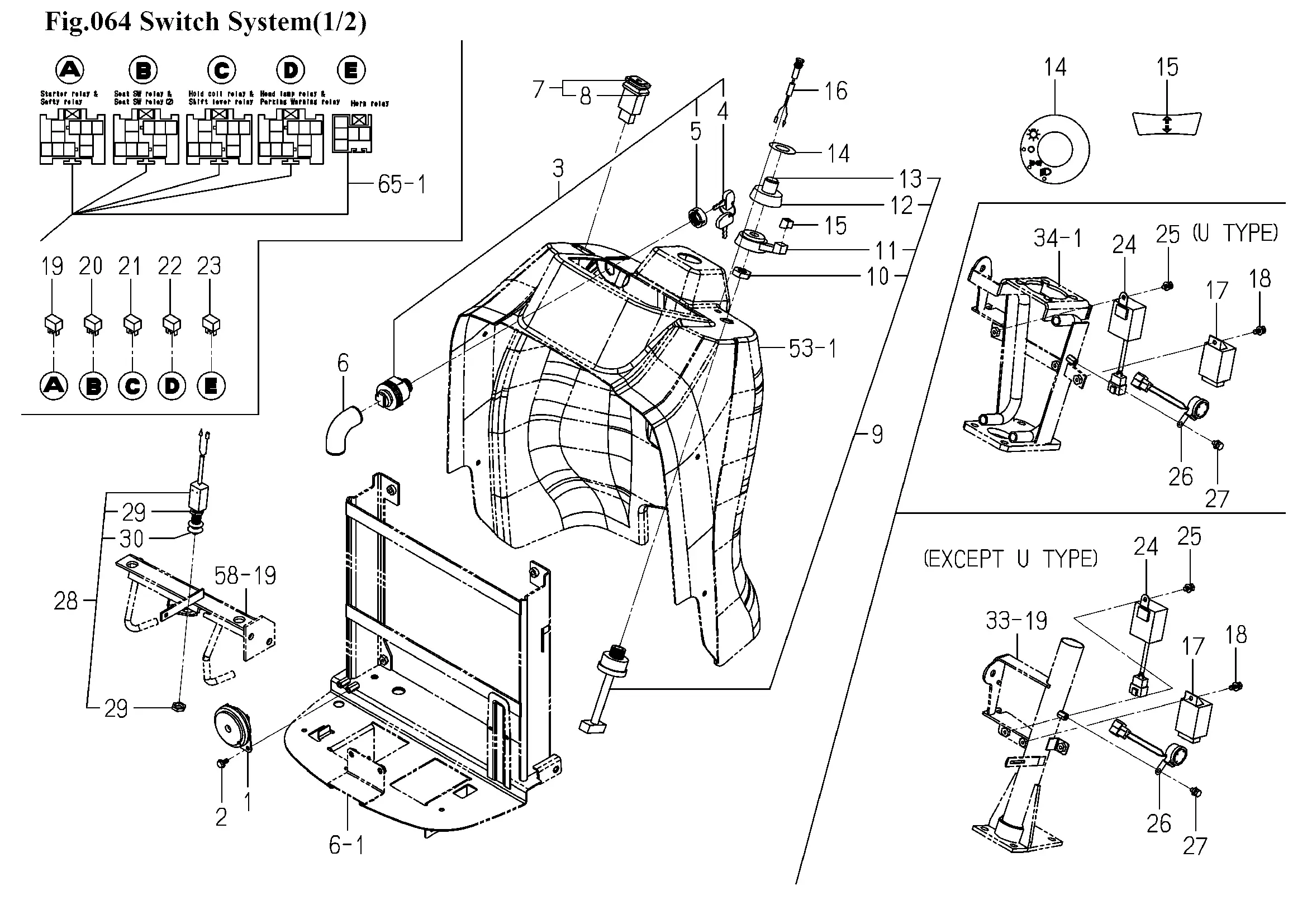

Schalter, Elektrik
Ersatzteile (46 Teile)
1
1740-680-530-20
2
FLANGEBOLT/M6X12
3
1716-680-200-20
4
KEY
5
NUT/RING
6
COVER/SWITCH
7
SWITCH/HAZARD ASSY
8
BULB/LAMP/14V60MA
9
Kombischalter, Blink,Licht,Hupe
10
1544-623-232-00
11
LEVER
12
KNOB
13
BOOT/HORN
14
1776-680-001-00
15
1776-680-002-00
16
LAMP/LED ASSY
17
1739-681-220-20
18
BOLT,SP/M6X16
19
RELAY/5P ASSY
20
RELAY/5P ASSY
21
RELAY/5P ASSY
22
RELAY/5P ASSY
23
RELAY/5P ASSY
24
UNIT/TIMER ASSY
25
V210-360-601-20
26
BUZZER
27
V210-360-601-20
28
1772-654-280-10
29
1772-654-281-00
30
BOOT
31
SWITCH/PUSH ASSY
32
1716-680-330-10
33
ARM
34
1776-312-530-00
35
BOLT,SP/M6X16
36
BOLT,SP/M8X20
37
SWITCH/PUSH ASSY
38
BALL,STEEL
39
SWITCH/PUSH ASSY
40
BALL,STEEL
41
SWITCH/PUSH ASSY
42
BALL,STEEL
43
1776-680-410-00
44
BOLT,SP/M6X16
45
1776-680-420-00
46
BOLT,SP/M6X16
