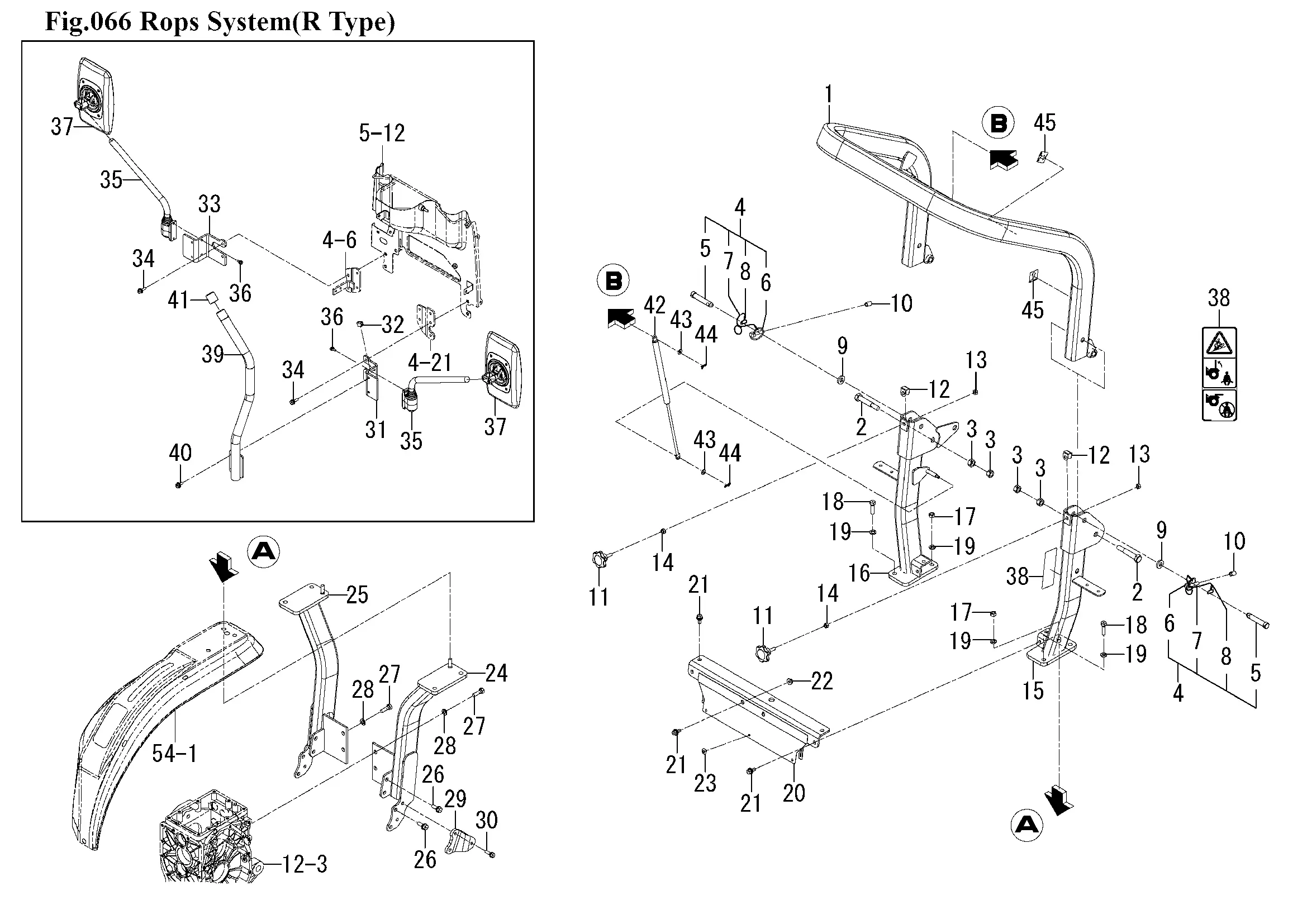

Überrollbügel, Heck
Ersatzteile (45 Teile)
1
FRAME/UPPER COMP
2
1757-625-005-00
3
1773-702-001-10
4
PIN ASSY
5
PIN/19X94
6
LINKPIN
7
1776-702-371-00
8
RING
9
INSULATOR
10
TUBE/020
11
NOB/LOCK
12
PLATE
13
U-NUT/M10X1.5
14
NUT/M10
15
FRAME/REAR/LH COMP
16
FRAME/REAR/RH COMP
17
V304-460-012-00
18
BOLT/M12X40/7T
19
WASHER,SP/M12
20
1776-702-260-10
21
BOLT,SP/M10X25/7T
22
NUT/WASHER/M10
23
RIVET
24
FRAME/REAR/LH COMP
25
FRAME/REAR/RH COMP
26
BOLT/S
27
V201-361-203-50
28
WASHER,SP/M12
29
PLATE
30
V211-561-003-00
31
1776-702-081-00
32
TRIM/020
33
BRACKET/MIRROR/RH
34
BOLT,SP/M8X25/7T
35
ARM/MIRROR ASSY
36
BOLT,SP/M6X16
37
MIRROR ASSY
38
1674-904-005-20
39
TUBE COMP
40
V211-660-802-00
41
CAP/28
42
GASSPRING/630N COMP
43
WASHER,PL/M8
44
PIN/SNAP/B
45
1774-902-085-00
