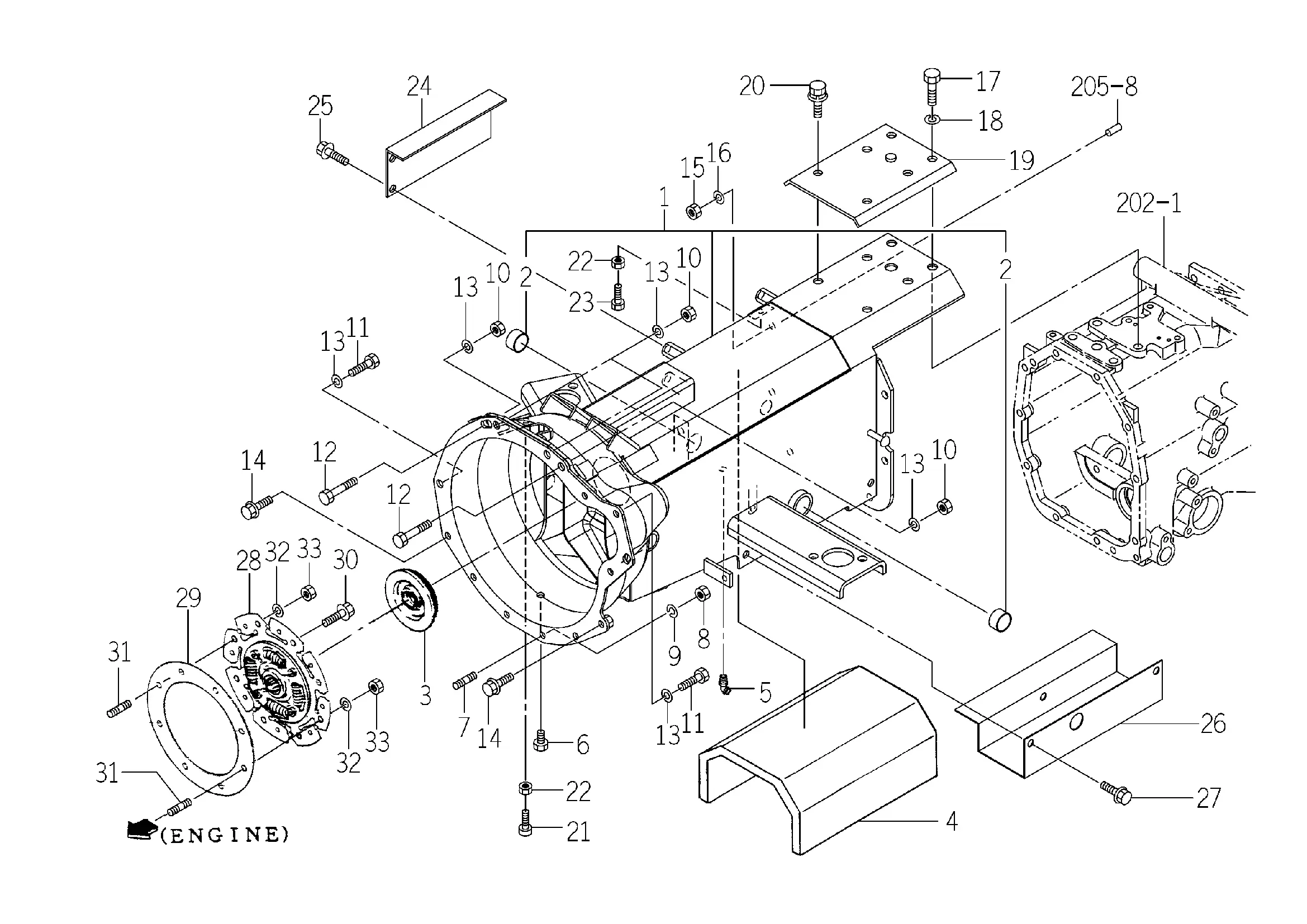

Kupplung, Gehäuse
Ersatzteile (33 Teile)
1
Gehäuse, Kupplung
2
BUSH/25X28X25
3
GROMMET/25X70X03
4
INSULATOR
5
NIPPLE,GREASE/PT1/8
6
PLUG/SCREW/SEAL
7
STUD/M8X25/7T
8
NUT/M8/7T
9
WASHER,SP/M8
10
Mutter M10x1,25 SW14
11
V203-361-002-00
12
BOLT/M10X30/7T,P1.25
13
WASHER,SP/M10
14
FLANGEBOLT/M12X25
15
V304-460-010-00
16
WASHER,SP/M10
17
BOLT/M12X25/7T
18
WASHER,SP/M12
19
PLATE COMP
20
BOLT,SP/M10X25/7T
21
1421-602-005-10
22
NUT/M8
23
BOLT/TRIMED
24
1774-120-002-00
25
V231-361-001-60
26
COVER/SHAFT/4WD
27
FLANGEBOLT/M8X16
28
Kupplungsscheibe
29
Platte
30
V231-360-802-00
31
STUD/M8X25/7T
32
WASHER,SP/M8
33
NUT/M8/7T
