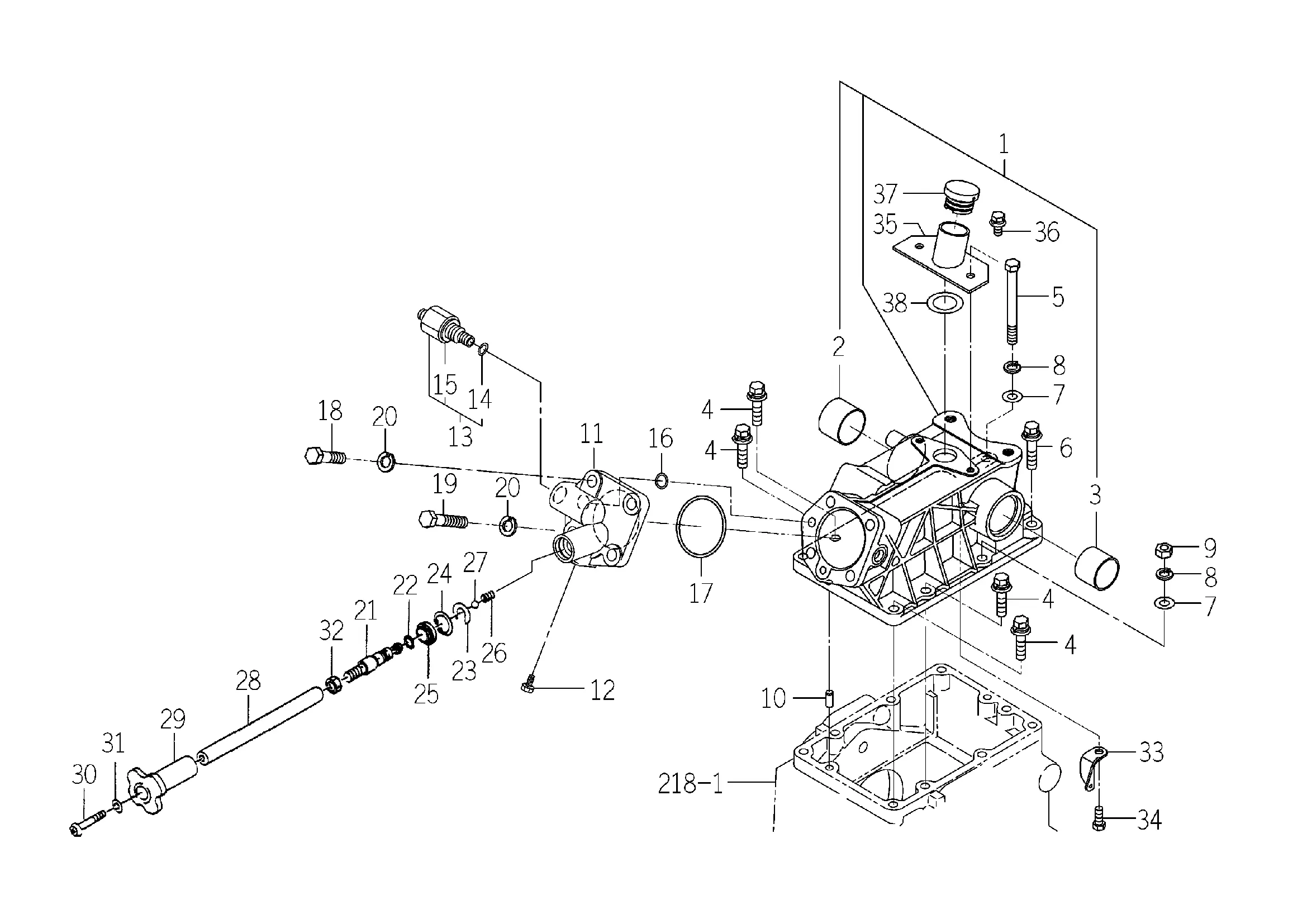

Gehäuse, Heckhydraulik
Ersatzteile (38 Teile)
1
CASE/CYLINDERASSY
2
BUSH/40X43X30
3
BUSH/35X39X30
4
BOLT,SP/M10X40/7T
5
V201-361-010-00
6
V211-661-004-50
7
V411-260-010-00
8
WASHER,SP/M10
9
V304-460-010-00
10
PIN,ST,A/8X18
11
HEAD/CYLINDER
12
PLUG/SCREW/SEAL
13
K250-001-000-00
14
O-RING/1B,P12
15
K250-001-009-00
16
O-RING/1B,P12
17
O-RING/1B,G60
18
BOLT/M12X40/7T
19
V201-361-206-00
20
WASHER,SP/M12
21
SHAFT/SLOWRETURN
22
O-RING/1B,P10
23
PLATE/STOPPER
24
RING,SNAP/25 C
25
SEAL/DUST
26
SPRING/HC015
27
TEELBALL
28
1568-507-001-10
29
KNOB
30
SCREW/M6X40
31
V401-160-006-00
32
NUT/M10
33
HOOK,SPRING
34
BOLT/M8X16
35
PIPE/OIL COMP
36
BOLT,SP/M8X20
37
CAP/OIL/30
38
PACKING/RUBBER
