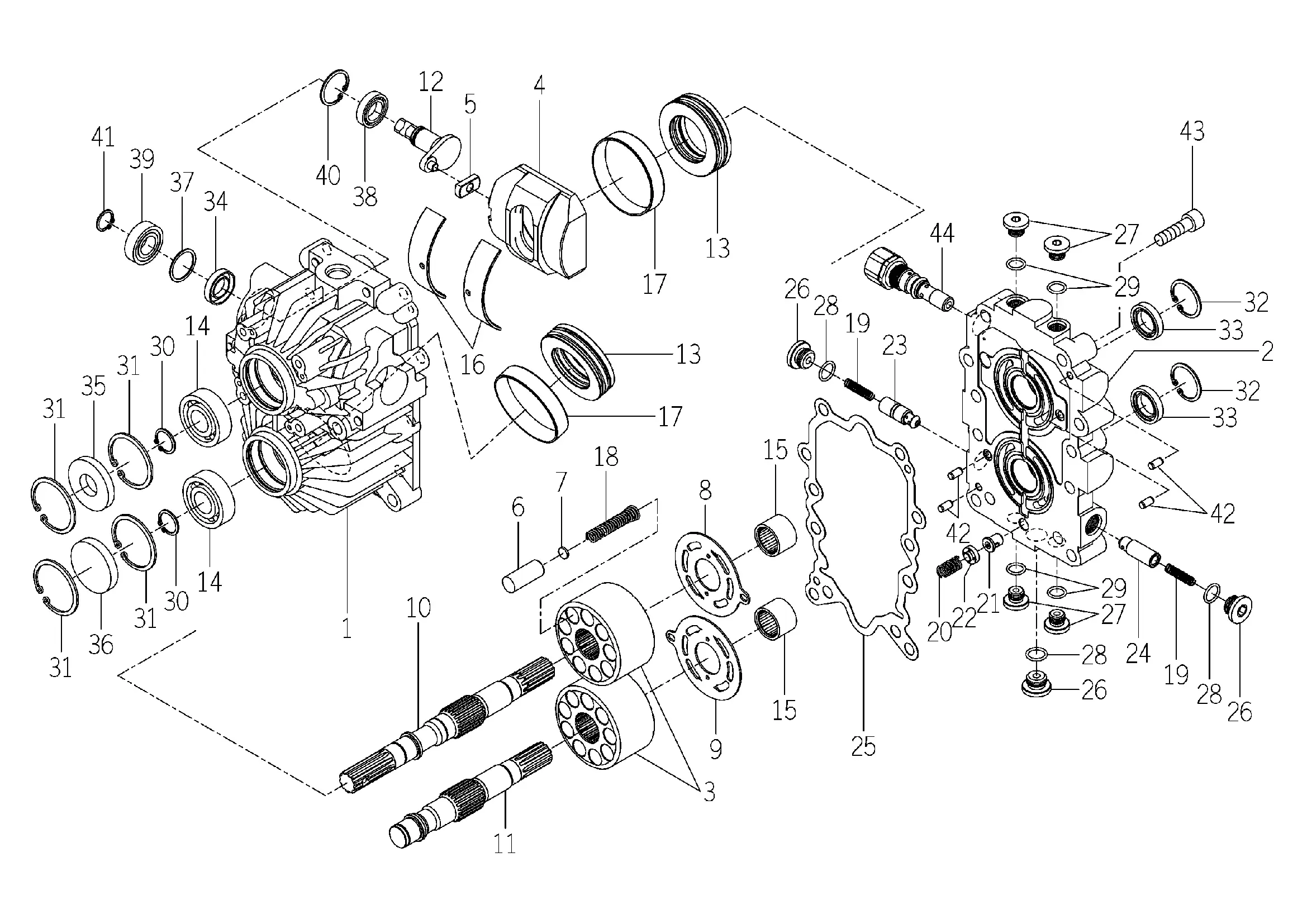

Einzelteile Hydrostat K510-014-000-00
Ersatzteile (44 Teile)
1
Gehäuse, Hydrostat
2
K510-014-004-00
3
K510-010-005-00
4
K510-010-006-10
5
K510-001-007-00
6
K510-006-008-00
7
SHIM/1.8
8
PLATE/VALVE/PUMP
9
PLATE/VALVE/MOTOR
10
Welle, Hydrostat
11
SHAFT/MOTOR
12
K510-002-014-00
13
BEARING/THRUST
14
V600-110-620-40
15
NEEDLE
16
BUSH/95X100X22
17
BUSH/68X71X14
18
SPRING/HC053
19
SPRING/HC030
20
SPRING/HC021
21
K510-003-022-00
22
K510-003-037-00
23
POPPET/CHECK/1.3
24
K510-006-023-00
25
GASKET
26
PLUG(G3/8)
27
PLUG(PF1/4)
28
O-RING/1B,P14
29
O-RING/1B,P11
30
RING,SNAP/20 C
31
RING,SNAP/47 C
32
RING,SNAP/32 C
33
OIL SEAL
34
SEAL/OIL
35
SEAL,OIL/TC20477
36
SEAL/47
37
WASHER/25X30X1
38
Lager
39
Kugellager 6003 2 RS
40
RING,SNAP/30 C
41
RING,SNAP/17 C
42
K510-001-036-00
43
V220-541-003-50
44
VALVE/RELIEF SET
