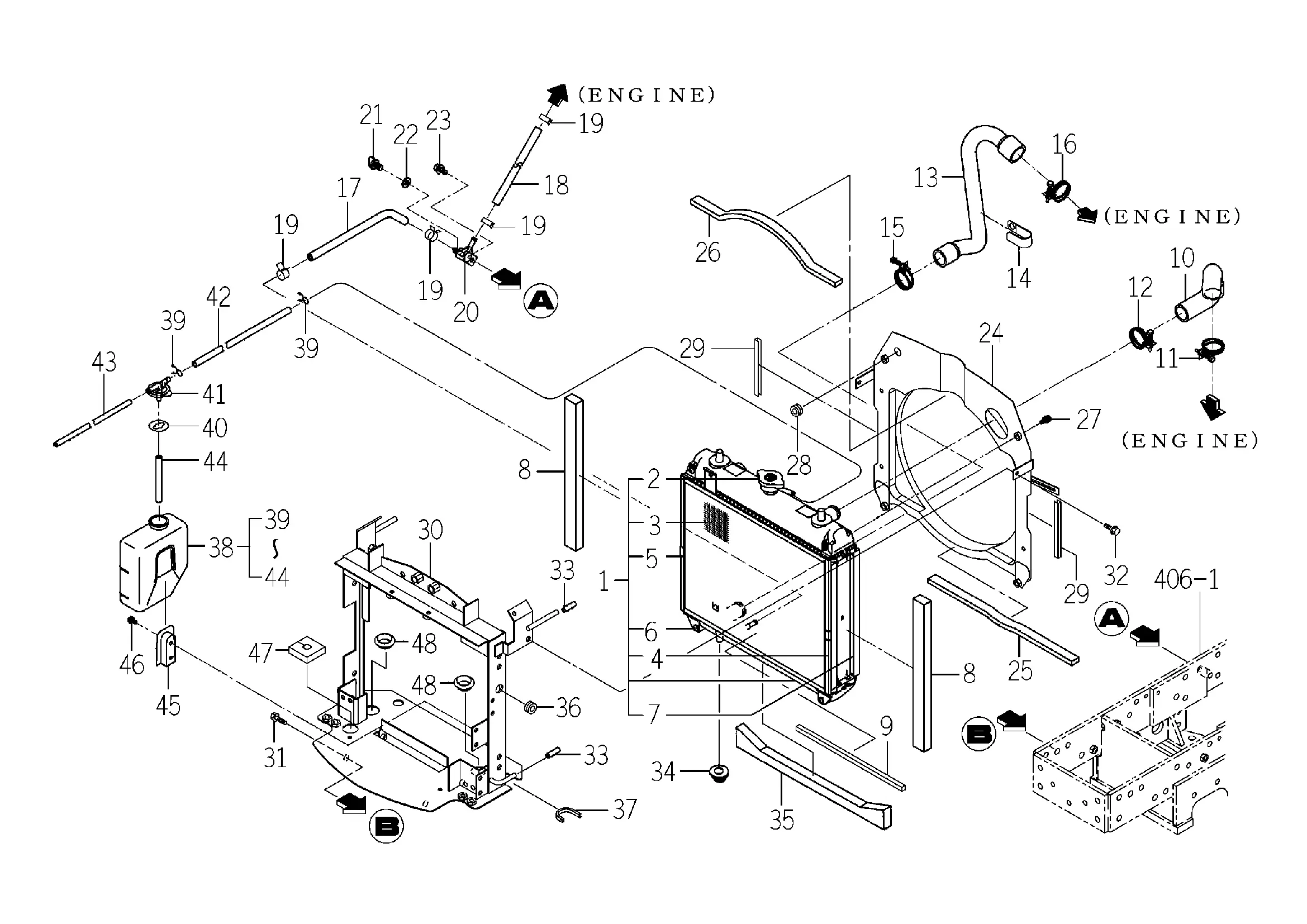

Kühler
Ersatzteile (48 Teile)
1
RADIATOR ASSY
2
CAP
3
PROTECTOR
4
GUIDE
5
GUIDE
6
SCREW/P
7
PACKING
8
INSULATOR/20X350
9
INSULATOR/10X10X290
10
HOSE/RADIATOR/INLET
11
CLAMP/WIRE/36-44
12
J061-230-038-00
13
1738-102-001-10
14
HOLDER/JE/9-9
15
J061-230-038-00
16
CLAMP/WIRE/36-44
17
HOSE/205
18
HOSE/230
19
CLIP/HOSE/14.7-15.9
20
CONNECTOR
21
1424-101-203-00
22
PACKING
23
BOLT,SP/M8X20
24
SHROUD COMP
25
INSULATOR
26
INSULATOR
27
FLANGEBOLT/M6X20
28
Gummimuffe
29
TRIM/130
30
Konsole, Kühler
31
FLANGEBOLT/M12X16
32
V231-360-801-20
33
TUBE/07X09X30
34
INSULATOR
35
INSULATOR
36
GROMMET
37
1724-604-222-00
38
RESERVETANK ASSY
39
CLAMP
40
PACKING
41
CAP
42
1716-102-281-00
43
HOSE/RUBBER
44
6221-408-011-00
45
Halter
46
FLANGEBOLT/M6X12
47
INSULATOR/50X50X15
48
CAP/30
