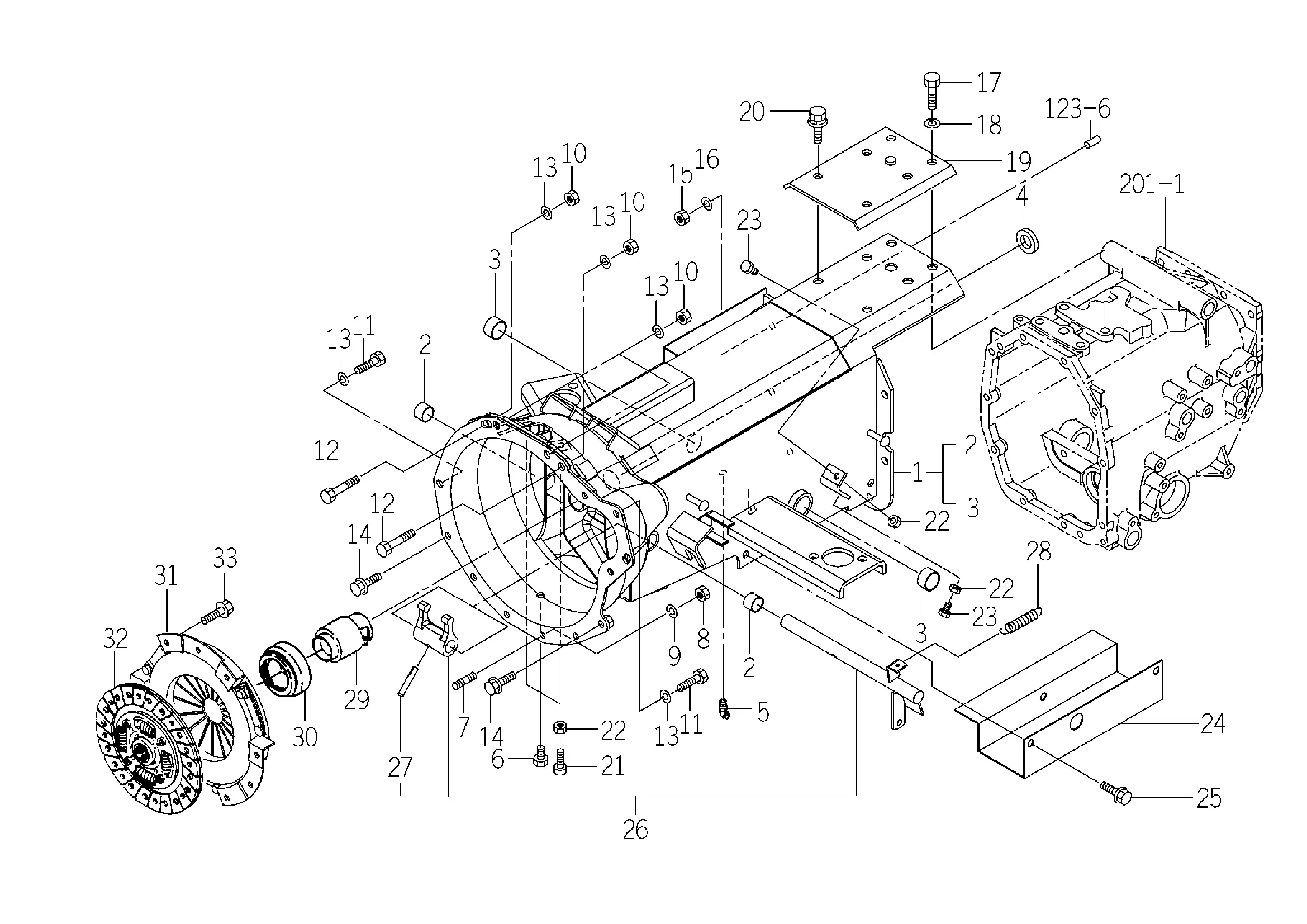

Kupplung, Gehäuse
Ersatzteile (33 Teile)
1
Gehäuse, Kupplung
2
Buchse 19x22x15
3
BUSH/25X28X25
4
V744-120-350-70
5
NIPPLE,GREASE/PT1/8
6
PLUG/SCREW/SEAL
7
STUD/M8X25/7T
8
NUT/M8/7T
9
WASHER,SP/M8
10
Mutter M10x1,25 SW14
11
V203-361-002-00
12
BOLT/M10X30/7T,P1.25
13
WASHER,SP/M10
14
FLANGEBOLT/M12X25
15
V304-460-010-00
16
WASHER,SP/M10
17
BOLT/M12X25/7T
18
WASHER,SP/M12
19
PLATE COMP
20
BOLT,SP/M10X25/7T
21
1421-602-005-10
22
NUT/M8
23
BOLT/TRIMED
24
COVER/SHAFT/4WD
25
FLANGEBOLT/M8X16
26
ARM/CLUTCH SET
27
PIN
28
SPRING,TENSION/53
29
SLEEVE
30
BEARING,CLUTCH RS
31
COVER/CLUTCH ASSY
32
DISK/CLUTCH/200 COMP
33
V231-360-802-00
