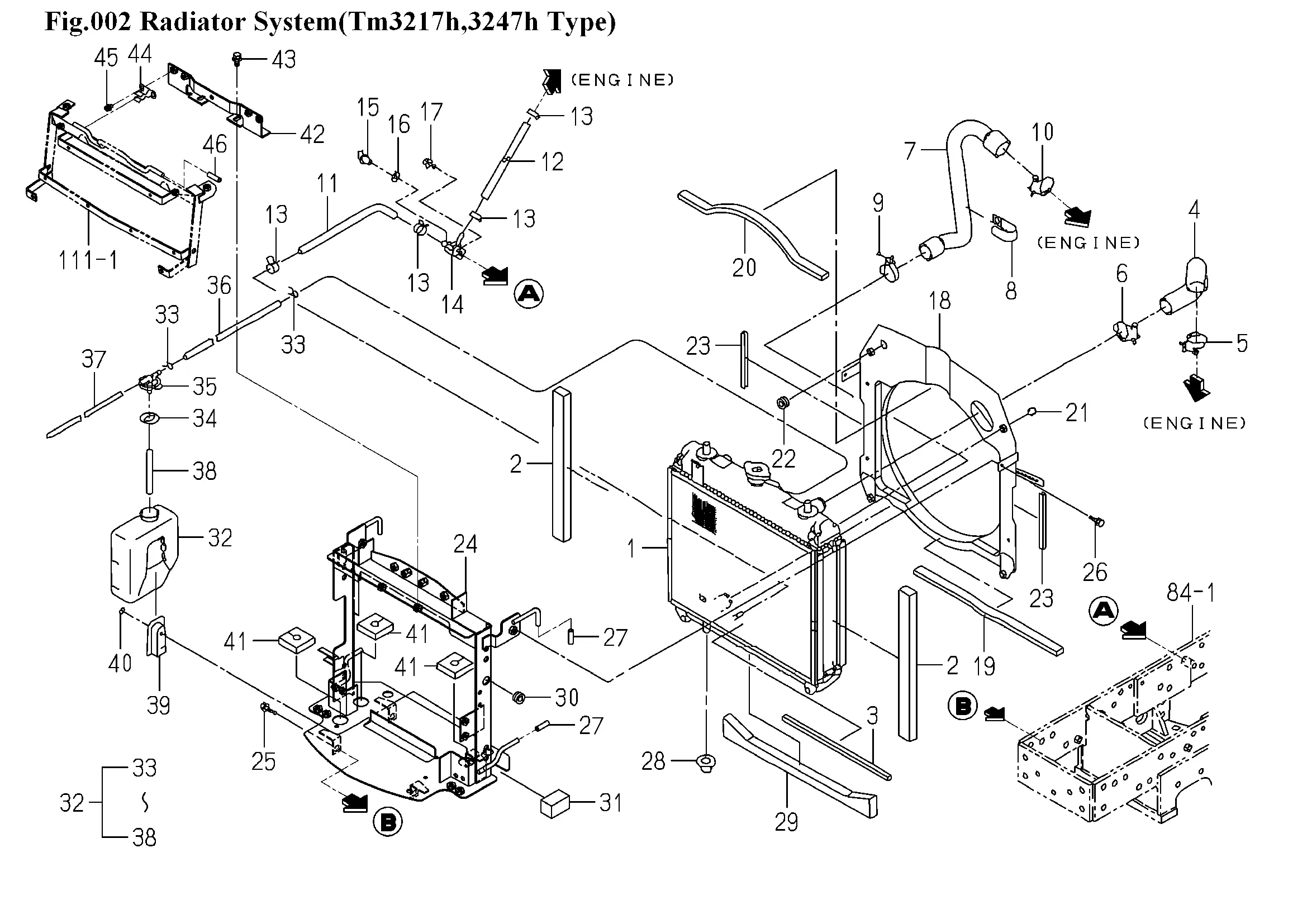

Kühler
Ersatzteile (48 Teile)
1
RADIATOR/390X30 ASSY
2
INSULATOR/20X350
3
INSULATOR/10X10X290
4
HOSE/RADIATOR/INLET
5
CLAMP/WIRE/36-44
6
J061-230-038-00
7
1738-102-001-10
8
HOLDER/JE/9-9
9
J061-230-038-00
10
CLAMP/WIRE/36-44
11
HOSE/205
12
HOSE/230
13
CLIP/HOSE/14.7-15.9
14
CONNECTOR
15
1424-101-203-00
16
PACKING
17
BOLT,SP/M8X20
18
SHROUD COMP
19
INSULATOR
20
INSULATOR
21
FLANGEBOLT/M6X20
22
Gummimuffe
23
TRIM/130
24
BRACKET/RADIATO COMP
25
FLANGEBOLT/M12X16
26
V231-360-801-20
27
TUBE/07X09X30
28
INSULATOR
29
INSULATOR
30
GROMMET
31
Dichtung
32
RESERVETANK ASSY
33
CLAMP
34
PACKING
35
CAP
36
1716-102-281-00
37
HOSE/RUBBER
38
6221-408-011-00
39
Halter
40
FLANGEBOLT/M6X12
41
INSULATOR/50X50X15
42
BRACKET COMP
43
BOLT,SP/M8X16
44
SPRING
45
SCREW,SP/M6X12
46
TUBE/07X09X30
ob
PROTECTOR
ob
CAP
