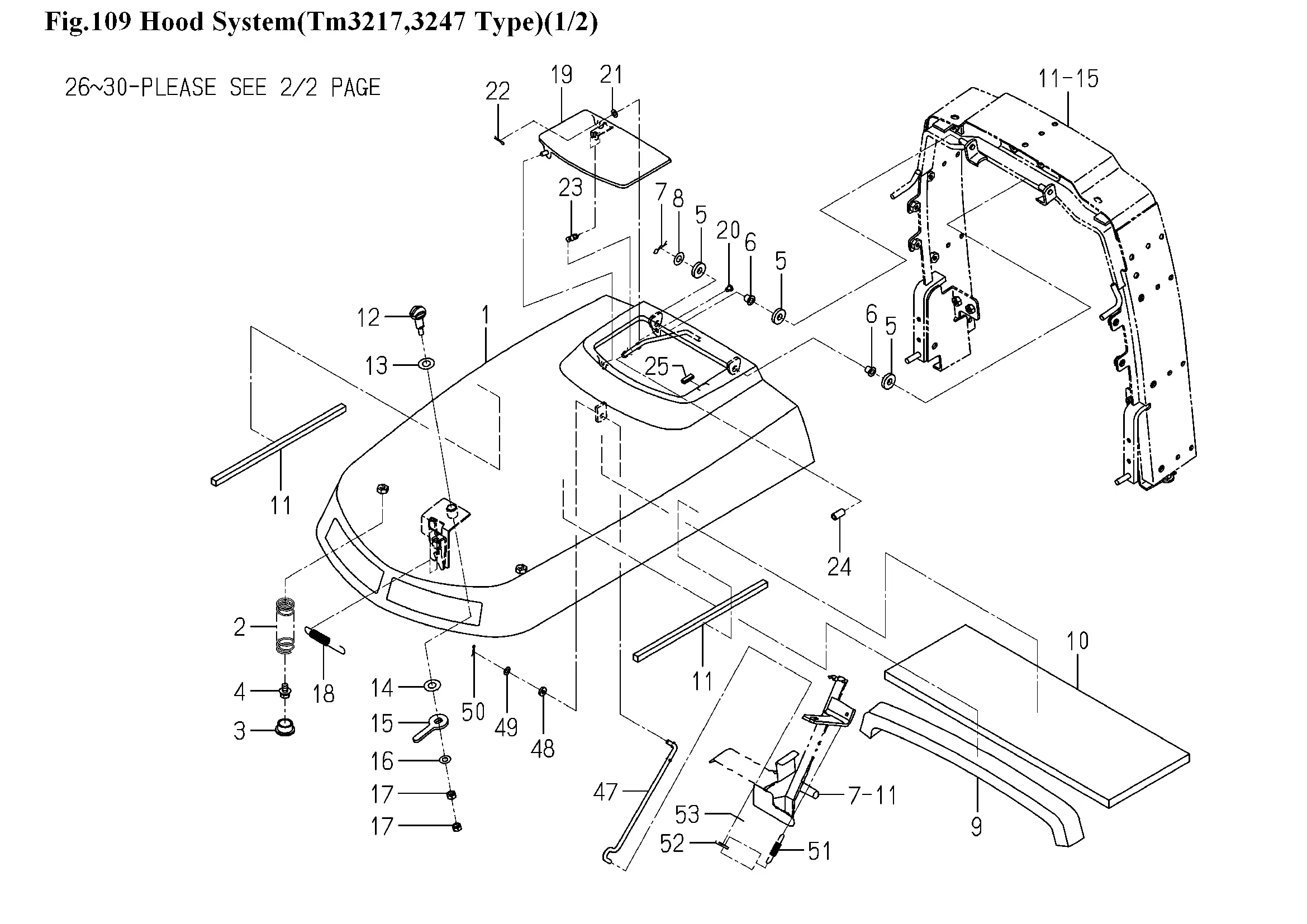

Motorhaube
Ersatzteile (54 Teile)
1
HOOD COMP
2
SPRING/HC090
3
BUSH/19X30X14
4
BOLT,SP/M8X16
5
CUSHION/RUBBER/10X25
6
BUSH/08X15X11
7
PIN/SNAP
8
V411-260-010-00
9
INSULATOR
10
INSULATOR/SIDE
11
INSULATOR/10X10X290
12
PIN/HOOD
13
WASHER/12X25X02
14
3610-440-018-00
15
ARM/PLATE
16
WASHER,PL/M8
17
NUT/M8
18
SPRING/HE089
19
COVER COMP
20
PIN/06X07
21
V411-260-006-00
22
PIN/SNAP
23
SPRING/HE036
24
TUBE/06X10X20
25
TRIM/20
26
PLATE/LOCK COMP
27
BOLT,SP/M8X20
28
COVER/SIDE/S/LH COMP
29
INSULATOR
30
SPRING
31
SCREW,SP/M6X12
32
NET/SIDE/LH
33
RIVET,BLIND/4X7
34
INSULATOR
35
GROMMET/9
36
GROMMET
37
TRIM/140
38
COVER/SIDE/S/RH COMP
39
INSULATOR
40
SPRING
41
SCREW,SP/M6X12
42
NET/SIDE/RH
43
RIVET,BLIND/4X7
44
GROMMET/9
45
INSULATOR
46
GROMMET
47
ROD/HOOD
48
WASHER/6X14X3
49
V411-260-006-00
50
PIN/SNAP
51
SPRING,TENSION/53
52
WASHER/08X22X03
53
WASHER/6X24X2
ob
Werkzeug, öffnen Motorhaube
