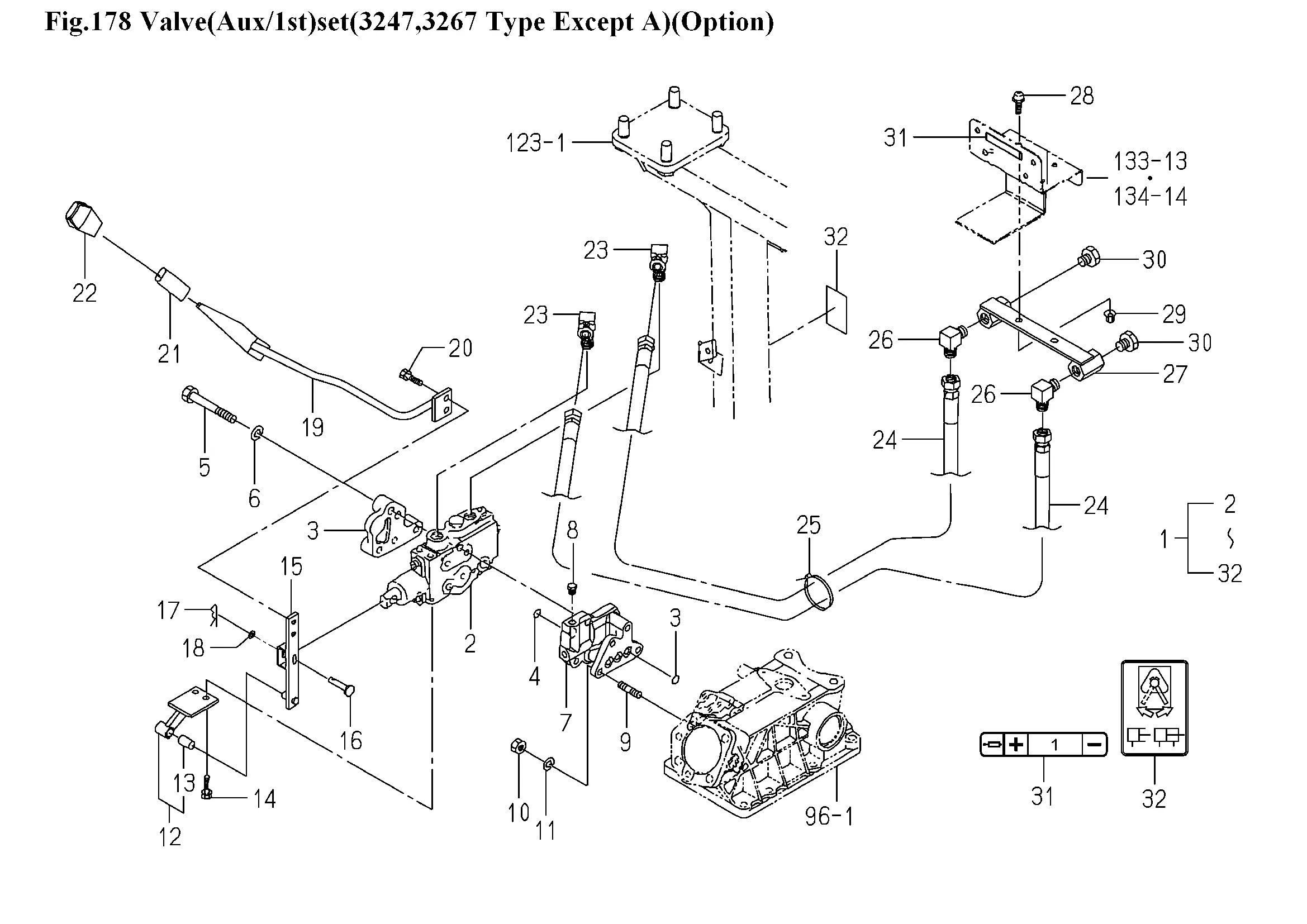

Hydrauliksteuerventil, einfach (Kabine)
Ersatzteile (32 Teile)
1
1774-507-930-00
2
VALVE/CONTROL ASSY
3
COVER
4
O-RING/1B,P12
5
V201-261-008-00
6
WASHER,SP/M10
7
METAL/AUX/VALVE
8
PLUG/SCREW/SEAL
9
STUD/M8X20,SEAL
10
NUT/M8/7T
11
WASHER,SP/M8
12
HOLDER/1ST ASSY
13
BUSH/10X12X20
14
BOLT,S/M8X20
15
ARM/1ST COMP
16
PIN/06X31
17
PIN/SNAP
18
V411-260-006-00
19
LEVER/1ST COMP
20
V211-260-801-60
21
INSULATOR/LEVER/SUB
22
GRIP/03X17X74
23
CONNECTOR
24
1640-530-270-20
25
1342-402-006-00
26
ADAPTER/90
27
ADAPTER/1ST COMP
28
V111-168-002-00
29
Kombimutter-M8
30
PLUG/SCREW/SEAL
31
1774-902-078-10
32
LABEL/SUBCON
