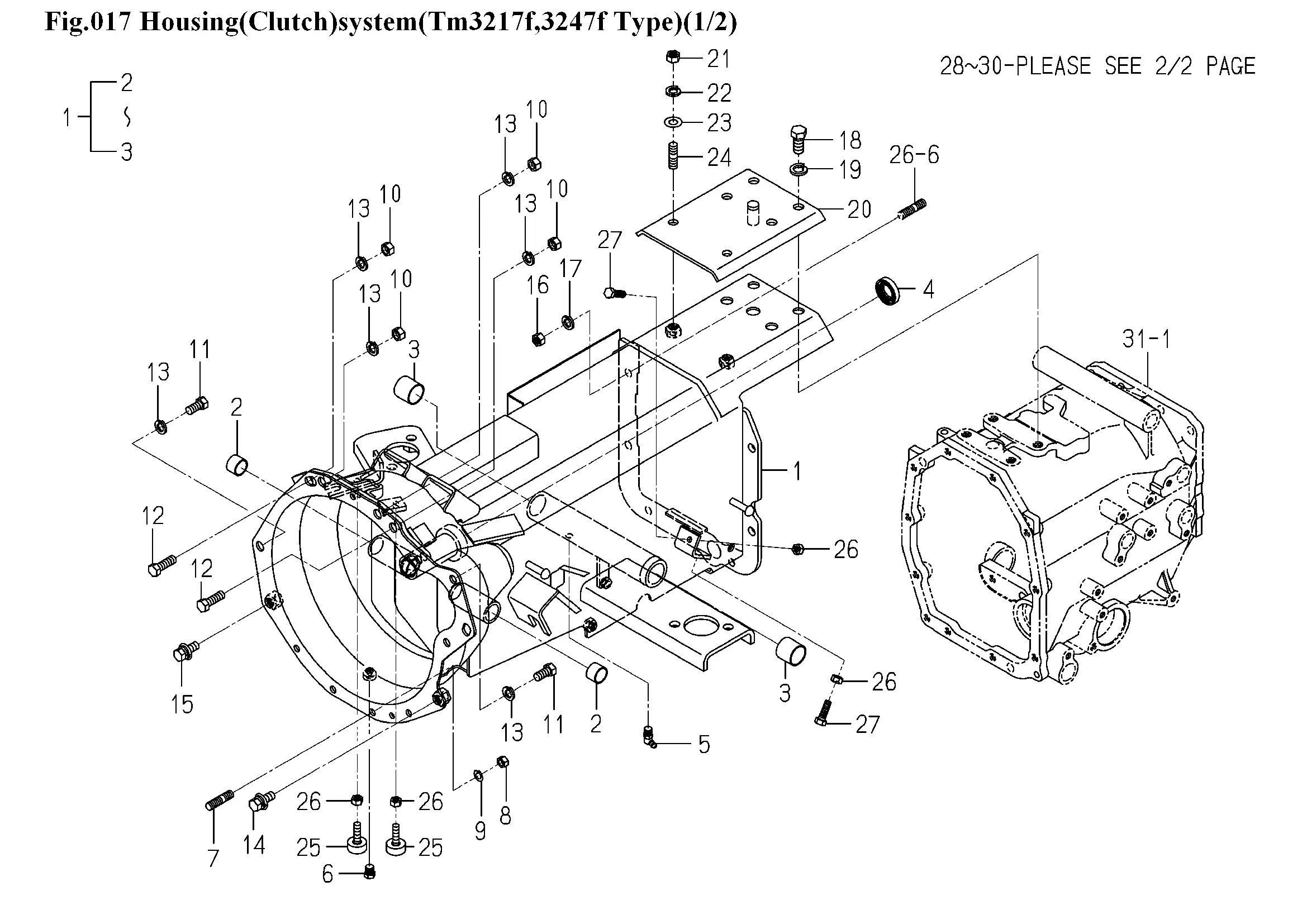

Kupplung, Gehäuse
Ersatzteile (38 Teile)
1
1774-120-300-60
2
1650-201-202-10
3
BUSH/25X28X25
4
V744-120-350-70
5
NIPPLE,GREASE/PT1/8
6
PLUG/SCREW/SEAL
7
STUD/M8X25/7T
8
NUT/M8/7T
9
WASHER,SP/M8
10
Mutter M10x1,25 SW14
11
V203-361-002-00
12
BOLT/M10X30/7T,P1.25
13
WASHER,SP/M10
14
FLANGEBOLT/M12X25
15
FLANGEBOLT/M12X35
16
V304-460-010-00
17
WASHER,SP/M10
18
BOLT/M12X25/7T
19
WASHER,SP/M12
20
PLATE COMP
21
V304-460-010-00
22
WASHER,SP/M10
23
V411-260-010-00
24
STUD/M10X20/7T
25
1421-602-005-10
26
NUT/M8
27
BOLT/TRIMED
28
COVER/SHAFT/4WD COMP
29
TRIM/20
30
FLANGEBOLT/M8X16
31
ARM/CLUTCH SET
32
PIN
33
SPRING,TENSION/53
34
SLEEVE
35
BEARING,CLUTCH RS
36
COVER/CLUTCH ASSY
37
DISK/CLUTCH/200 COMP
38
V231-360-802-00
