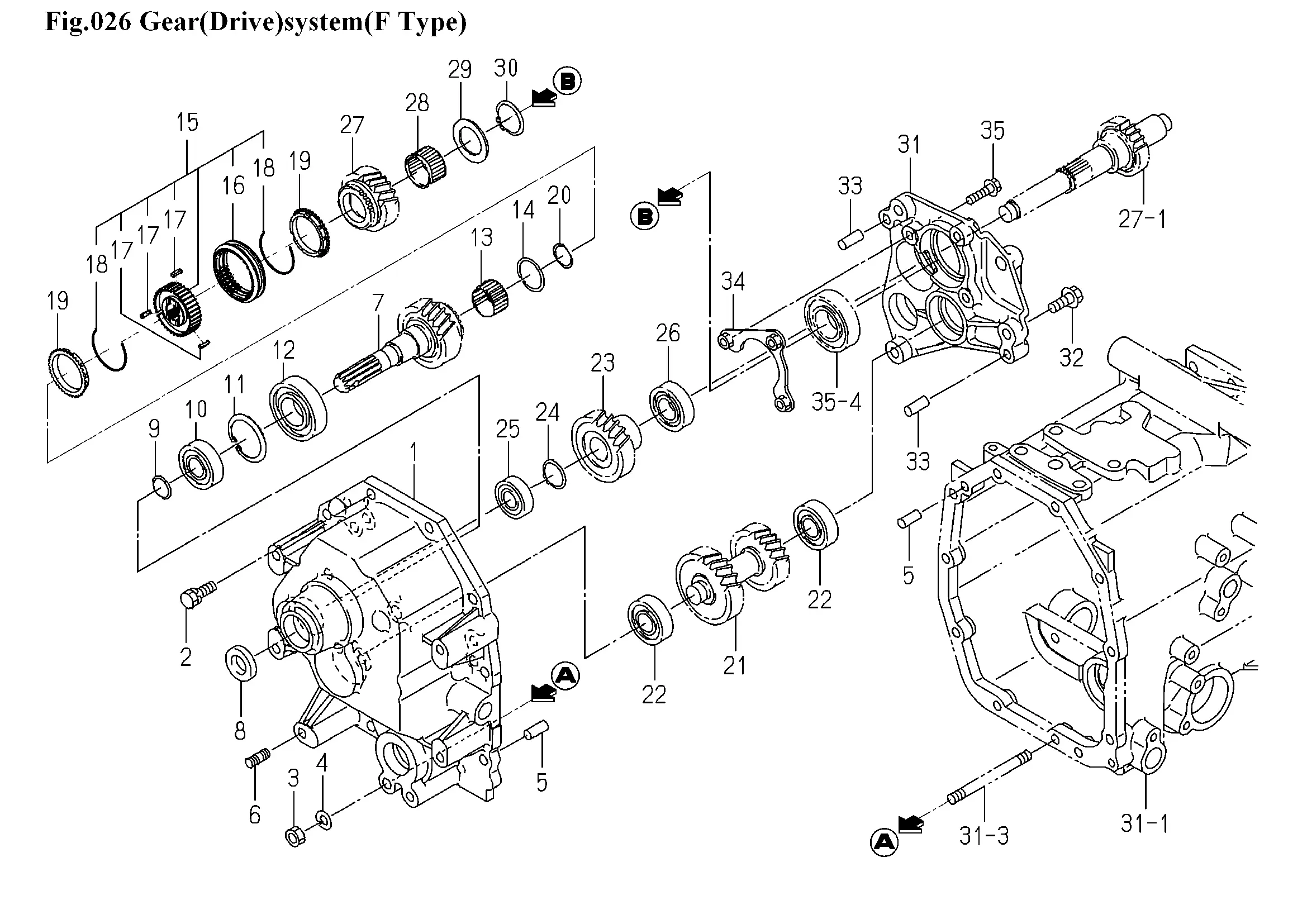

Getriebe
Ersatzteile (35 Teile)
1
METAL/INPUT/FRONT
2
BOLT,S/M10X25/7T
3
V304-460-010-00
4
WASHER,SP/M10
5
PIN,ST,B/10X24
6
STUD/M10X20/7T
7
GEAR/HELICAL/23 COMP
8
V744-120-350-70
9
RING,SNAP/20 C
10
V600-110-620-40
11
RING,SNAP/47 C
12
BEARING/BALL
13
BEARING/NEEDLE
14
LINK
15
SYNCHRONIZER/30 ASSY
16
SLEEVE
17
PIN/INSERT
18
SPRING
19
RING/SYNCHRONIZER
20
CIRCLIP/30
21
1774-126-002-00
22
V600-110-620-40
23
1774-126-003-00
24
RING,SNAP/25 C
25
BEARING,RB/6203
26
BEARING,RB/6205
27
GEAR/HELICAL/22 COMP
28
BEARING/NEEDLE
29
WASHER/36X46X02
30
RING,SNAP/30 C
31
1774-126-005-00
32
V231-361-002-50
33
PIN,ST,B/10X24
34
1774-126-220-00
35
V231-360-803-50
