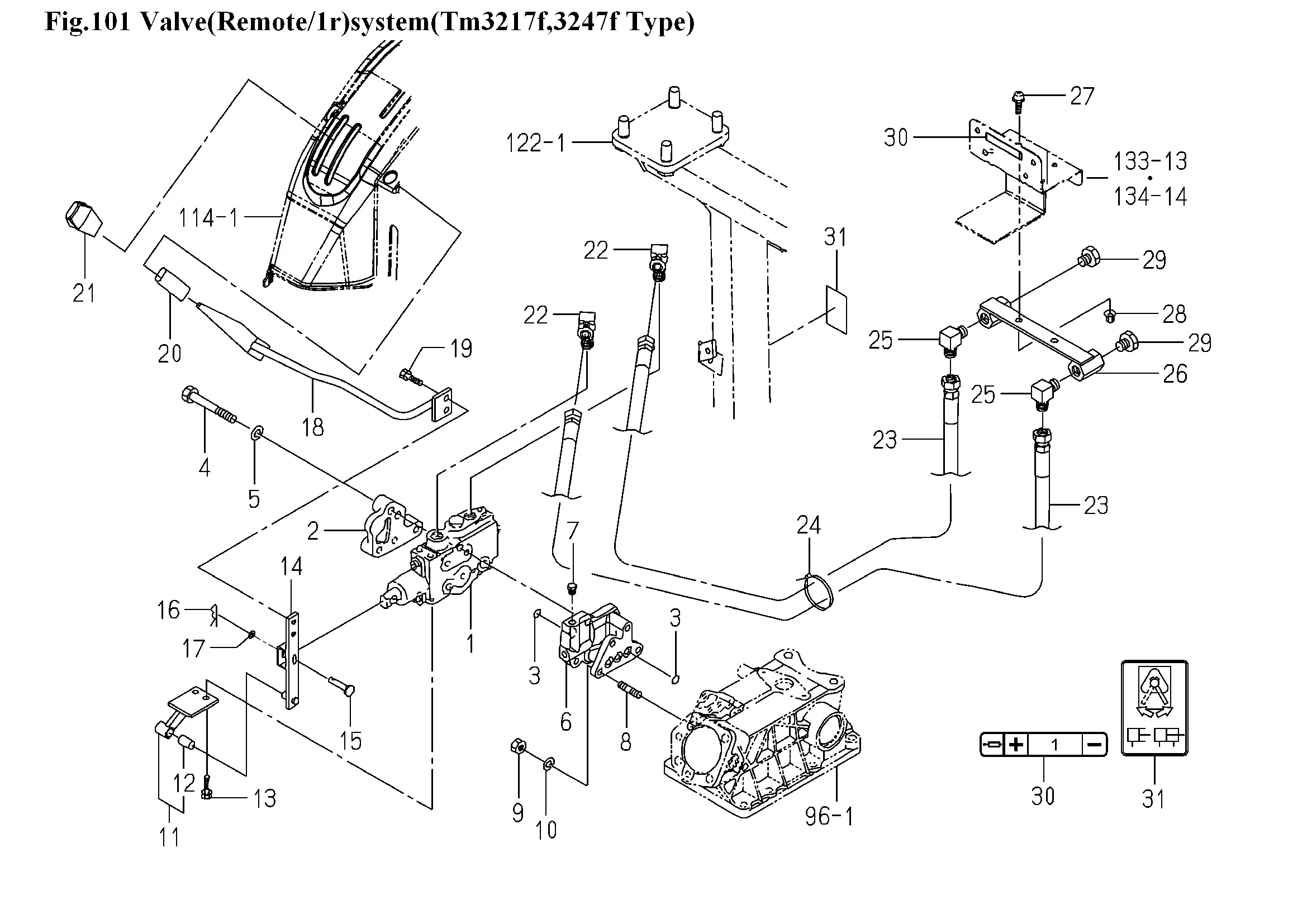

Hydrauliksteuerventil, einfach
Ersatzteile (32 Teile)
1
VALVE/CONTROL ASSY
1
VALVE/CONTROL/114
2
COVER
3
O-RING/1B,P12
4
V201-261-008-00
5
WASHER,SP/M10
6
METAL/AUX/VALVE
7
PLUG/SCREW/SEAL
8
STUD/M8X20,SEAL
9
NUT/M8/7T
10
WASHER,SP/M8
11
HOLDER/1ST ASSY
12
BUSH/10X12X20
13
BOLT,S/M8X20
14
ARM/1ST COMP
15
PIN/06X31
16
PIN/SNAP
17
V411-260-006-00
18
LEVER/1ST COMP
19
V211-260-801-60
20
INSULATOR/LEVER/SUB
21
GRIP/03X17X74
22
CONNECTOR
23
1640-530-270-20
24
1342-402-006-00
25
ADAPTER/90
26
ADAPTER/1ST COMP
27
V111-168-002-00
28
Kombimutter-M8
29
PLUG/SCREW/SEAL
30
1774-902-078-10
31
LABEL/SUBCON
