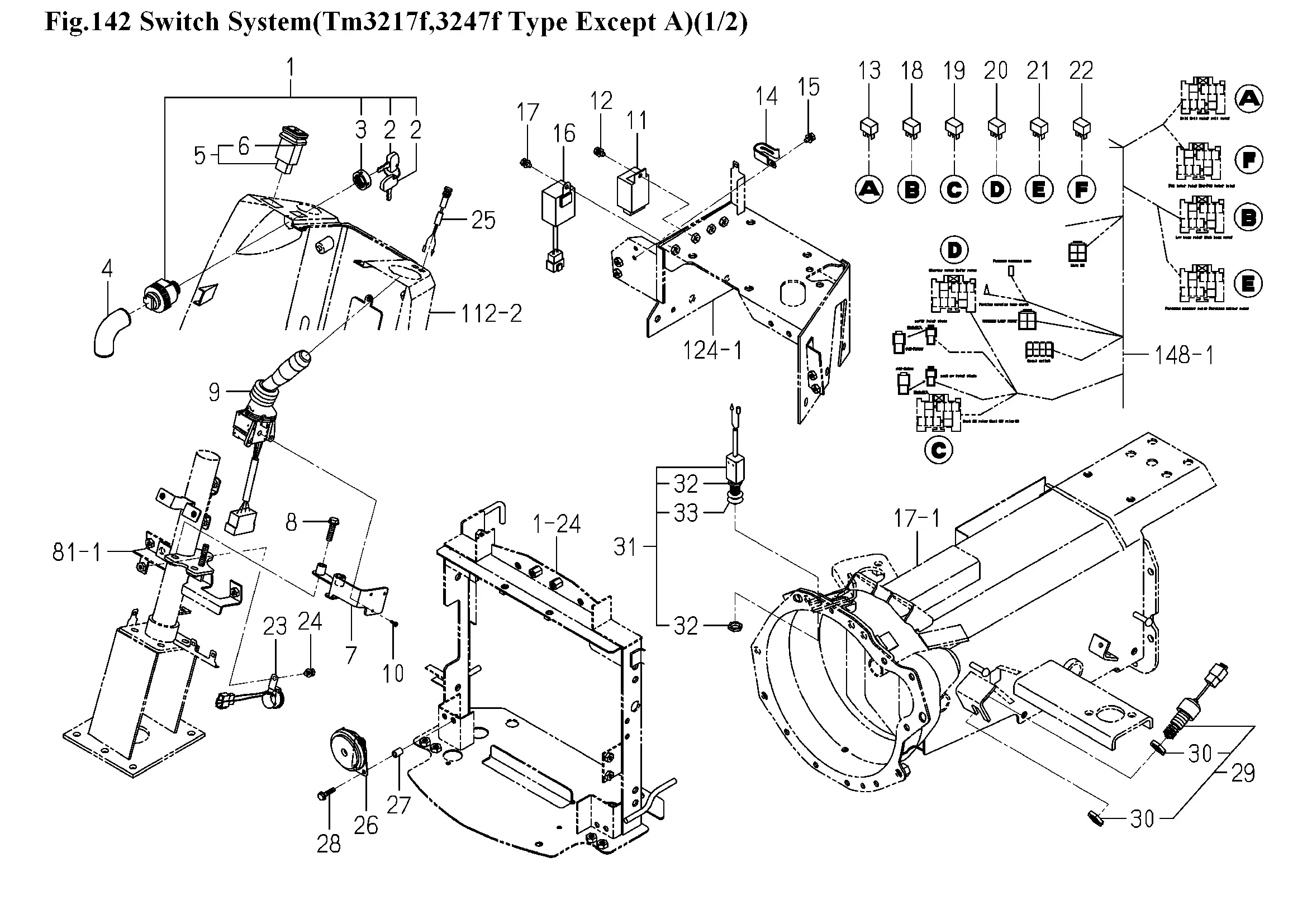

Schalter, Elektrik
Ersatzteile (57 Teile)
1
1716-680-200-20
2
KEY
3
NUT/RING
4
COVER/SWITCH
5
SWITCH/HAZARD ASSY
6
BULB/LAMP/14V60MA
7
1774-680-210-00
8
V231-360-803-00
9
1774-680-260-00
10
1772-652-001-00
11
1739-681-220-20
12
V210-360-601-20
13
RELAY/5P ASSY
14
3737-172-009-00
15
V120-365-001-60
16
UNIT/TIMER ASSY
17
V210-360-601-20
18
RELAY/5P ASSY
19
RELAY/5P ASSY
20
RELAY/5P ASSY
21
RELAY/5P ASSY
22
RELAY/5P ASSY
23
BUZZER
24
V210-360-601-20
25
LAMP/LED ASSY
26
1740-680-530-20
27
COLLAR
28
FLANGEBOLT/M6X25
29
SWITCH/PUSH ASSY
30
NUT
31
1772-654-280-10
32
1772-654-281-00
33
BOOT
34
1774-680-230-00
35
BOLT,SP/M8X16
36
1740-680-520-10
37
BOLT,SP/M6X16
38
SWITCH/LIMIT ASSY
39
SCREW/M03X20
40
PLATE,SWITCH
41
1773-654-240-10
42
1774-680-038-00
43
BOLT,SP/M6X16
44
1716-680-330-10
45
ARM
46
1774-680-032-00
47
BOLT,SP/M6X16
48
BOLT,SP/M8X16
49
1740-680-520-10
50
1774-680-031-00
51
BOLT,SP/M6X16
52
BOLT,SP/M8X16
53
1774-680-310-00
54
BOLT,SP/M8X16
55
SWITCH/BEACON ASSY
56
1774-680-037-00
57
FLANGEBOLT/M8X16
