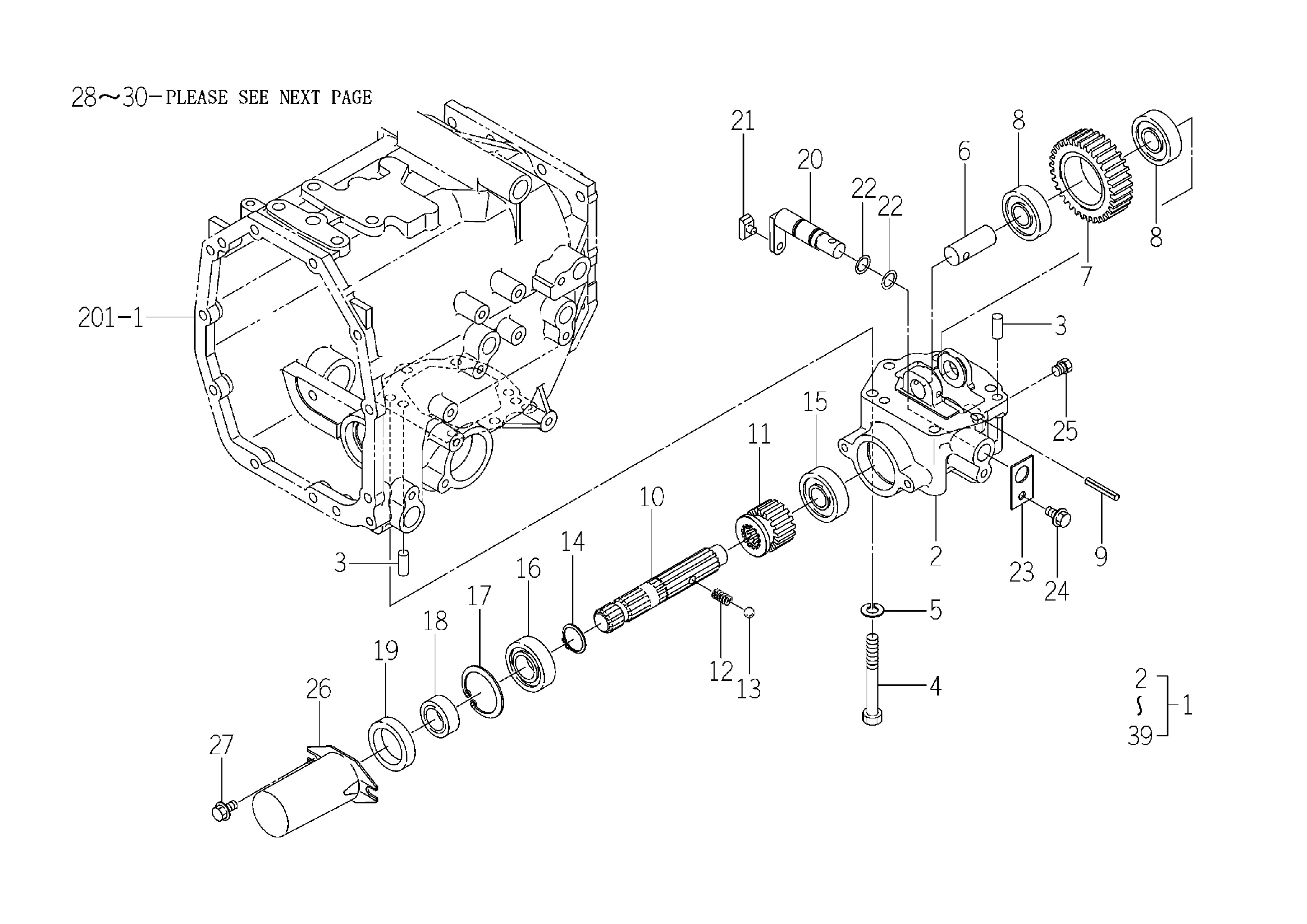

Zwischenachs-PTO (Option)
Ersatzteile (38 Teile)
1
1774-255-200-10
2
Gehäuse, Zwischenahszapfwelle
3
PIN,ST,B/10X24
4
V201-361-009-00
5
WASHER,SP/M10
6
PIN/20X51
7
GEAR/SPUR/33
8
1603-322-003-00
9
V580-140-604-00
10
SHAFT/PTO/MID
11
GEAR/SPUR/16
12
SPRING,SHIFTER
13
BALL,STEEL
14
RING,SNAP/25 C
15
V600-410-630-40
16
V600-410-620-50
17
RING,SNAP/52 C
18
1427-212-003-20
19
SEAL,OIL/TC35528
20
1682-255-210-40
21
COLLAR,SHIFTER
22
O-RING/1A,P14
23
PLATE/I/30X50
24
V231-360-801-20
25
PLUG/SCREW/SEAL
26
1444-314-009-10
27
V231-360-801-20
28
Arm
29
PIN,SPRING/6X28 W
31
1774-265-001-20
32
WASHER,PL/M8
33
V500-162-502-50
34
1774-265-210-10
35
BUSH/18X20X25
36
GRIP/MID/PTO
37
INSULATOR/LEVER/SUB
38
WASHER,PL/M18
39
RING,SNAP/18 C
