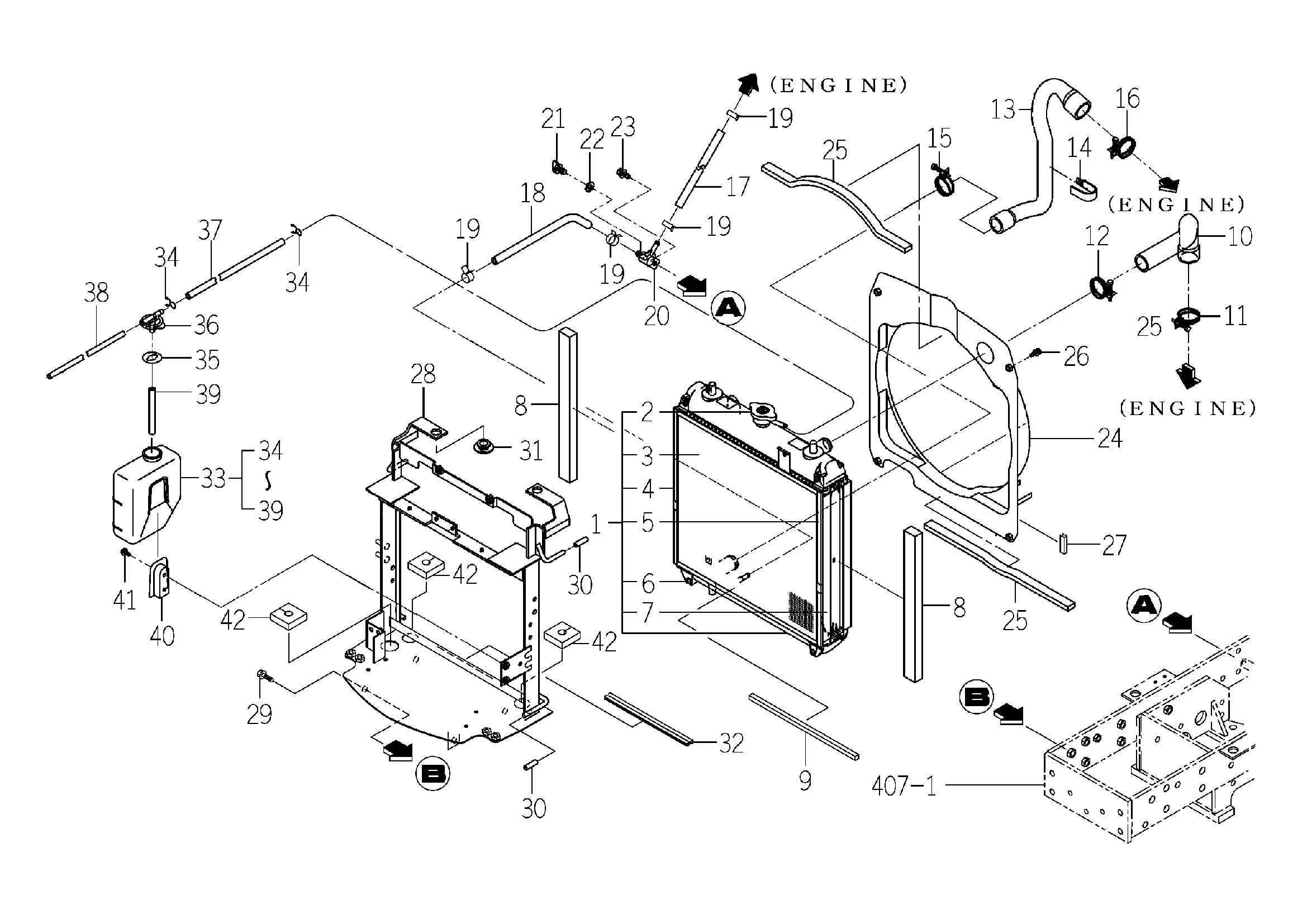

Kühler
Ersatzteile (42 Teile)
1
Kühler
2
CAP
3
PROTECTOR
4
GUIDE/RH
5
GUIDE/LH
6
SCREW/P
7
PACKING
8
INSULATOR/20X350
9
INSULATOR/10X10X290
10
HOSE/RADIATOR/INLET
11
CLAMP/WIRE/36-44
12
J061-230-038-00
13
HOSE/RADIATOR/OUTLET
14
CLAMP
15
J061-230-038-00
16
CLAMP/WIRE/36-44
17
HOSE/270
18
HOSE/230
19
CLIP/HOSE/14.7-15.9
20
CONNECTOR
21
1424-101-203-00
22
PACKING
23
BOLT,SP/M8X20
24
SHROUD COMP
25
INSULATOR
26
FLANGEBOLT/M6X20
27
3680-155-005-00
28
Halter, Kühler
29
FLANGEBOLT/M12X25
30
TUBE/07X09X30
31
INSULATOR
32
INSULATOR/220
33
RESERVETANK ASSY
34
CLAMP
35
PACKING
36
CAP
37
1716-102-281-00
38
HOSE/RUBBER
39
6221-408-011-00
40
Halter
41
FLANGEBOLT/M6X12
42
INSULATOR/50X50X15
