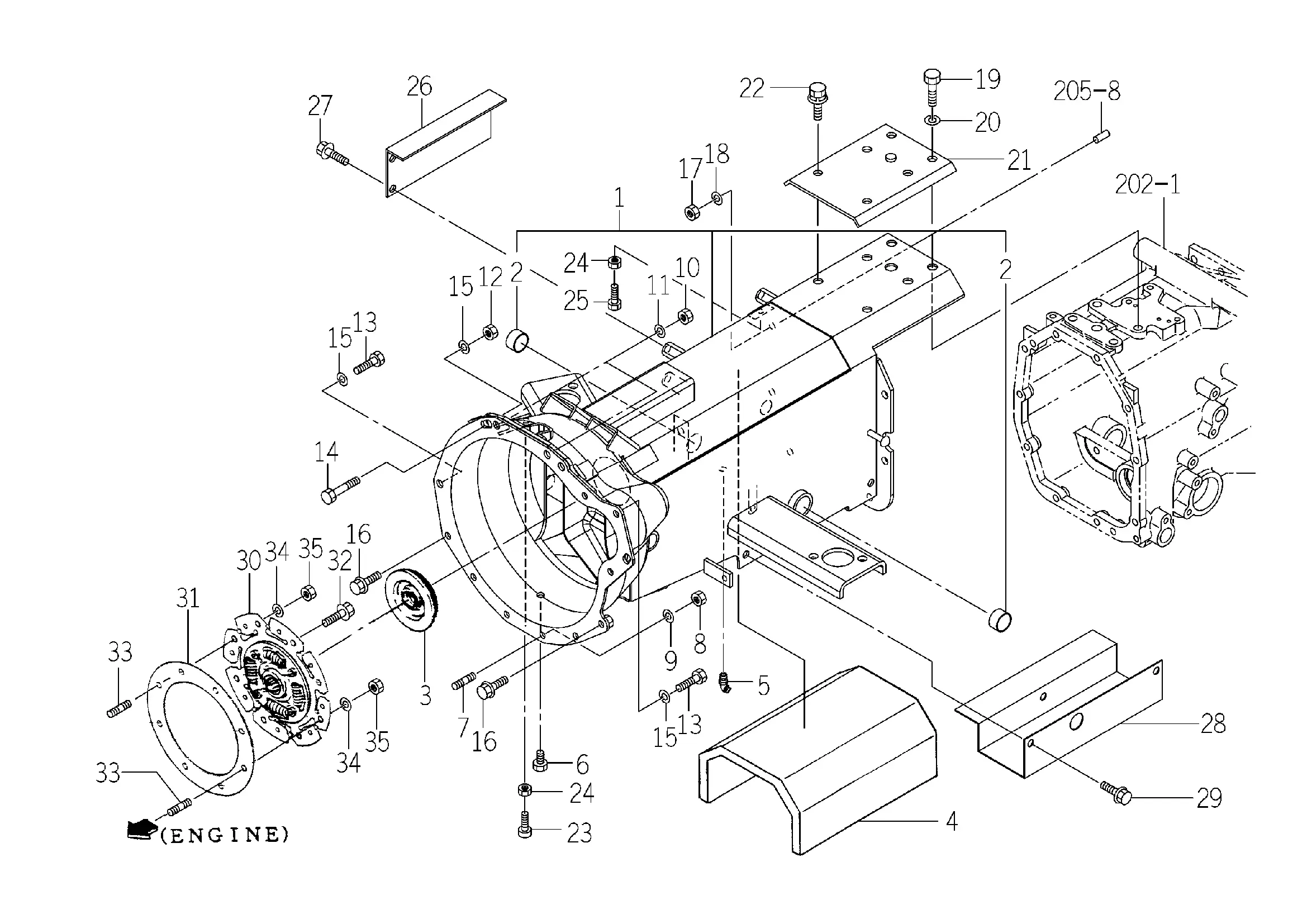

Kupplung, Gehäuse
Ersatzteile (35 Teile)
1
Gehäuse, Kupplung
2
BUSH/25X28X25
3
GROMMET/25X70X03
4
INSULATOR
5
NIPPLE,GREASE/PT1/8
6
PLUG/SCREW/SEAL
7
STUD/M8X25/7T
8
NUT/M8/7T
9
WASHER,SP/M8
10
V304-460-012-00
11
WASHER,SP/M12
12
Mutter M10x1,25 SW14
13
V203-361-002-00
14
BOLT/M10X30/7T,P1.25
15
WASHER,SP/M10
16
FLANGEBOLT/M12X25
17
V304-460-010-00
18
WASHER,SP/M10
19
BOLT/M12X25/7T
20
WASHER,SP/M12
21
PLATE COMP
22
BOLT,SP/M10X25/7T
23
1421-602-005-10
24
NUT/M8
25
BOLT/TRIMED
26
1774-120-002-00
27
V231-361-001-60
28
COVER/SHAFT/4WD
29
FLANGEBOLT/M8X16
30
Kupplungsscheibe
31
Platte
32
V231-360-802-00
33
STUD/M8X25/7T
34
WASHER,SP/M8
35
NUT/M8/7T
