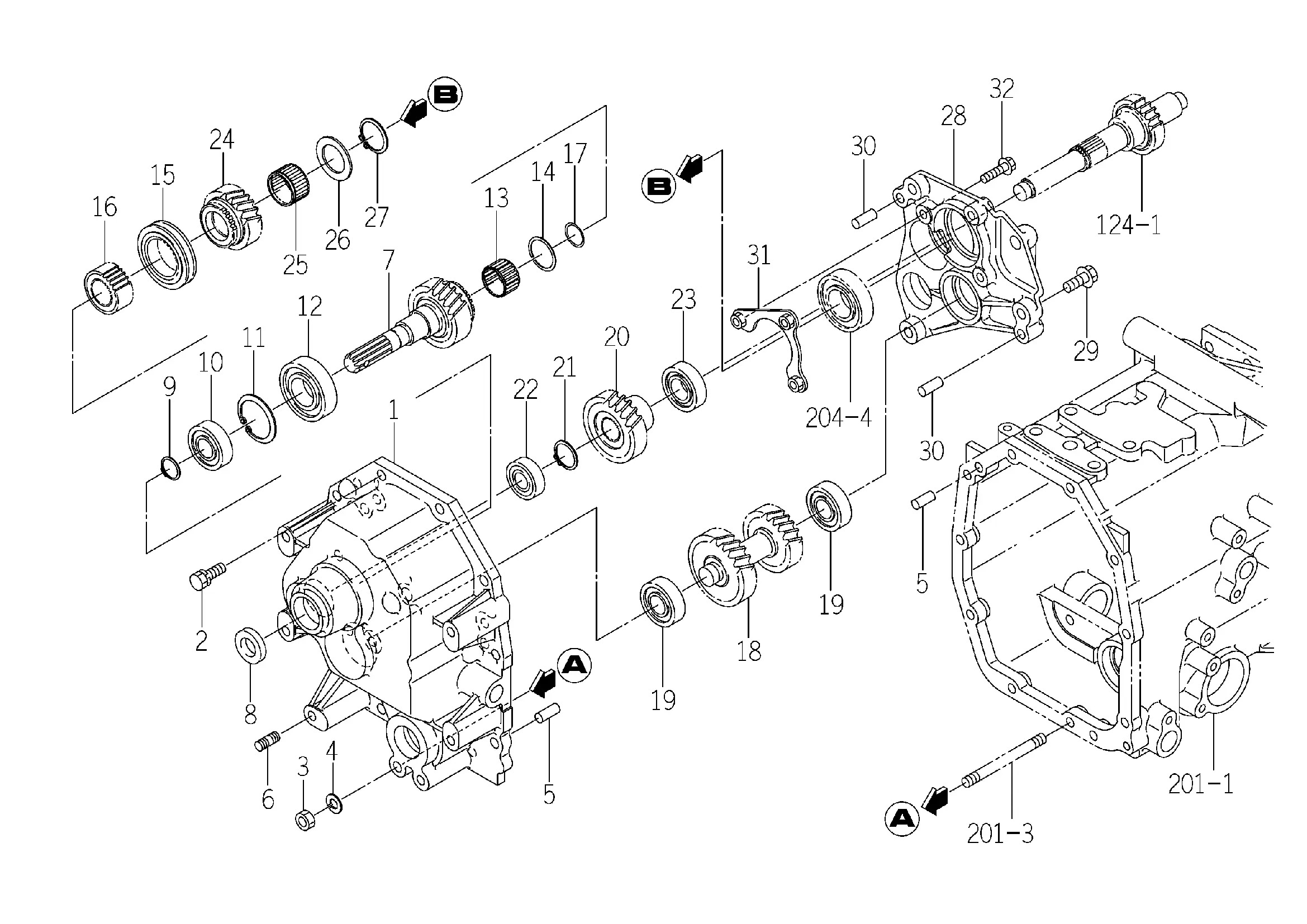

Getriebe
Ersatzteile (32 Teile)
1
1774-126-001-00
2
BOLT,S/M10X25/7T
3
V304-460-010-00
4
WASHER,SP/M10
5
PIN,ST,B/10X24
6
STUD/M10X20/7T
7
Welle, Eingang Z23
8
V744-120-350-70
9
RING,SNAP/20 C
10
V600-410-620-40
11
RING,SNAP/47 C
12
BEARING/BALL
13
BEARING/NEEDLE
14
LINK
15
Kupplungsring
16
1774-126-007-00
17
CIRCLIP/30
18
1774-126-002-00
19
V600-410-620-40
20
1774-126-003-00
21
RING,SNAP/25 C
22
V600-410-620-30
23
V600-410-620-50
24
GEAR/HELICAL/22
25
BEARING/NEEDLE
26
WASHER/36X46X02
27
RING,SNAP/30 C
28
1774-126-005-00
29
V231-361-002-50
30
PIN,ST,B/10X24
31
1774-126-220-00
32
V231-360-803-50
