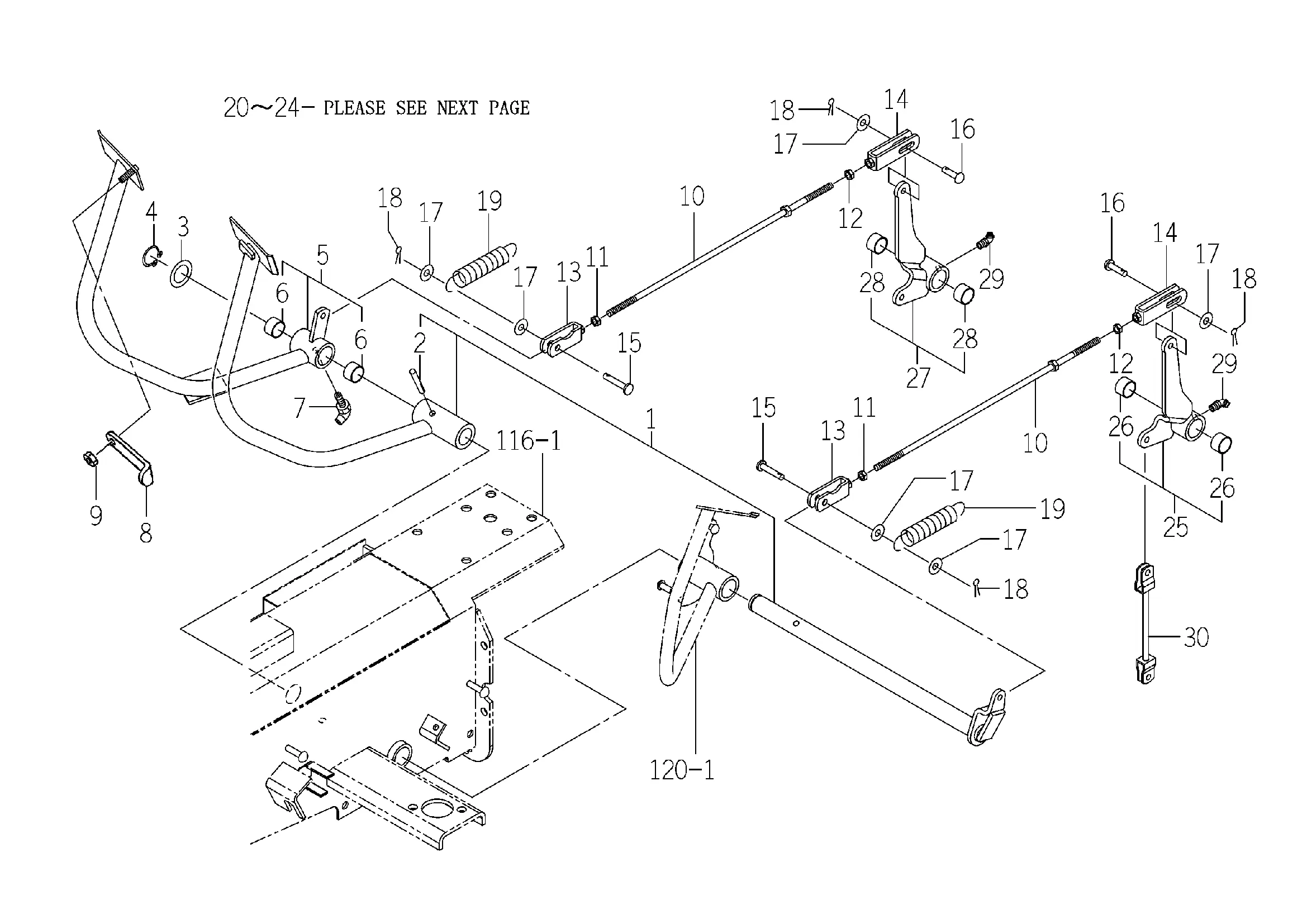

Pedal, Bremse
Ersatzteile (41 Teile)
1
1774-312-210-10
2
PIN,TAPER/8X50
3
2152-442-013-00
4
RING,SNAP/25 C
5
1774-312-240-00
6
BUSH/25X28X15
7
NIPPLE,GREASE/PT1/8
8
Platte
9
1719-312-001-00
10
Strebe
11
NUT/LH/M08
12
NUT/M8
13
Gabel, Bremsgestänge li
14
Gabel, Bremsgestänge
15
PIN/08X39
16
PIN,YOKE A
17
WASHER,PL/M8
18
PIN,SPLIT/2.5X20
19
SPRING/HE120
20
1774-312-260-00
21
BUSH/25X28X25
22
NIPPLE,GREASE/PT1/8
23
1774-312-280-20
24
PIN,TAPER/8X50
25
1774-312-330-00
26
BUSH/25X28X15
27
1774-312-350-00
28
BUSH/25X28X15
29
NIPPLE,GREASE/PT1/8
30
ROD/120 COMP
31
ROD/M08X65 COMP
32
FORK/LH COMP
33
FORK/RH COMP
34
NUT/M8
35
NUT/LH/M08
36
PIN
37
WASHER,PL/M8
38
PIN,SPLIT/2X20
39
Hebel, Bremse
40
RING,SNAP/22 C
41
SPRING/HE110
