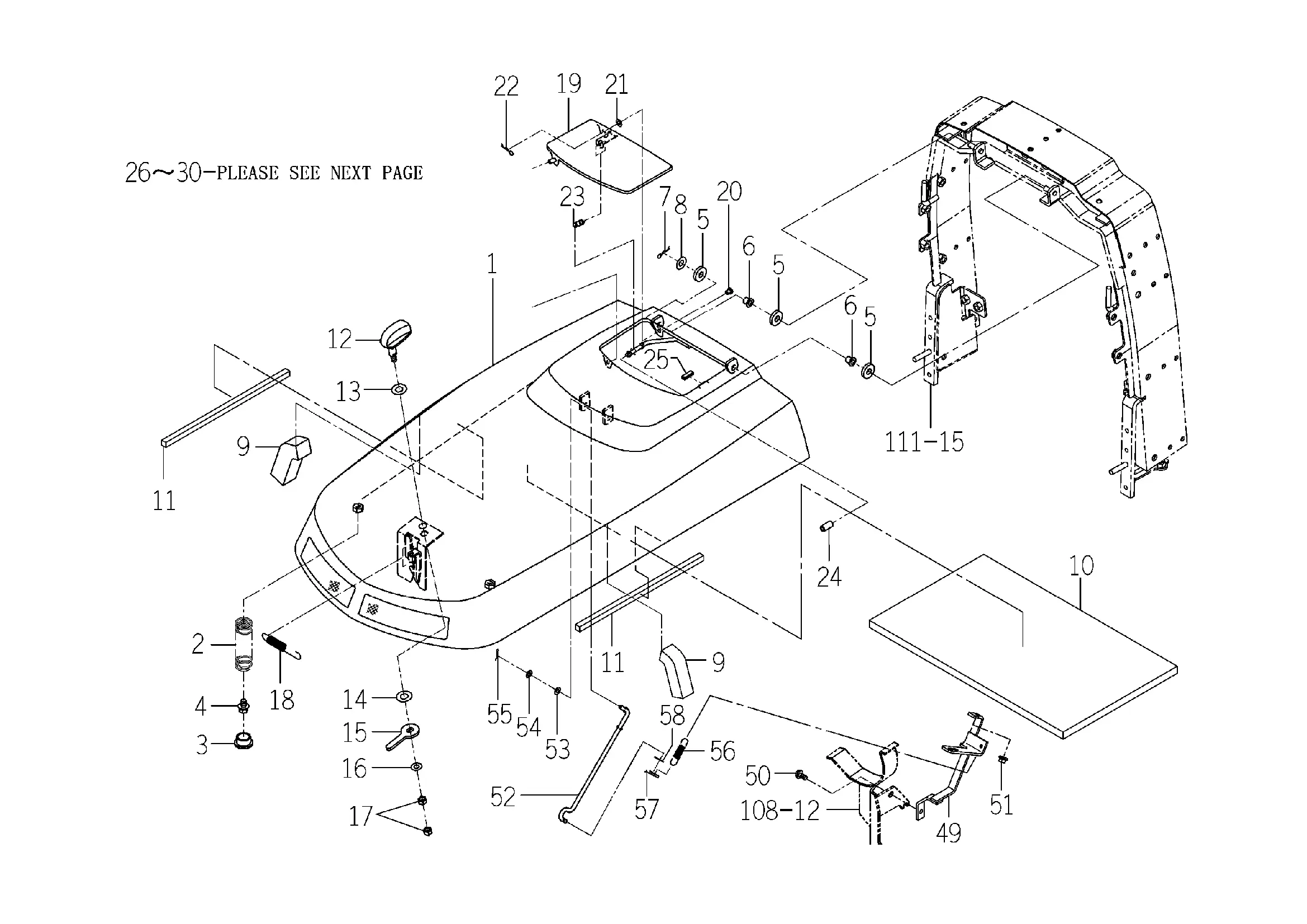

Motorhaube
Ersatzteile (58 Teile)
1
HOOD/CY COMP
2
SPRING/HC090
3
BUSH/19X30X14
4
BOLT,SP/M8X16
5
CUSHION/RUBBER/10X25
6
BUSH/08X15X11
7
PIN/SNAP
8
V411-260-010-00
9
INSULATOR
10
INSULATOR/HOOD
11
SEAL/10X10X420
12
Griff
13
WASHER/12X25X02
14
3610-440-018-00
15
ARM/PLATE
16
WASHER,PL/M8
17
NUT/M8
18
SPRING/HE089
19
COVER COMP
20
PIN/06X07
21
V411-260-006-00
22
PIN/SNAP
23
SPRING/HE036
24
TUBE/06X10X20
25
TRIM/20
26
1763-102-220-00
27
BOLT,SP/M8X20
28
TUBE/07X09X30
29
COVER/SIDE/LH
30
Polster, li
31
SPRING
32
SCREW,SP/M6X12
33
Netz, seitl.
34
WASHER/6X14X3
35
NUT,SPEED/M6
36
INSULATOR
37
TRIM/170
38
1750-605-003-10
39
COVER/SIDE/RH
40
Polster, re
41
SPRING
42
SCREW,SP/M6X12
43
Netz, seitl.
44
WASHER/6X14X3
45
NUT,SPEED/M6
46
INSULATOR
47
Isolierung
48
Isolierung, re.
49
1766-601-300-10
50
FLANGEBOLT/M8X16
51
Kombimutter-M8
52
ROD/HOOD
53
WASHER/6X14X3
54
V411-260-006-00
55
PIN/SNAP
56
SPRING,TENSION/53
57
WASHER/08X22X03
58
WASHER/6X24X2
