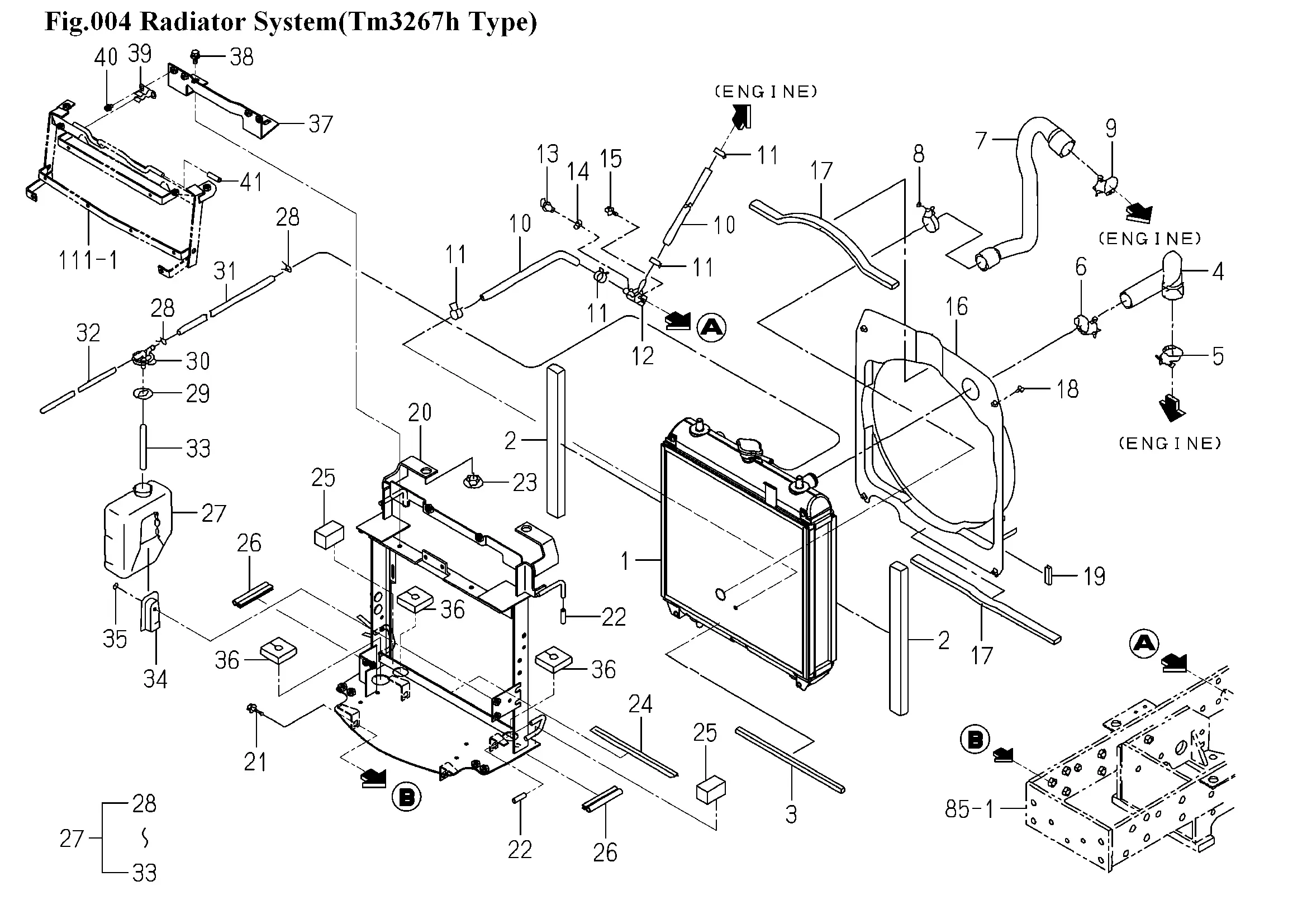

Kühler
Ersatzteile (43 Teile)
1
RADIATOR/390X35 ASSY
2
INSULATOR/20X350
3
INSULATOR/10X10X290
4
HOSE/RADIATOR/INLET
5
CLAMP/WIRE/36-44
6
J061-230-038-00
7
HOSE/RADIATOR/OUTLET
8
J061-230-038-00
9
CLAMP/WIRE/36-44
10
HOSE/270
11
CLIP/HOSE/14.7-15.9
12
CONNECTOR
13
1424-101-203-00
14
PACKING
15
BOLT,SP/M8X20
16
SHROUD COMP
17
INSULATOR
18
FLANGEBOLT/M6X20
19
3680-155-005-00
20
BRACKET/RADIATOR/67
21
FLANGEBOLT/M12X25
22
TUBE/07X09X30
23
INSULATOR
24
INSULATOR/220
25
Dichtung
26
TRIM/90
27
RESERVETANK ASSY
28
CLAMP
29
PACKING
30
CAP
31
1716-102-281-00
32
HOSE/RUBBER
33
6221-408-011-00
34
Halter
35
FLANGEBOLT/M6X12
36
INSULATOR/50X50X15
37
BRACKET COMP
38
BOLT,SP/M8X16
39
SPRING
40
SCREW,SP/M6X12
41
TUBE/07X09X30
ob
PROTECTOR
ob
CAP
