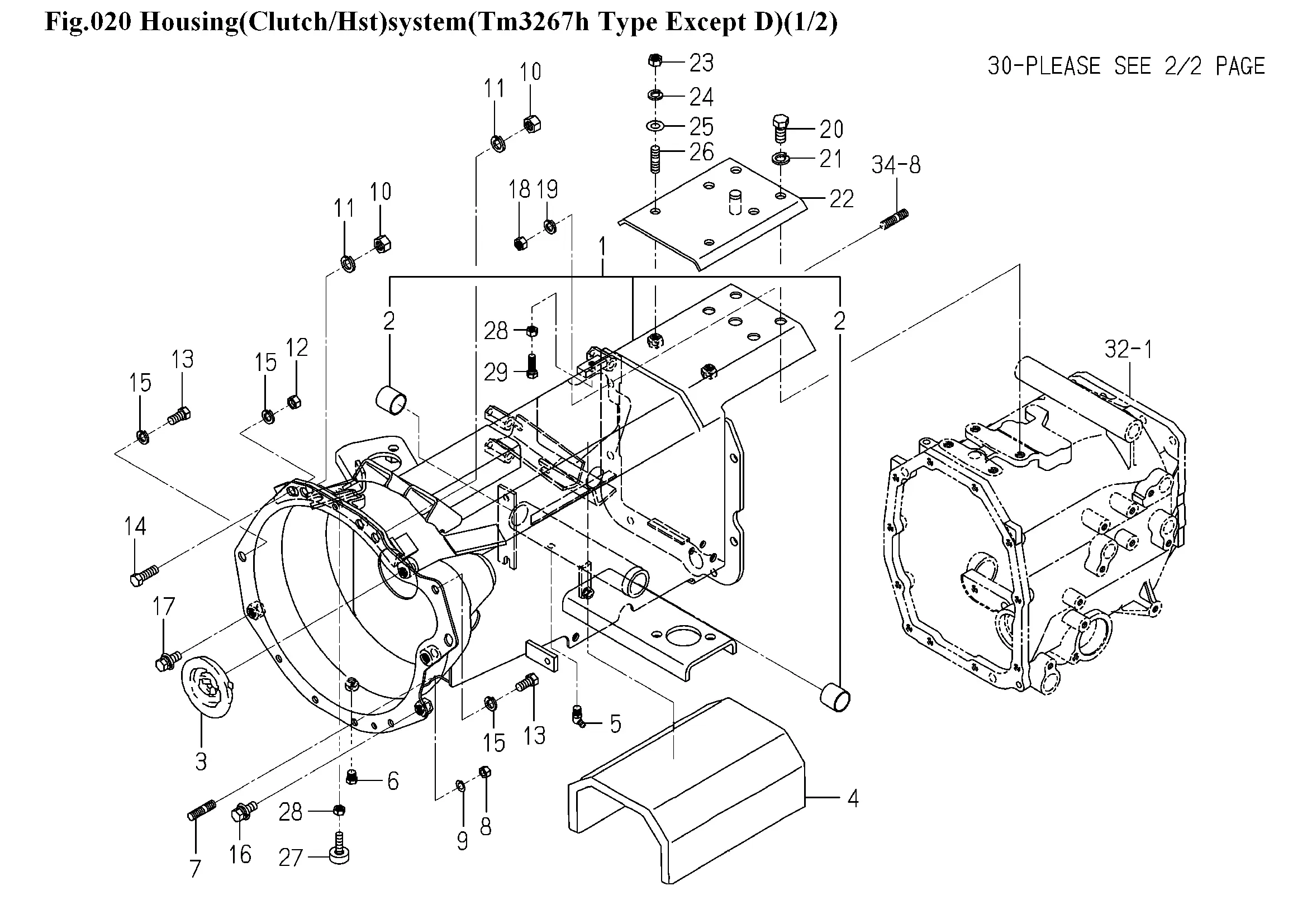

Kupplung, Gehäuse (Bügel)
Ersatzteile (39 Teile)
1
1774-120-620-00
2
BUSH/25X28X25
3
GROMMET/25X70X03
4
INSULATOR
5
NIPPLE,GREASE/PT1/8
6
PLUG/SCREW/SEAL
7
STUD/M8X25/7T
8
NUT/M8/7T
9
WASHER,SP/M8
10
V304-460-012-00
11
WASHER,SP/M12
12
Mutter M10x1,25 SW14
13
V203-361-002-00
14
BOLT/M10X30/7T,P1.25
15
WASHER,SP/M10
16
FLANGEBOLT/M12X25
17
FLANGEBOLT/M12X35
18
V304-460-010-00
19
WASHER,SP/M10
20
BOLT/M12X25/7T
21
WASHER,SP/M12
22
PLATE COMP
23
V304-460-010-00
24
WASHER,SP/M10
25
V411-260-010-00
26
STUD/M10X20/7T
27
1421-602-005-10
28
NUT/M8
29
BOLT/TRIMED
30
1774-120-002-00
31
V231-361-001-60
32
COVER/SHAFT/4WD COMP
33
TRIM/20
34
FLANGEBOLT/M8X16
35
1685-120-310-10
36
V231-360-802-00
37
STUD/M8X25/7T
38
WASHER,SP/M8
39
NUT/M8/7T
