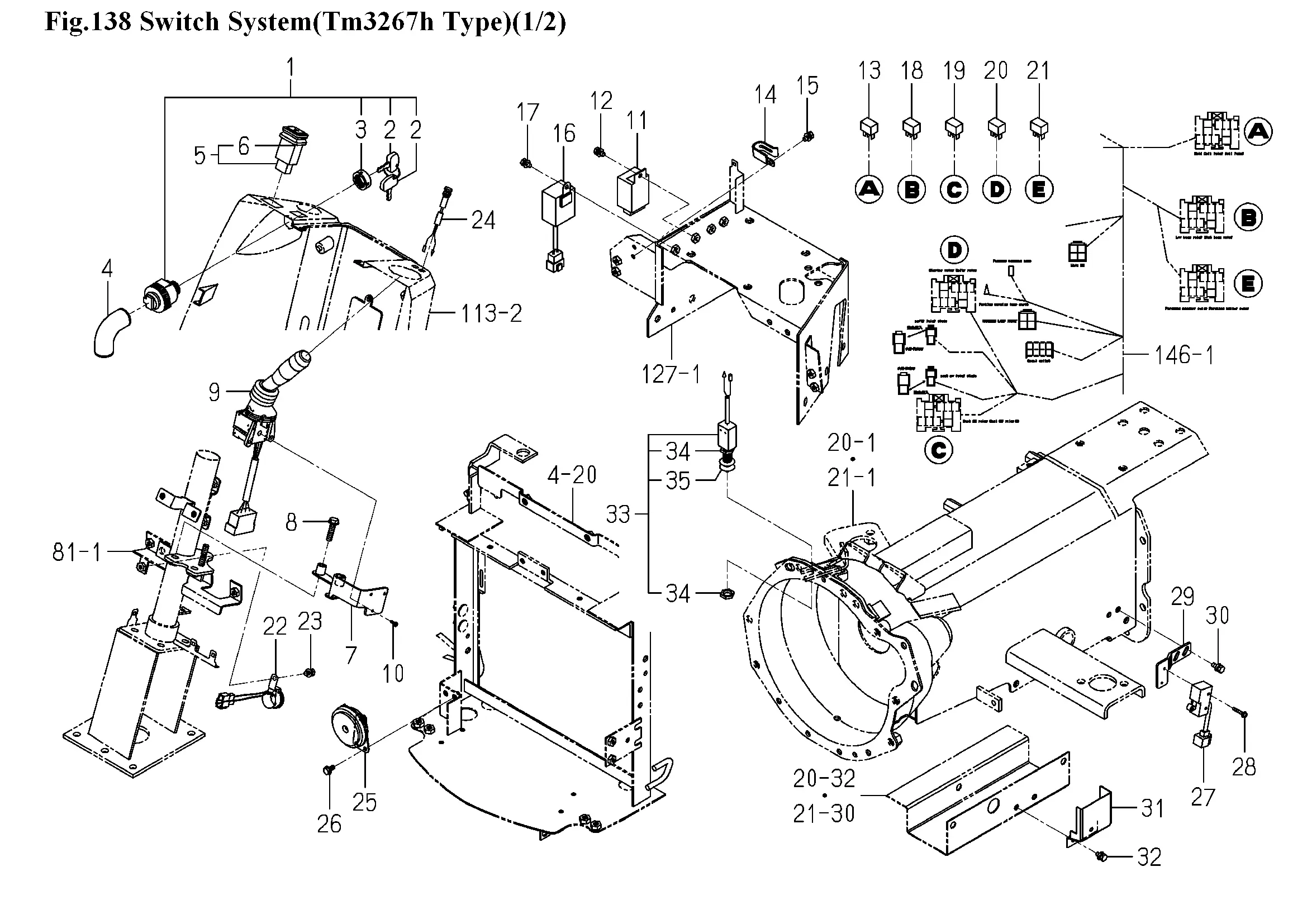

Schalter, Elektrik
Ersatzteile (48 Teile)
1
1716-680-200-20
2
KEY
3
NUT/RING
4
COVER/SWITCH
5
SWITCH/HAZARD ASSY
6
BULB/LAMP/14V60MA
7
1774-680-210-00
8
V231-360-803-00
9
1774-680-260-00
10
1772-652-001-00
11
1739-681-220-20
12
V210-360-601-20
13
RELAY/5P ASSY
14
3737-172-009-00
15
V120-365-001-60
16
UNIT/TIMER ASSY
17
V210-360-601-20
18
RELAY/5P ASSY
19
RELAY/5P ASSY
20
RELAY/5P ASSY
21
RELAY/5P ASSY
22
BUZZER
23
V210-360-601-20
24
LAMP/LED ASSY
25
1740-680-530-20
26
FLANGEBOLT/M6X12
27
SWITCH,SAFETY ASSY
28
V120-364-002-50
29
1774-680-035-00
30
BOLT,SP/M6X16
31
COVER/SENSOR/HST
32
V210-360-601-20
33
1772-654-280-10
34
1772-654-281-00
35
BOOT
36
1774-680-230-00
37
BOLT,SP/M8X16
38
1740-680-520-10
39
BOLT,SP/M6X16
40
SWITCH/LIMIT ASSY
41
SCREW/M03X20
42
PLATE,SWITCH
43
1773-654-240-10
44
BRACKET/SWITCH/SUB
45
V210-360-601-20
46
SWITCH/BEACON ASSY
47
1774-680-037-00
48
FLANGEBOLT/M8X16
