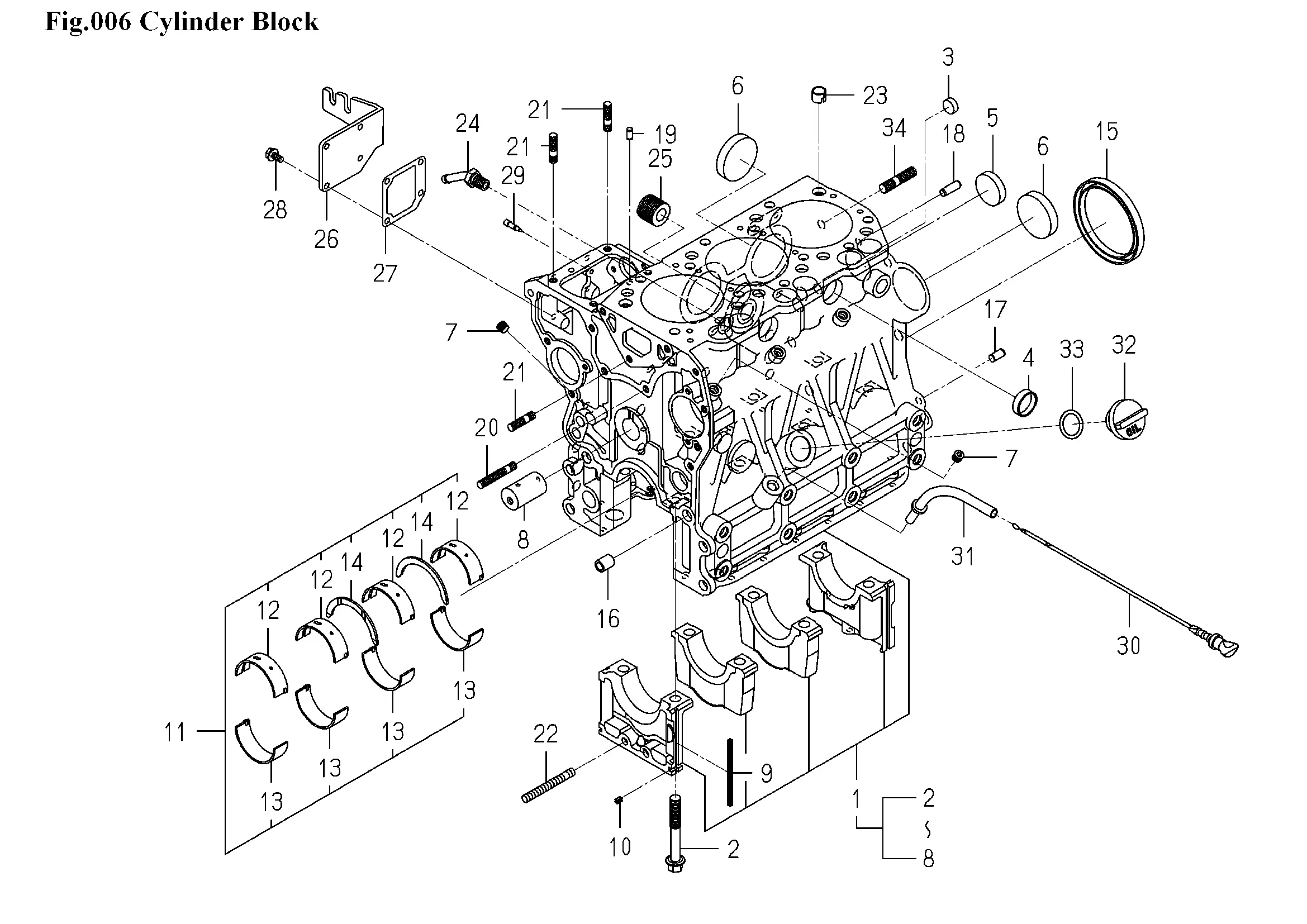

Motorblock, KW-Lagerung
Ersatzteile (34 Teile)
1
6211-210-081-30
2
BOLT
3
CUP/SEALING/16
4
CUP/SEALING/28
5
CUP/SEALING/36
6
CUP/SEALING/50
7
6209-605-007-10
8
PIN/IDLEGEAR
9
SEAL,BEARING CAP
10
SEAL,BEARING CAP/7
11
BEARING/CRANK SET
12
BEARING/CRANK/UPPER
13
BEARING/CRANK/LOWER
14
BEARING/THRUST/CRANK
15
OILSEAL
16
PIN/TUBE
17
PIN/STRAIGHT
18
PIN,ST,B/8X24
19
6209-740-005-00
20
STUD/M8X40
21
STUD
22
STUD/M8X60/7T
23
DOWEL
24
PIPE/WATERDRAIN
25
CONNECTOR,OIL FILTER
26
6211-291-015-20
27
6211-292-001-20
28
FLANGEBOLT/M6X12
29
PIN
30
6211-760-032-20
31
GUIDE/LEVELGAGE COMP
32
CAP/OILFILLER
33
O-RING/1A,P25
34
6209-300-030-00
