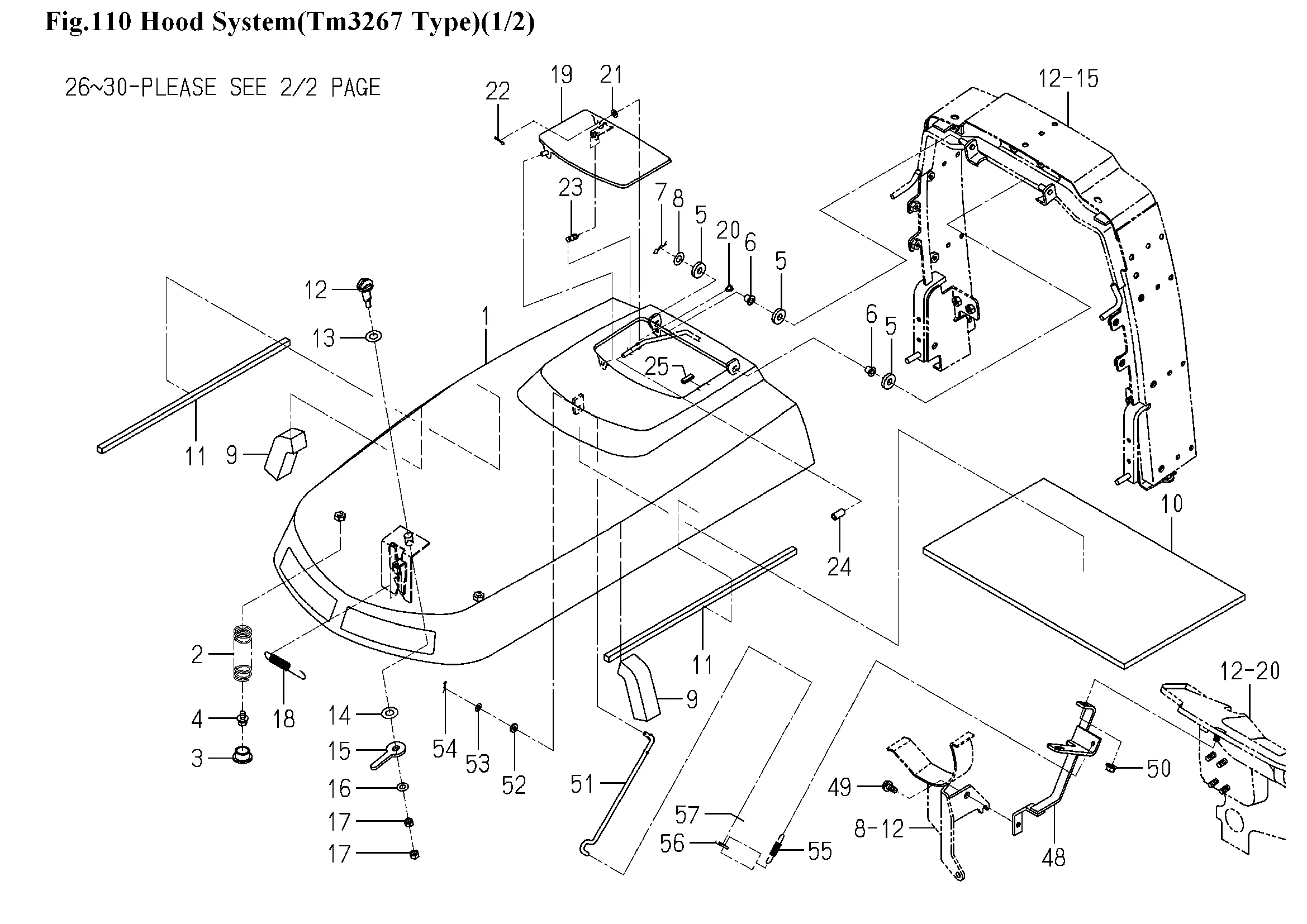

Motorhaube
Ersatzteile (58 Teile)
1
HOOD/CY COMP
2
SPRING/HC090
3
BUSH/19X30X14
4
BOLT,SP/M8X16
5
CUSHION/RUBBER/10X25
6
BUSH/08X15X11
7
PIN/SNAP
8
V411-260-010-00
9
INSULATOR
10
INSULATOR/HOOD
11
SEAL/10X10X420
12
PIN/HOOD
13
WASHER/12X25X02
14
3610-440-018-00
15
ARM/PLATE
16
WASHER,PL/M8
17
NUT/M8
18
SPRING/HE089
19
COVER COMP
20
PIN/06X07
21
V411-260-006-00
22
PIN/SNAP
23
SPRING/HE036
24
TUBE/06X10X20
25
TRIM/20
26
PLATE/LOCK COMP
27
BOLT,SP/M8X20
28
COVER/SIDE/L/LH COMP
29
INSULATOR
30
SPRING
31
SCREW,SP/M6X12
32
NET/SIDE/LH
33
RIVET,BLIND/4X7
34
GROMMET/9
35
INSULATOR
36
GROMMET
37
TRIM/150
38
INSULATOR/30
39
COVER/SIDE/L/RH COMP
40
INSULATOR
41
SPRING
42
SCREW,SP/M6X12
43
NET/SIDE/RH
44
RIVET,BLIND/4X7
45
INSULATOR
46
GROMMET/9
47
GROMMET
48
1766-601-300-10
49
FLANGEBOLT/M8X16
50
Kombimutter-M8
51
ROD/HOOD
52
WASHER/6X14X3
53
V411-260-006-00
54
PIN/SNAP
55
SPRING,TENSION/53
56
WASHER/08X22X03
57
WASHER/6X24X2
ob
Werkzeug, öffnen Motorhaube
