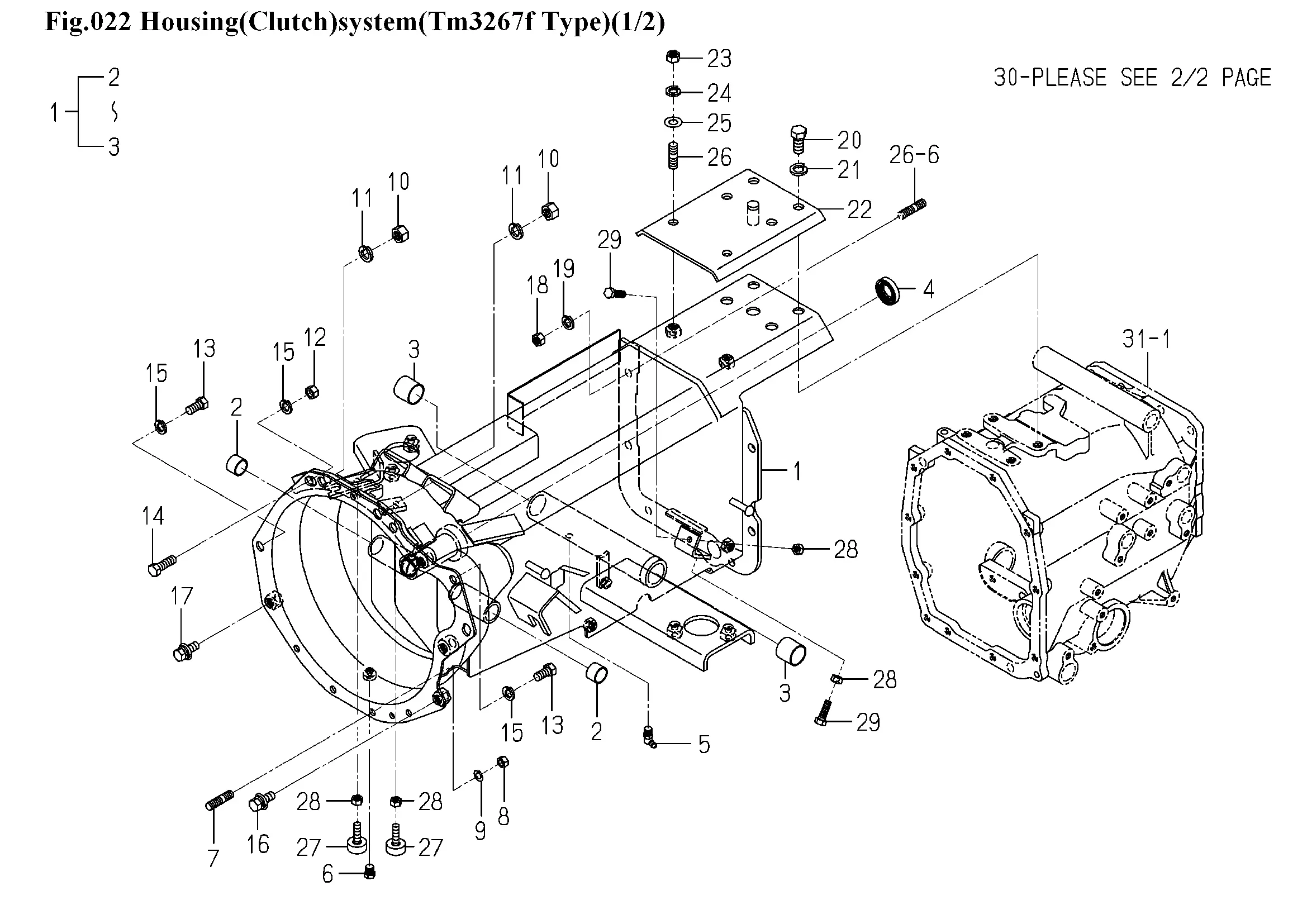

Kupplung, Gehäuse
Ersatzteile (40 Teile)
1
1774-120-700-60
2
1650-201-202-10
3
BUSH/25X28X25
4
V744-120-350-70
5
NIPPLE,GREASE/PT1/8
6
PLUG/SCREW/SEAL
7
STUD/M8X25/7T
8
NUT/M8/7T
9
WASHER,SP/M8
10
V304-460-012-00
11
WASHER,SP/M12
12
Mutter M10x1,25 SW14
13
V203-361-002-00
14
BOLT/M10X30/7T,P1.25
15
WASHER,SP/M10
16
FLANGEBOLT/M12X25
17
FLANGEBOLT/M12X35
18
V304-460-010-00
19
WASHER,SP/M10
20
BOLT/M12X25/7T
21
WASHER,SP/M12
22
PLATE COMP
23
V304-460-010-00
24
WASHER,SP/M10
25
V411-260-010-00
26
STUD/M10X20/7T
27
1421-602-005-10
28
NUT/M8
29
BOLT/TRIMED
30
COVER/SHAFT/4WD COMP
31
TRIM/20
32
FLANGEBOLT/M8X16
33
ARM/CLUTCH SET
34
PIN
35
SPRING,TENSION/53
36
SLEEVE
37
BEARING,CLUTCH RS
38
COVER/CLUTCH ASSY
39
DISK/CLUTCH/200 COMP
40
V231-360-802-00
