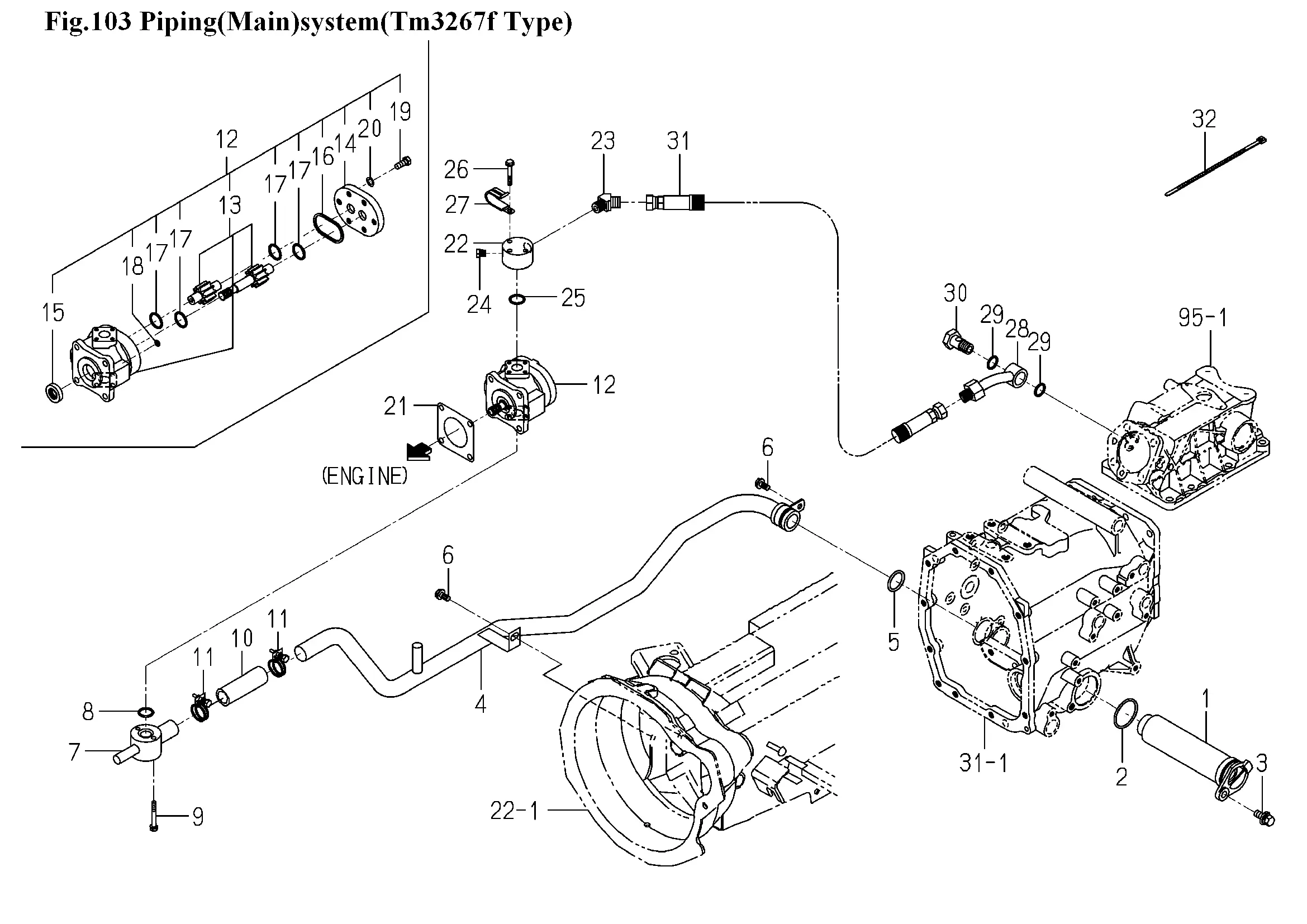

Hydraulikpumpe, -Leitungen
Ersatzteile (32 Teile)
1
FILTER/SUCTION ASSY
2
O-RING/1A,G45
3
V231-361-002-00
4
1774-508-210-10
5
O-RING/1A,P29
6
FLANGEBOLT/M8X16
7
PIPE/SUC/FRONT COMP
8
O-RING/1B,P20
9
BOLT,S/M6X50/7T
10
1550-508-001-20
11
CLAMP/WIRE/28-36
12
PUMP,GEAR ASSY
13
K135-012-100-00
14
COVER,PUMP
15
SEAL,OIL/TC14287
16
O-RING/1B,G50 HS90
17
O-RING/1B,P22
18
O-RING/1B,P6
19
K135-002-009-00
20
V401-170-008-00
21
PACKING,OIL PUMP
22
FLANGE
23
ADAPTER/45/R3/8XG3/
24
PLUG/SCREW/SEAL
25
O-RING/1B,P20
26
FLANGEBOLT/M6X40
27
3737-172-009-00
28
PIPE/DEL/REAR COMP
29
O-RING/1B,P18
30
ADAPTER/BOLT/G3/8
31
1775-508-550-10
32
1342-402-006-00
