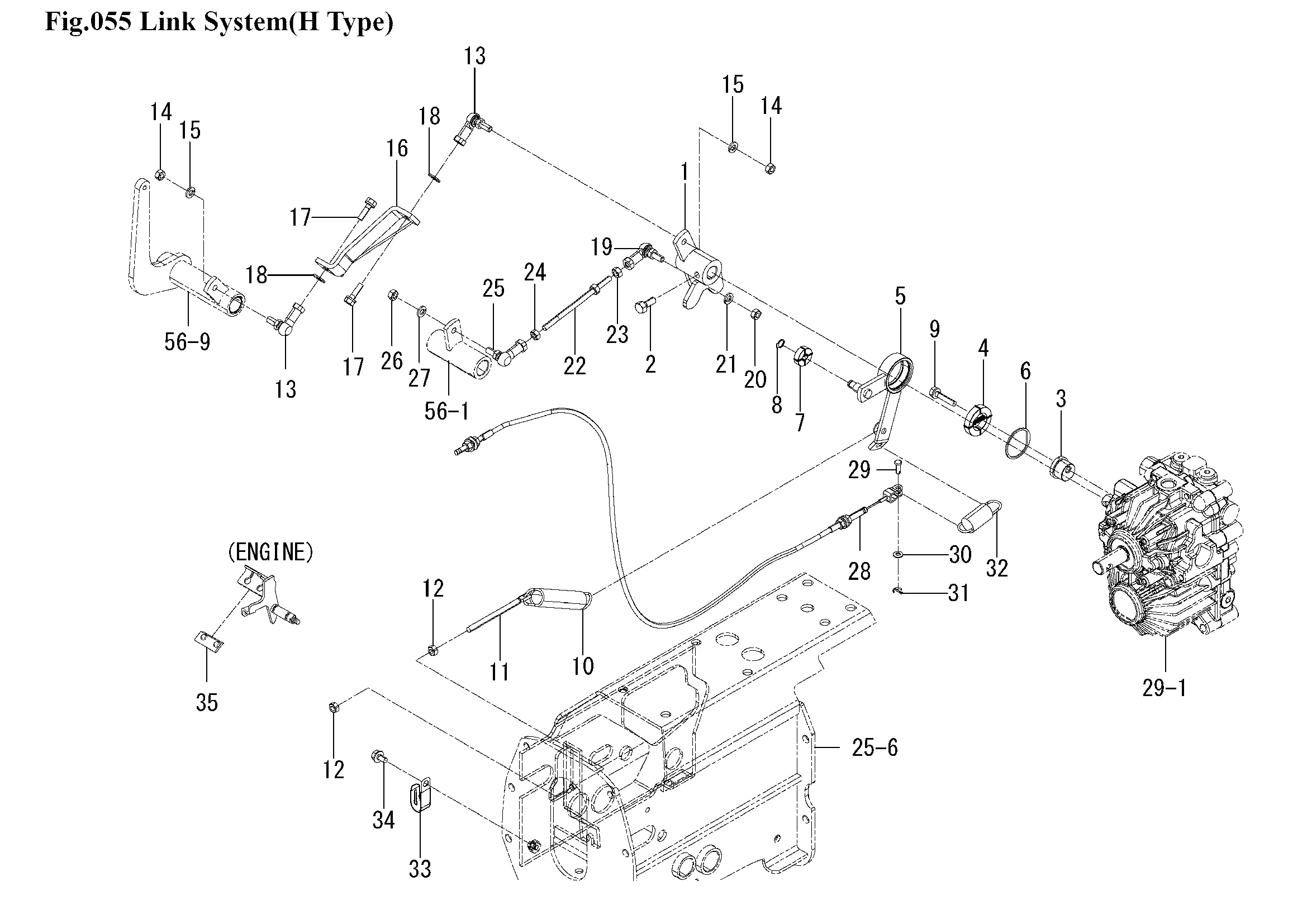

Betätigung, HST
Ersatzteile (35 Teile)
1
1855-271-500-10
2
BOLT/SM/M10X23
3
PIN/NEUTRAL
4
1774-271-002-00
5
1855-271-520-00
6
RING,SNAP/42 C
7
1774-271-003-00
8
RING,SNAP/10 C
9
V211-560-803-50
10
SPRING/HE136
11
1855-271-053-00
12
NUT/M8
13
1560-695-021-00
14
NUT/M8
15
WASHER,SP/M8
16
1855-271-540-10
17
BOLT,S/M8X25/7T
18
WASHER,PL/M8
19
1560-695-021-00
20
NUT/M8
21
WASHER,SP/M8
22
1855-271-530-00
23
NUT/M8
24
NUT/LH/M08
25
1560-695-022-00
26
NUT/M8
27
WASHER,SP/M8
28
CABLE/PEDAL ASSY
29
PIN/6X16
30
V411-260-006-00
31
PIN,SPLIT/2X20
32
SPRING/HE068
33
HOLDER/JE/9-9
34
V231-360-801-20
35
HOLDER
