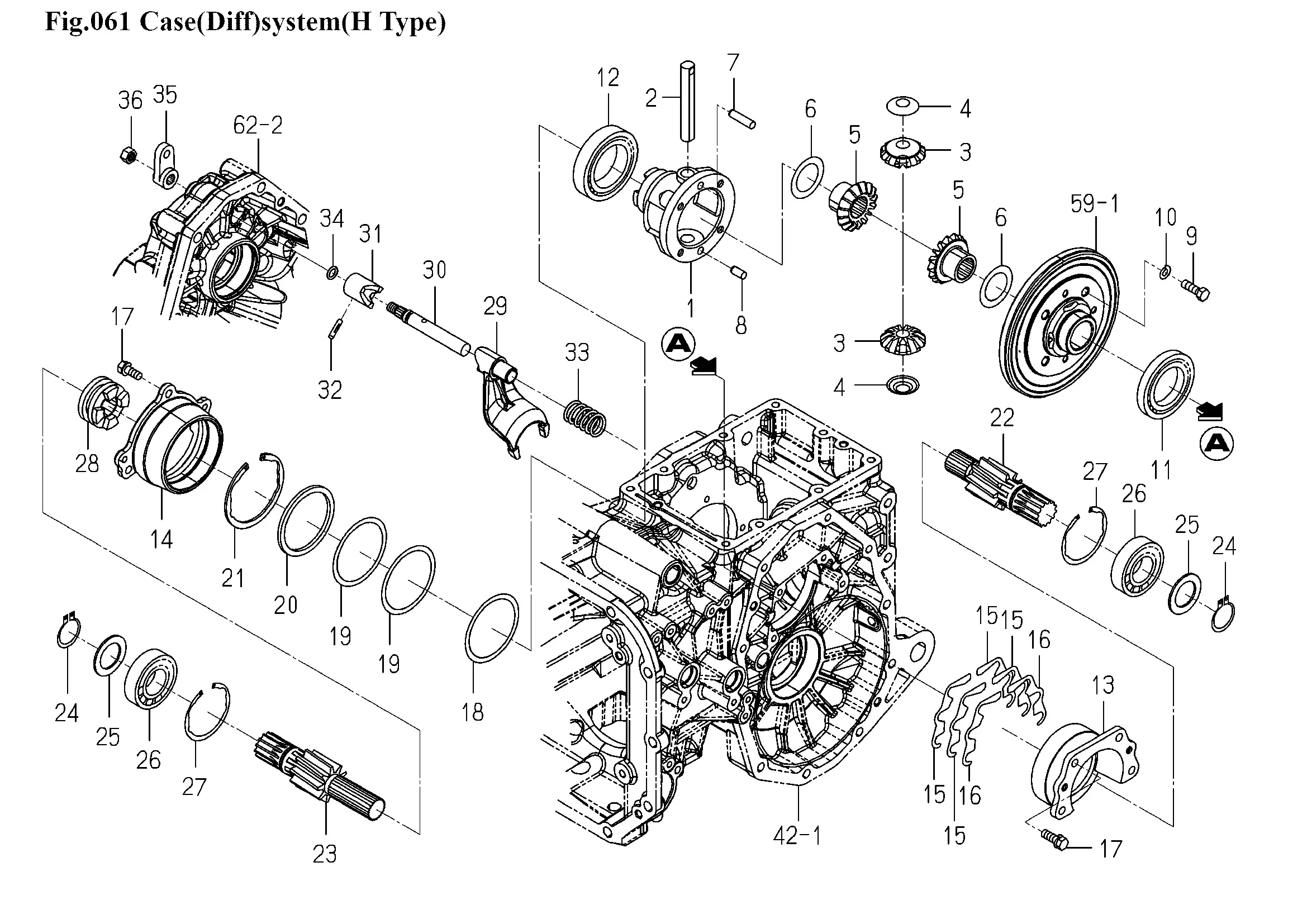

Differenzial, hinten
Ersatzteile (36 Teile)
1
CASE/DIFF
2
SHAFT,DIFF. PINION
3
PINION/BEVEL/12
4
1802-432-001-00
5
GEAR/BEVEL/14
6
COLLAR,THRUST
7
1672-301-002-00
8
PIN,ST,B/8X16
9
BOLT/M8X25
10
WASHER,SP/M8
11
BEARING/BALL
12
BEARING,RB/6010
13
METAL,DIFF-CASE LH
14
1855-304-003-00
15
1427-201-014-10
16
1427-201-015-10
17
BOLT,S/M8X25/7T
18
SHIM/0.2
19
SHIM/0.1
20
WASHER/68X80X02
21
RING,SNAP/R80
22
1855-304-001-00
23
1855-304-002-00
24
RING,SNAP/30 C
25
WASHER/36X46X02
26
BEARING/BALL
27
RING,SNAP/R62
28
1776-304-005-00
29
1774-304-019-20
30
STAY/SHIFTER
31
CAM/DIFFLOCK
32
V530-240-502-40
33
SPRING,PRESS/40
34
O-RING/1A,P10A
35
ARM/DIFF
36
1776-201-011-10
