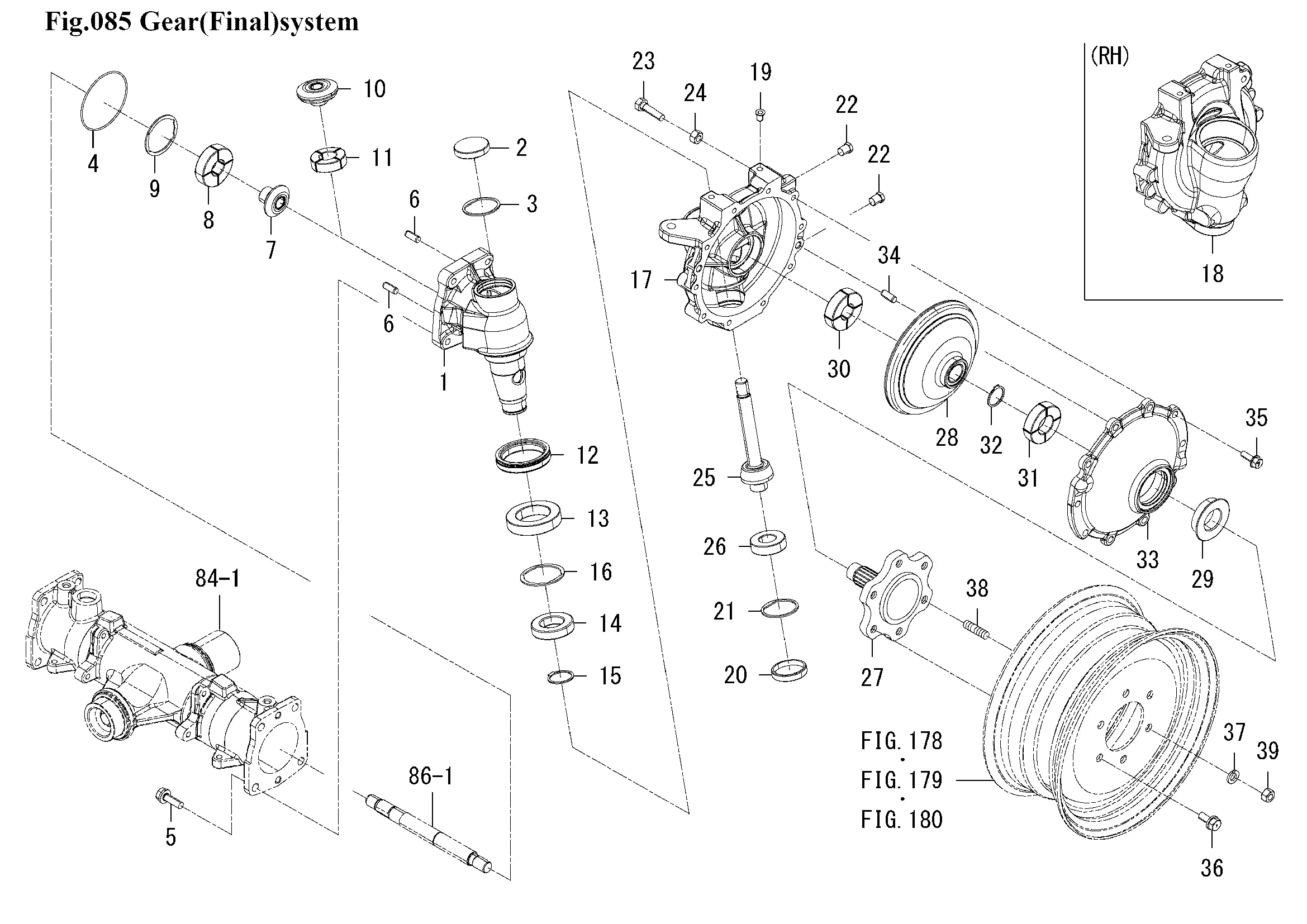

Vorderachsantrieb
Ersatzteile (39 Teile)
1
1774-434-003-20
2
SEAL/52
3
RING,SNAP/52 C
4
O-RING/1A,G90
5
BOLT,SEMS/M12X40/7T
6
PIN,ST,B/10X24
7
1774-434-008-10
8
BEARING,RB/6305
9
RING,SNAP/R62
10
GEAR/BEVEL/15
11
BEARING,RB/6205
12
1709-434-001-00
13
BEARING,RB/6010
14
BEARING/BALL
15
RING,SNAP/35 C
16
RING,SNAP/R62
17
CASE/FINAL/LH
18
1774-434-002-20
19
1427-120-002-10
20
SEAL/52
21
RING,SNAP/52 C
22
PLUG/SCREW/SEAL
23
BOLT/M12X40/7T
24
V304-460-012-00
25
GEAR/BEVEL/08
26
BEARING,RB/6205
27
SHAFT/WHEEL
28
GEAR/BEVEL/41
29
SEAL/QLNY35571116
30
BEARING,RB/6305
31
BEARING,RB/6206
32
RING,SNAP/30 C
33
COVER/WHEEL
34
PIN,ST,B/10X24
35
V231-361-002-50
36
6901-931-225-00
37
WASHER,SP/M12
38
STUD/M12X25/7T
39
V304-460-012-00
