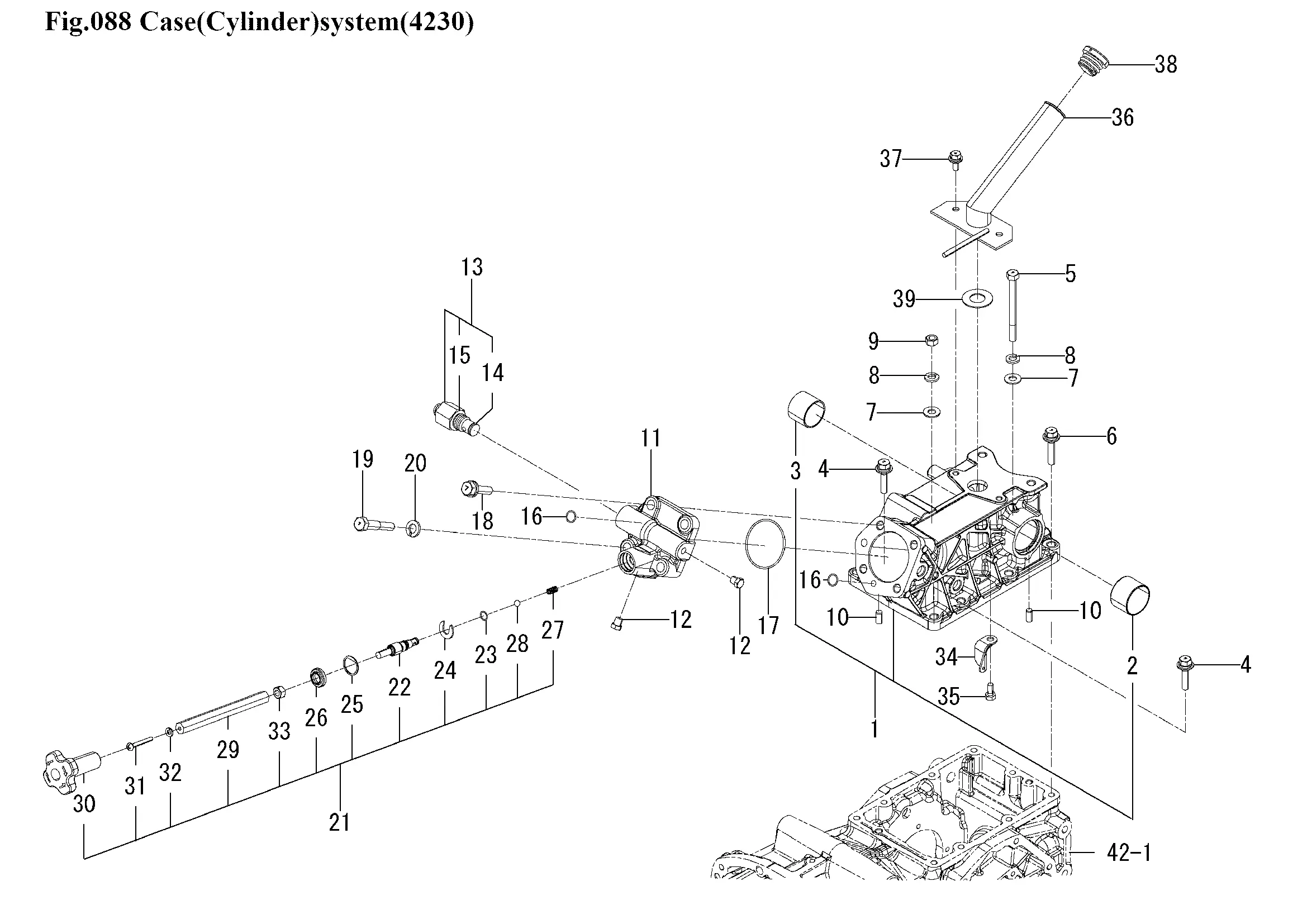

Gehäuse, Heckhydraulik
Ersatzteile (39 Teile)
1
CASE/CYLINDERASSY
2
BUSH/40X43X30
3
BUSH/35X39X30
4
BOLT,SP/M10X40/7T
5
V201-361-010-00
6
V211-661-004-50
7
V411-260-010-00
8
WASHER,SP/M10
9
V304-460-010-00
10
PIN,ST,A/8X18
11
1774-501-001-10
12
PLUG/SCREW/SEAL
13
K250-001-000-10
14
O-RING/1B,P12
15
K250-001-009-00
16
O-RING/1B,P12
17
O-RING/1B,G60
18
BOLT,SEMS/M12X40/7T
19
V201-361-206-00
20
WASHER,SP/M12
21
1855-501-220-00
22
SHAFT/SLOWRETURN
23
O-RING/1B,P10
24
PLATE/STOPPER
25
RING,SNAP/25 C
26
SEAL/DUST
27
SPRING/HC015
28
TEELBALL
29
1796-508-001-00
30
KNOB
31
SCREW/M6X40
32
V401-160-006-00
33
NUT/M10
34
HOOK,SPRING
35
BOLT/M8X16
36
1855-501-210-10
37
BOLT,SP/M8X20
38
CAP/OIL/30
39
PACKING/RUBBER
