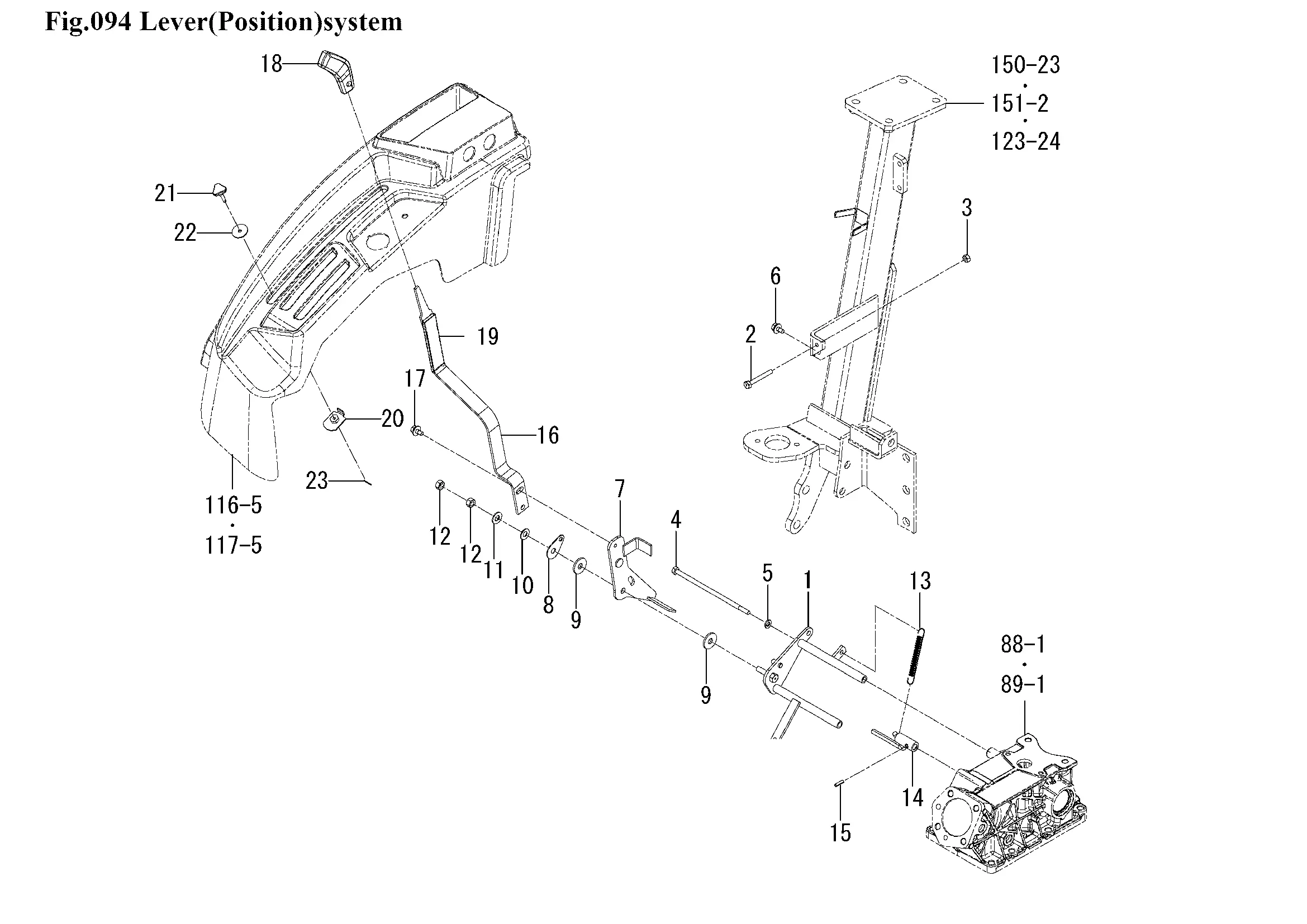

Hebel, Heckhydraulik
Ersatzteile (23 Teile)
1
1774-505-210-20
2
W201-360-805-50
3
NUT/M8
4
BOLT/M8X175
5
WASHER,SP/M8
6
BOLT,SP/M8X16
7
1855-505-210-00
8
PLATE
9
1596-512-002-10
10
SPRING/WASHER
11
V411-260-010-00
12
NUT/M10
13
SPRING,TENSION/53
14
ARM/POSITION COMP
15
PIN,SPRING/5X18 W
16
1855-505-001-00
17
BOLT,SP/M8X16
18
GRIP/03X17X97
19
INSULATOR/120
20
PLATE/STOP COMP
21
1690-608-003-10
22
WASHER/06X28X02
23
PIN,SPLIT/1.6X15
