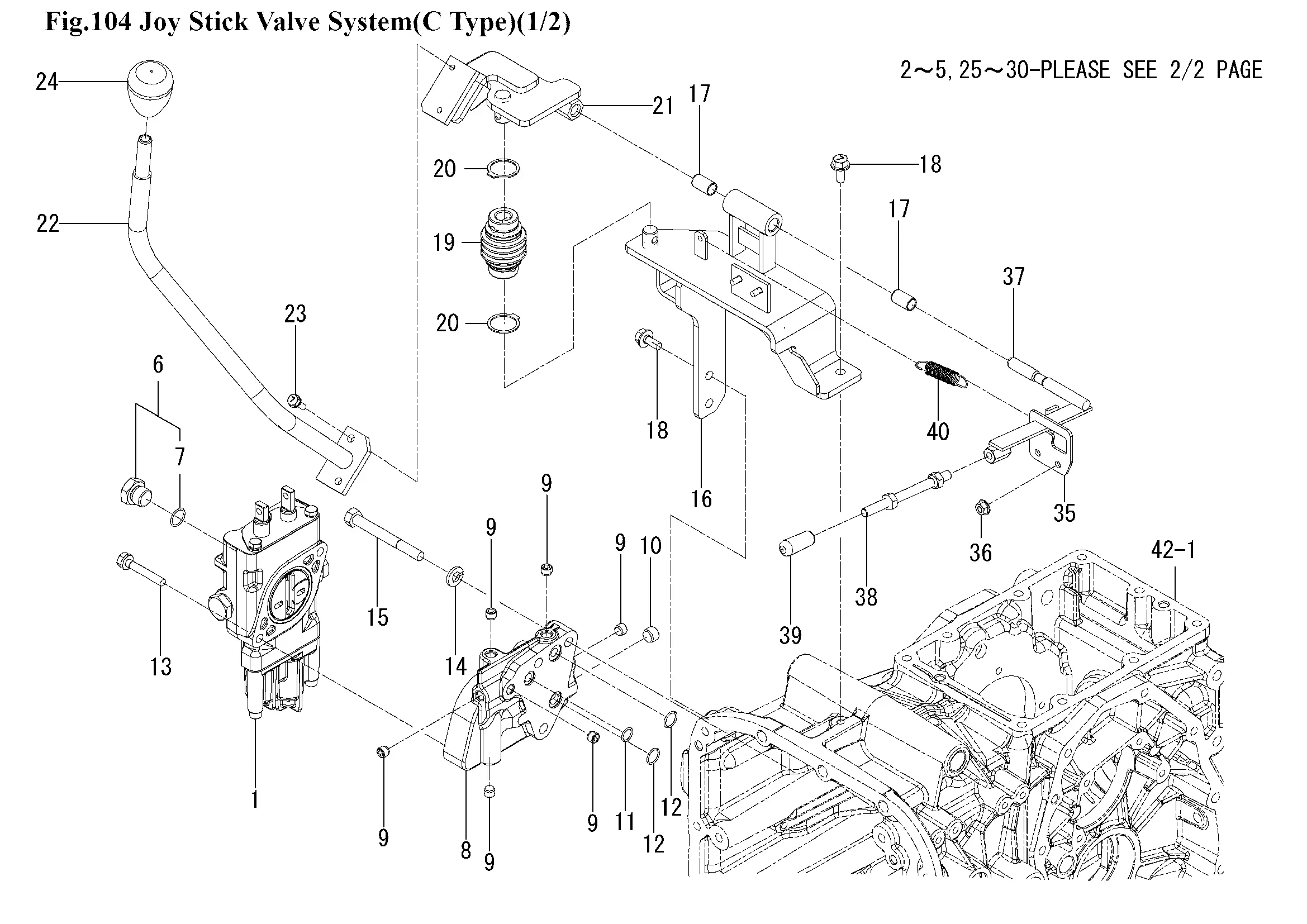

Joy Stick , Ventile
Ersatzteile (43 Teile)
1
1855-512-520-00
2
1836-512-421-00
3
1836-512-422-00
4
1836-512-423-00
5
1836-512-424-00
6
PLUG/G3/8 ASSY
7
O-RING/1B,P14
8
1855-512-004-00
9
PLUG/SCREW/SEAL
10
PLUG/SCREW/SEAL
11
O-RING/1B,P10A
12
O-RING/1B,P12
13
V211-260-804-50
14
WASHER,SP/M10
15
V201-261-008-00
16
1855-512-370-10
17
BUSH/10X12X20
18
FLANGEBOLT/M8X16
19
JOINT ASSY
20
RING,SNAP/25 C
21
1855-512-230-10
22
1855-512-380-10
23
BOLT,S/M6X16/7T
24
GRIP
25
1560-695-021-00
26
Kombimutter-M8
27
NUT/LH/M08
28
TURNBUCKLE/M8
29
NUT/M8
30
1855-512-280-00
31
1855-512-290-00
32
1855-512-650-00
33
PIN/06X19
34
PIN,SPLIT/2X20
35
1855-512-008-10
36
NUT/WASHER/M6
37
1855-512-460-10
38
1855-512-480-10
39
GRIP,LEVER
40
SPRING/HE053
41
1855-512-003-10
42
1855-512-006-00
43
1855-512-011-00
