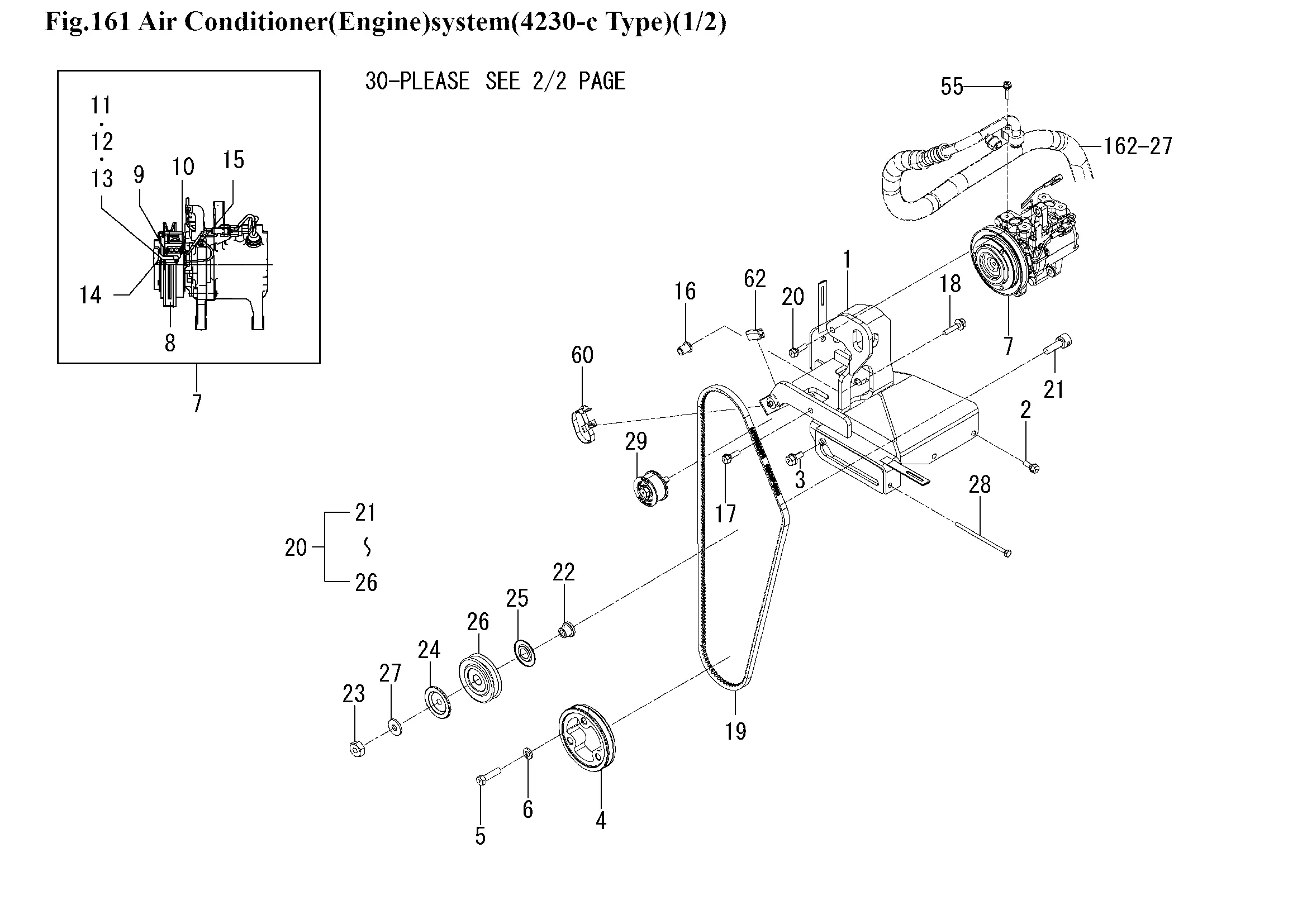

Kabine, Klimaanlage, Kompressor, Keilriemen
Ersatzteile (63 Teile)
1
1855-780-500-10
2
V211-560-803-50
3
BOLT,SEMS/M10X20,7T
4
PULLY/V/HM/104
5
V203-361-003-50
6
WASHER,SP/M10
7
COMPRESSOR ASSY
8
1817-780-252-00
9
1716-780-303-00
10
1716-780-304-00
11
1716-780-305-00
12
1716-780-306-00
13
1716-780-307-00
14
1716-780-308-00
15
1716-780-309-00
16
1716-780-001-00
17
BOLT,S/M8X25/7T
18
V211-660-803-50
19
BELT/VCOG/HM/50
20
1801-780-300-00
21
1801-780-011-00
22
COLLAR
23
1801-780-013-00
24
1801-780-014-00
25
1801-780-015-00
26
PULLEY/VA076
27
V411-260-010-00
28
BOLT/M06X110
29
PULLEY/FT/45X20 SET
30
CONDENSER ASSY
31
1757-780-003-00
32
1757-780-002-00
33
WASHER/6X24X2
34
V210-260-603-00
35
RECEIVER/DRYER ASSY
36
1729-780-250-10
37
V210-360-602-00
38
1716-780-006-00
39
JOINT/RECEIVER ASSY
40
O-RING
41
V210-360-602-50
42
1855-780-220-00
43
O-RING
44
V210-260-602-50
45
1855-780-230-00
46
1729-780-512-00
47
O-RING
48
PLUG
49
BOLT,SP/M6X30
50
V210-360-602-50
51
1729-780-001-00
52
FLANGEBOLT/M6X12
53
1757-780-004-00
54
NUT/WASHER/M6
55
V210-360-602-50
56
1829-780-003-00
57
1829-780-004-10
58
1800-780-007-00
59
CLIP/HOSE/18-22
60
1560-666-004-00
61
1342-402-006-00
62
TRIM/30
63
BAND,WIRE/140
