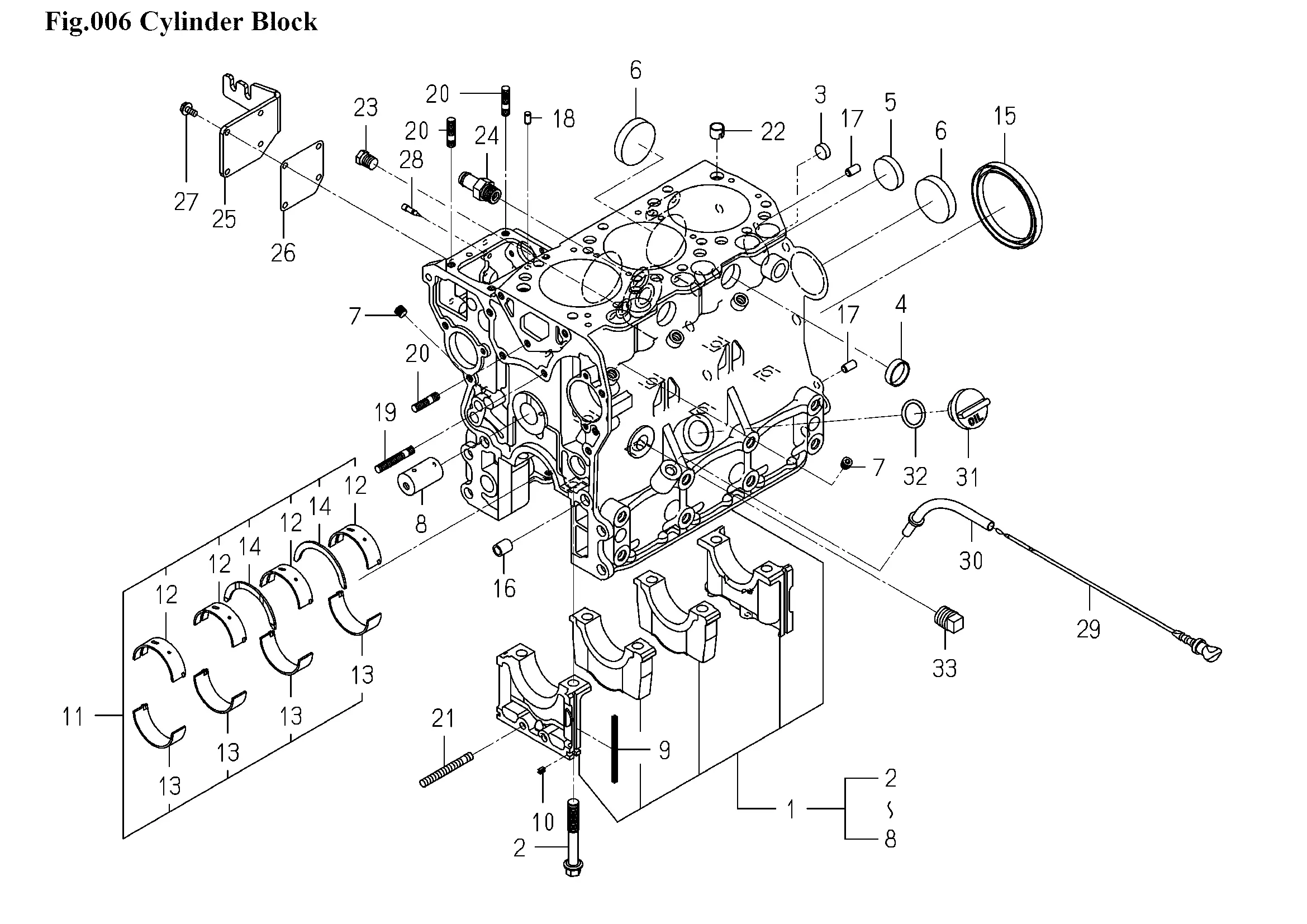

Motorblock, KW-Lagerung
Ersatzteile (33 Teile)
1
6211-210-129-00
2
BOLT
3
CUP/SEALING/16
4
CUP/SEALING/28
5
CUP/SEALING/36
6
CUP/SEALING/50
7
6209-605-007-10
8
PIN/IDLEGEAR
9
SEAL,BEARING CAP
10
SEAL,BEARING CAP/7
11
BEARING/CRANK SET
12
BEARING/CRANK/UPPER
13
BEARING/CRANK/LOWER
14
BEARING/THRUST/CRANK
15
OILSEAL
16
6209-749-001-30
17
PIN/STRAIGHT
18
6209-740-005-00
19
STUD/M8X40
20
STUD
21
STUD/M8X60/7T
22
DOWEL
23
PLUG/SCREW/SEAL
24
PIPE/WATER/HOUSING
25
6211-291-038-00
26
6211-292-009-00
27
FLANGEBOLT/M6X12
28
PIN
29
6211-760-032-20
30
GUIDE/LEVELGAGE COMP
31
6211-751-002-10
32
O-RING/1A,P25
33
PLUG/SCREW,SEAL
