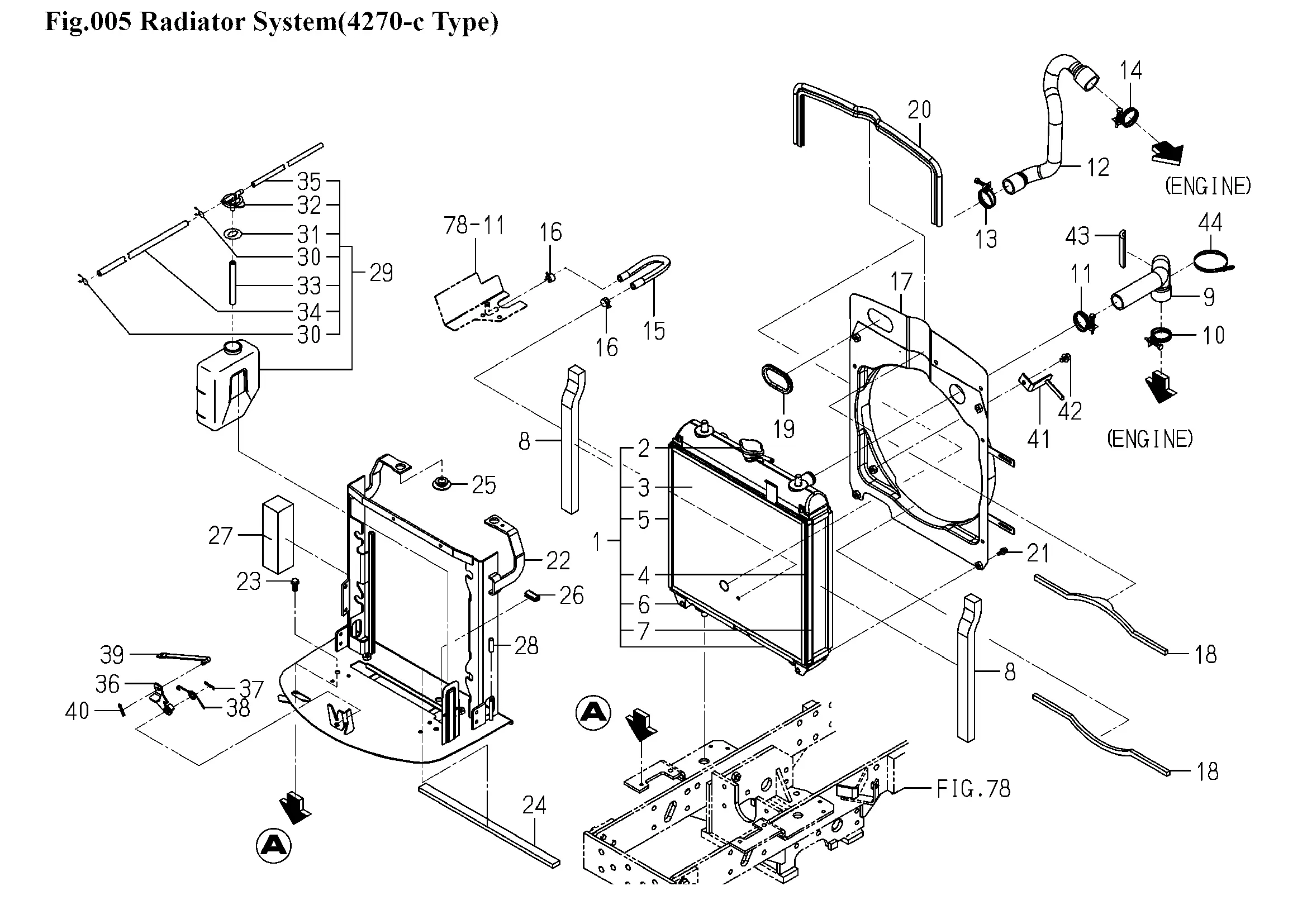

Kühler
Ersatzteile (44 Teile)
1
RADIATOR/390X35 ASSY
2
CAP
3
PROTECTOR
4
GUIDE/RH
5
GUIDE/LH
6
SCREW/P
7
PACKING
8
INSULATOR/20X350
9
1766-102-002-00
10
J061-234-042-00
11
J061-230-038-00
12
HOSE/RADIATOR/OUTLET
13
J061-230-038-00
14
J061-234-042-00
15
HOSE/270
16
CLIP/HOSE/14.7-15.9
17
1855-102-270-00
18
INSULATOR
19
TRIM/188
20
INSULATOR/700
21
V210-360-602-00
22
1855-102-220-10
23
FLANGEBOLT/M8X16
24
INSULATOR
25
BUSH,LEVER
26
TRIM/30
27
1855-102-006-00
28
TUBE/07X09X30
29
RESERVETANK ASSY
30
CLAMP
31
PACKING
32
CAP
33
1716-102-281-00
34
HOSE/RUBBER
35
6221-408-011-00
36
1855-102-240-10
37
PIN/SNAP
38
SPRING/HT020
39
1855-102-004-10
40
PIN/SNAP
41
1855-102-300-10
42
BOLT,SP/M8X16
43
1756-201-001-00
44
1342-402-006-00
