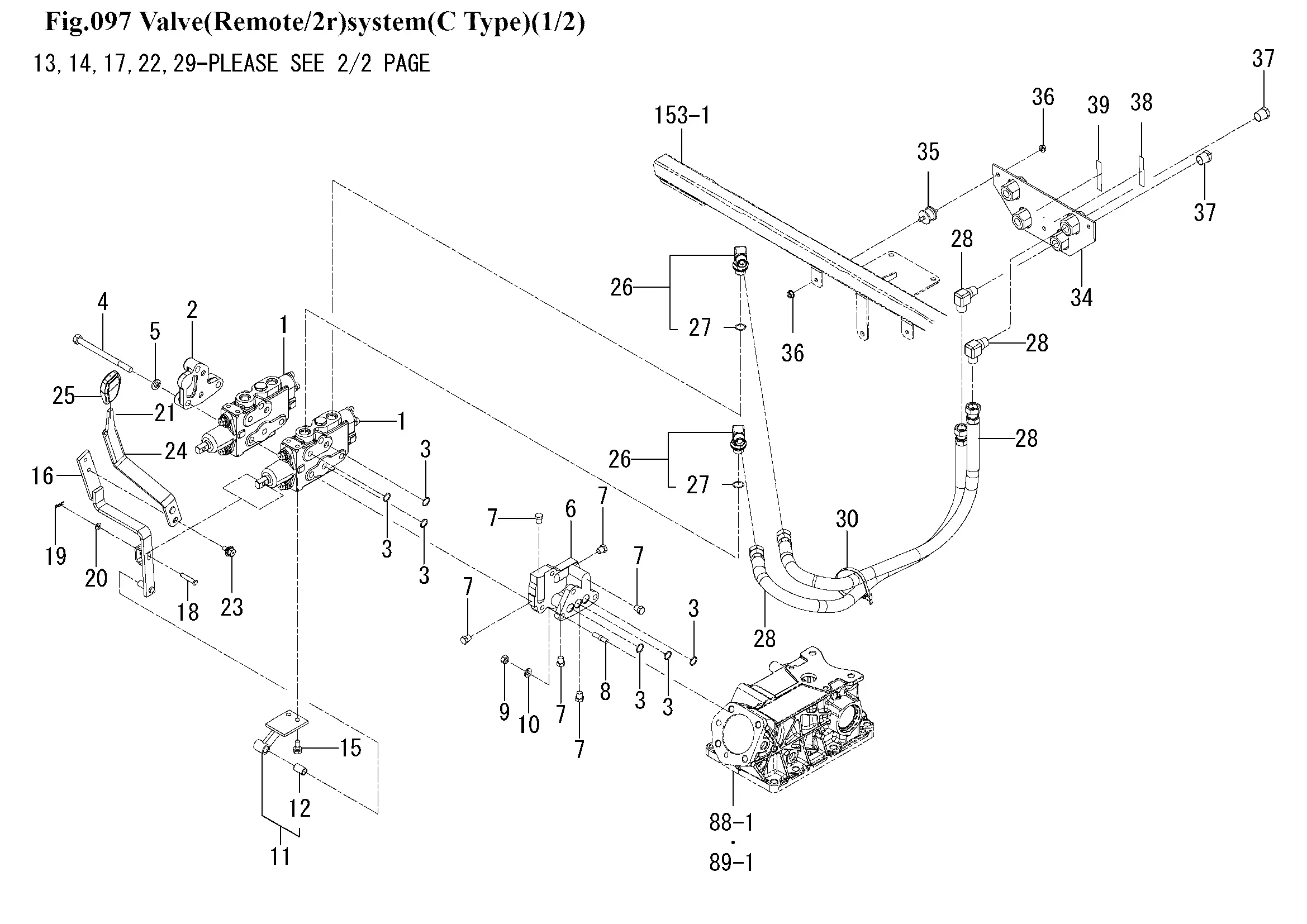

Steuerventile, Heckhydraulik
Ersatzteile (40 Teile)
1
VALVE/CONTROL/114
2
COVER
3
O-RING/1B,P12
4
BOLT/M10X120
5
WASHER,SP/M10
6
METAL/AUX/VALVE
7
PLUG/SCREW/SEAL
8
STUD/M8X20,SEAL
9
NUT/M8/7T
10
WASHER,SP/M8
11
1774-507-410-00
12
BUSH/10X12X20
13
HOLDER/2ND ASSY
14
BUSH/10X12X20
15
V211-260-801-60
16
1855-507-210-00
17
1855-507-220-00
18
PIN/06X31
19
PIN/SNAP
20
V411-260-006-00
21
1855-507-310-00
22
1855-507-320-00
23
BOLT,SP/M8X16
24
INSULATOR/LEVER/SUB
25
GRIP/03X17X74
26
ADAPTER/L/G3/8 ASSY
27
O-RING/1B,P14
28
1848-512-220-00
29
1855-507-280-00
30
1342-402-006-00
31
1855-507-230-10
32
BOLT,SP/M8X16
33
ADAPTER/90
34
1855-507-710-00
35
3737-156-009-00
36
NUT/WASHER/M6
37
PLUG/SCREW/SEAL
38
1817-512-002-10
39
1817-512-003-10
40
LABEL/SUBCON
