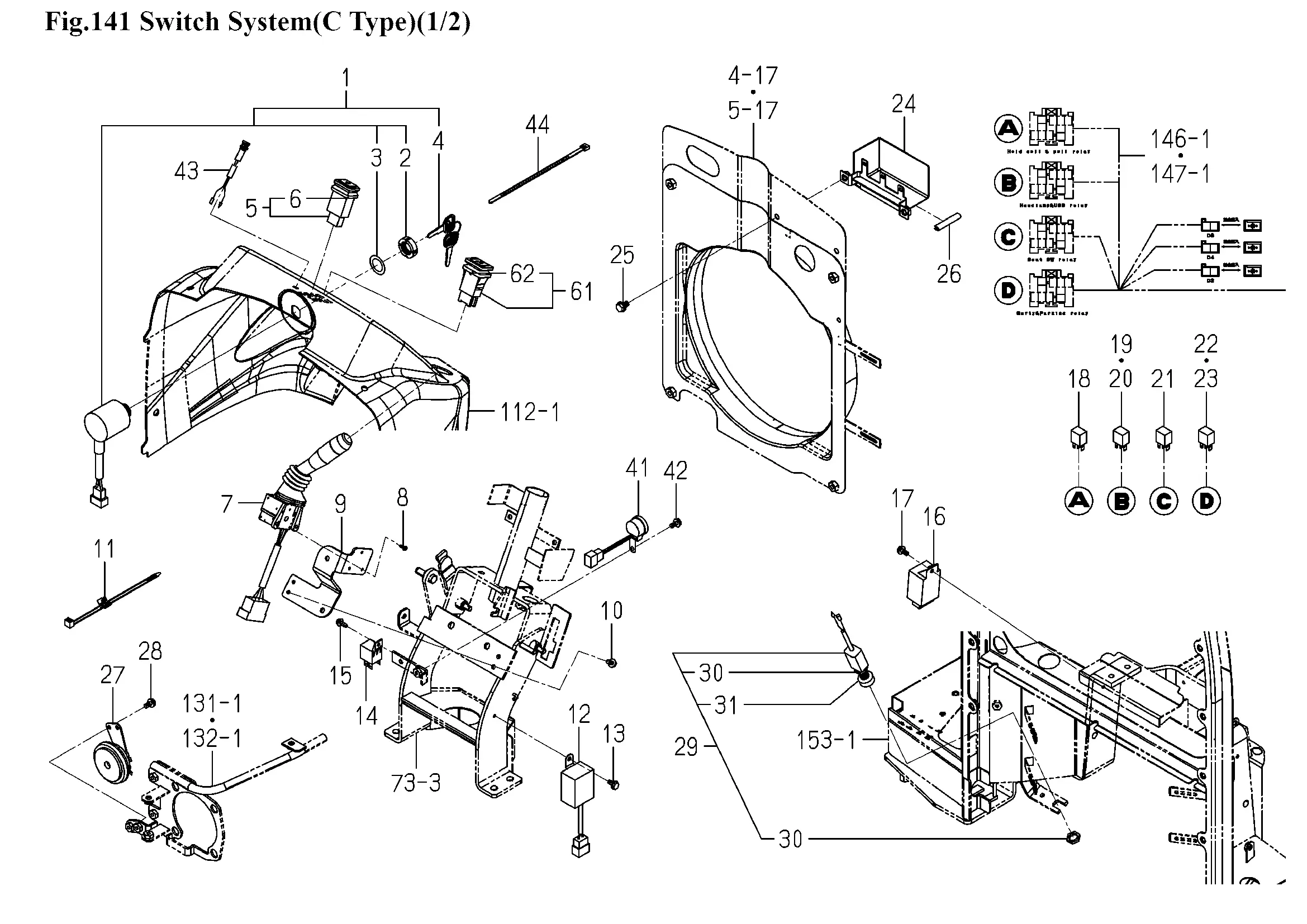

Schalter, Elektrik
Ersatzteile (85 Teile)
1
1746-652-310-10
2
RINGNUT
3
1729-652-273-00
4
KEY
5
SWITCH/HAZARD ASSY
6
BULB/LAMP/14V60MA
7
1774-680-260-00
8
1772-652-001-00
9
1855-680-007-00
10
FLANGEBOLT/M6X12
11
1560-666-004-00
12
UNIT/TIMER ASSY
13
FLANGEBOLT/M6X12
14
RELAY/35A ASSY
15
V120-365-001-60
16
1855-680-300-00
17
FLANGEBOLT/M6X12
18
1789-695-330-00
19
1789-695-330-00
20
1789-695-330-00
21
1789-695-330-00
22
1789-695-330-00
23
1789-695-330-00
24
1855-680-260-10
25
V231-360-801-20
26
INSULATOR
27
1740-680-530-20
28
FLANGEBOLT/M6X12
29
1772-654-280-10
30
1772-654-281-00
31
BOOT
32
1740-680-520-10
33
V210-360-601-20
34
1855-680-008-10
35
V231-360-801-20
36
1560-666-004-00
37
SWITCH ASSY
38
ACTUATOR ASSY
39
SCREW/M03X20
40
PLATE,SWITCH
41
BUZZER ASSY
42
FLANGEBOLT/M6X12
43
LAMP/LED ASSY
44
1342-402-006-00
45
1773-654-240-10
46
V210-360-601-20
47
1855-680-250-10
48
Kombimutter-M8
49
1560-666-004-00
50
1740-680-520-10
51
V210-360-601-20
52
1855-680-002-00
53
V231-360-801-20
54
1560-666-004-00
55
1716-680-330-10
56
ARM
57
1560-666-004-00
58
V210-360-601-20
59
1855-680-009-10
60
V231-360-801-20
61
SWITCH/BEACON ASSY
62
BULB/LAMP/14V60MA
63
SOCKET/12V ASSY
64
1855-680-310-00
65
SWITCH ASSY
66
SWITCH ASSY
67
ACTUATOR ASSY
68
3883-221-001-00
69
1855-680-004-10
70
BOLT,SP/M8X20
71
1560-666-004-00
72
SWITCH/PTO ASSY
73
SWITCH/ROTARY/3 ASSY
74
Drehknopf
75
SWITCH/PTO/STATIONAL
76
COLLAR
77
1848-654-290-00
78
1848-654-002-00
79
V210-360-601-20
80
SWITCH ASSY
81
ACTUATOR ASSY
82
SCREW,SP/M3X16
83
1855-680-011-00
84
V231-360-801-20
85
1560-666-004-00
