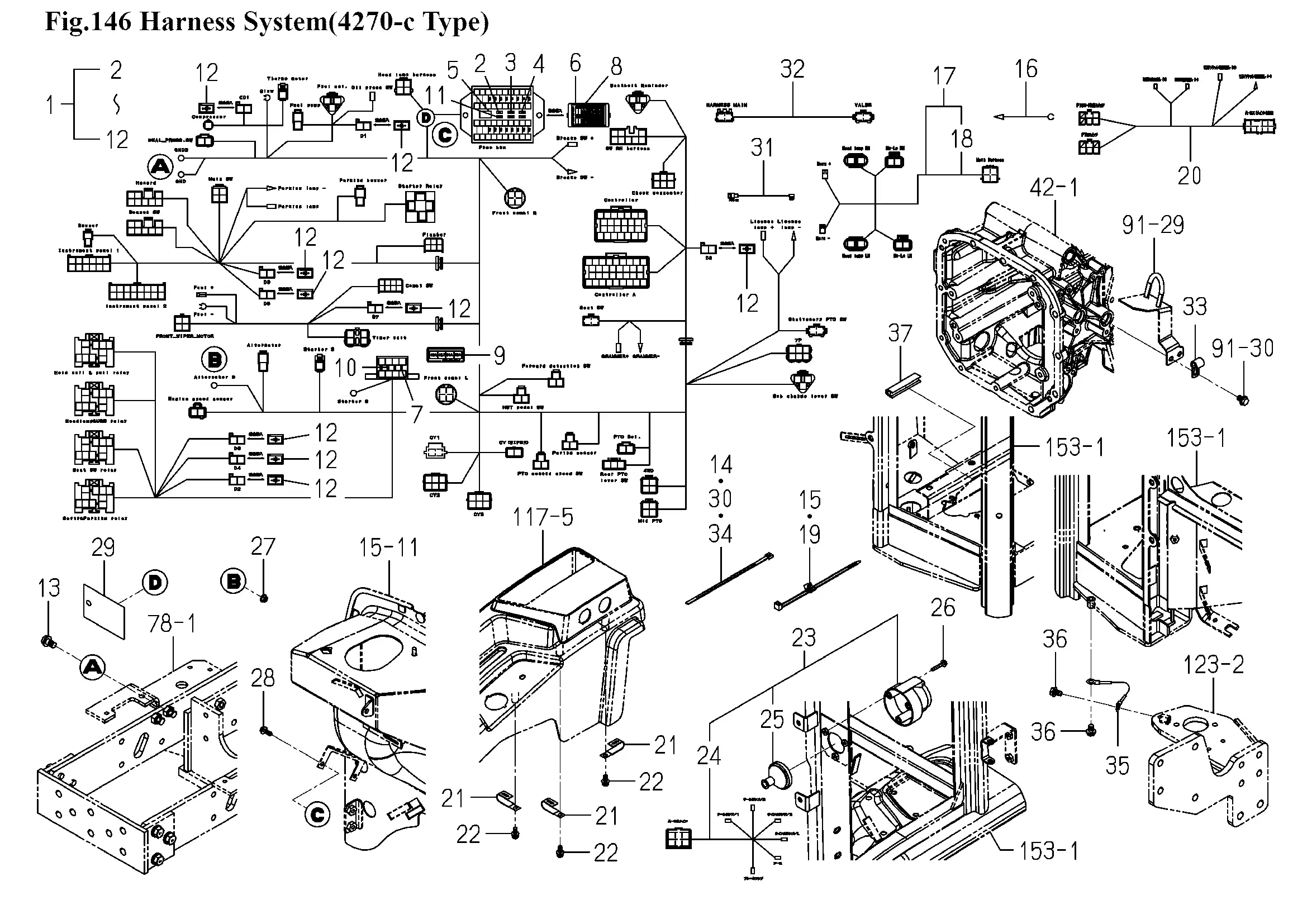

Hauptkabelbaum
Ersatzteile (37 Teile)
1
1855-690-600-30
2
FUSE/BLADE/32V05A
3
FUSE/BLADE/32V10A
4
FUSE/BLADE/32V15A
5
TOOL/FUSE
6
COVER/FUSE
7
FUSE/SLOW BLOW/40A
8
1855-690-503-00
9
1855-690-603-00
10
FUSE/SLOW BLOW/60A
11
FUSE/BLADE/32V20A
12
DIODE
13
V231-361-001-60
14
BAND,WIRE/140
15
1560-666-004-00
16
1600-624-004-10
17
1855-690-800-00
18
1855-690-801-00
19
1560-666-004-00
20
HARNESS/SW/H/RH/E4
21
CLAMP,WINKER B
22
SCREW,SP/M6X16
23
HARNESS/TRAILER/E4
24
1807-652-510-00
25
1650-654-036-00
26
V120-265-003-00
27
NUT/WASHER/M6
28
BOLT,SP/M6X16
29
1825-690-001-00
30
BAND,WIRE/140
31
HARNESS/JOINT/THERMO
32
1855-690-620-00
33
HOLDER/10
34
1342-402-006-00
35
1790-650-260-00
36
V231-360-801-20
37
TRIM/70
