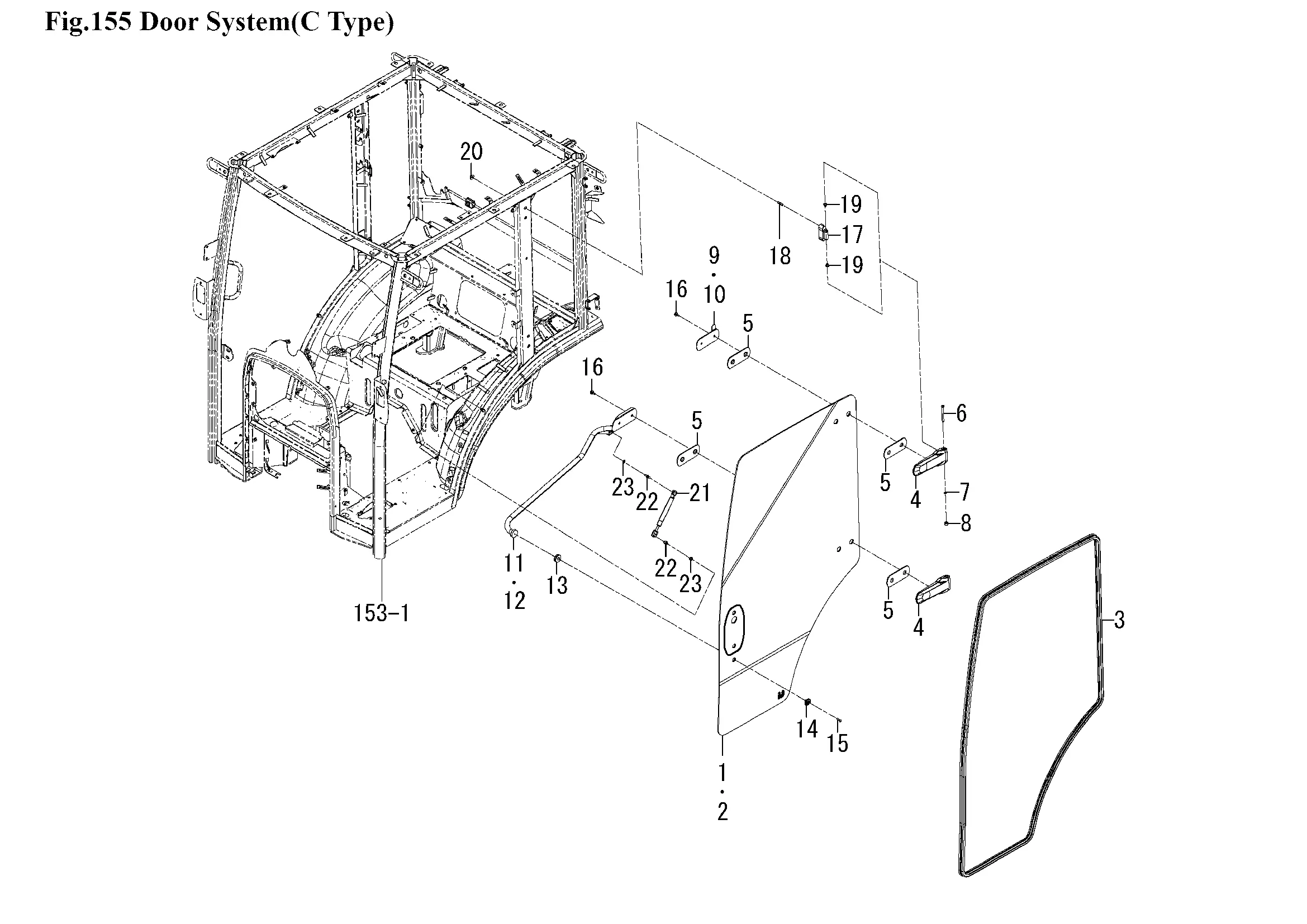

Türen, Kabine
Ersatzteile (23 Teile)
1
GLASS/DOOR/LH
2
GLASS/DOOR/RH
3
1800-730-001-30
4
1790-730-004-20
5
GROMMET/19X21X03
6
PIN/08X83
7
RING,RETANING/E07
8
CAP
9
PLATE/LH COMP
10
PLATE/RH COMP
11
FRAME/DOOR/LH COMP
12
FRAME/DOOR/RH COMP
13
GROMMET/15X17X05
14
1719-730-001-10
15
SCREW/TRUSS/M06X25
16
BOLT,SP/M8X20
17
1810-730-004-10
18
STUD
19
BUSH/08X15X11
20
V363-260-008-00
21
DAMPER/285/100N ASSY
22
STUD/BALL/M08
23
WASHER,SP/M8
